Gtk::Alignment Class Reference
[Widgets, Container Widgets]
A widget which controls the alignment and size of its child. More...

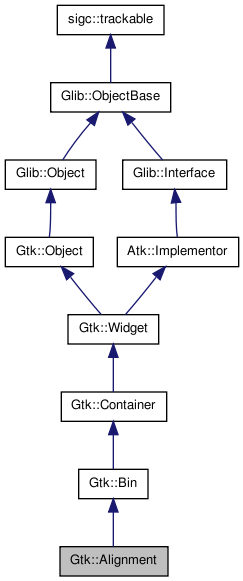

Inherits Gtk::Bin.
Public Member Functions | |
| virtual | ~Alignment () |
| GtkAlignment* | gobj () |
| Provides access to the underlying C GtkObject. | |
| const GtkAlignment* | gobj () const |
| Provides access to the underlying C GtkObject. | |
| Alignment (float xalign=0.5, float yalign=0.5, float xscale=1.0, float yscale=1.0) | |
| Constructor to create an Alignment object. | |
| Alignment (AlignmentEnum xalign, AlignmentEnum yalign=Gtk::ALIGN_CENTER, float xscale=1.0, float yscale=1.0) | |
| Constructor to create an Alignment object. | |
| void | set (float xalign=0.5, float yalign=0.5, float xscale=1.0, float yscale=1.0) |
| Sets the Alignment values. | |
| void | set (AlignmentEnum xalign, AlignmentEnum yalign=Gtk::ALIGN_CENTER, float xscale=1.0, float yscale=1.0) |
| Sets the Alignment values. | |
| void | set_padding (guint padding_top, guint padding_bottom, guint padding_left, guint padding_right) |
| Sets the padding on the different sides of the widget. | |
| void | get_padding (guint& padding_top, guint& padding_bottom, guint& padding_left, guint& padding_right) |
| Gets the padding on the different sides of the widget. | |
| Glib::PropertyProxy< float > | property_xalign () |
| Horizontal position of child in available space. | |
| Glib::PropertyProxy_ReadOnly < float > | property_xalign () const |
| Horizontal position of child in available space. | |
| Glib::PropertyProxy< float > | property_yalign () |
| Vertical position of child in available space. | |
| Glib::PropertyProxy_ReadOnly < float > | property_yalign () const |
| Vertical position of child in available space. | |
| Glib::PropertyProxy< float > | property_xscale () |
| If available horizontal space is bigger than needed for the child. | |
| Glib::PropertyProxy_ReadOnly < float > | property_xscale () const |
| If available horizontal space is bigger than needed for the child. | |
| Glib::PropertyProxy< float > | property_yscale () |
| If available vertical space is bigger than needed for the child. | |
| Glib::PropertyProxy_ReadOnly < float > | property_yscale () const |
| If available vertical space is bigger than needed for the child. | |
| Glib::PropertyProxy< guint > | property_top_padding () |
| The padding to insert at the top of the widget. | |
| Glib::PropertyProxy_ReadOnly < guint > | property_top_padding () const |
| The padding to insert at the top of the widget. | |
| Glib::PropertyProxy< guint > | property_bottom_padding () |
| The padding to insert at the bottom of the widget. | |
| Glib::PropertyProxy_ReadOnly < guint > | property_bottom_padding () const |
| The padding to insert at the bottom of the widget. | |
| Glib::PropertyProxy< guint > | property_left_padding () |
| The padding to insert at the left of the widget. | |
| Glib::PropertyProxy_ReadOnly < guint > | property_left_padding () const |
| The padding to insert at the left of the widget. | |
| Glib::PropertyProxy< guint > | property_right_padding () |
| The padding to insert at the right of the widget. | |
| Glib::PropertyProxy_ReadOnly < guint > | property_right_padding () const |
| The padding to insert at the right of the widget. | |
Related Functions | |
(Note that these are not member functions.) | |
| Gtk::Alignment* | wrap (GtkAlignment* object, bool take_copy=false) |
| A Glib::wrap() method for this object. | |
Detailed Description
A widget which controls the alignment and size of its child.
Normally, a widget is allocated at least as much size as it requests, and, most widgets expand to fill any extra allocated space, but sometimes this behavior is not desired. The alignment widget allows the programmer to specify how a widget should expand and position itself to fill the area it is allocated.
It has four settings: xscale, yscale, xalign, and yalign: The scale settings specify how much the child widget should expand to fill the space allocated to the Gtk::Alignment. The values can range from 0 (meaning the child doesn't expand at all) to 1 (meaning the child expands to fill all of the available space). The align settings place the child widget within the available area. The values range from 0 (top or left) to 1 (bottom or right). Of course, if the scale settings are both set to 1, the alignment settings have no effect.
Constructor & Destructor Documentation
| virtual Gtk::Alignment::~Alignment | ( | ) | [virtual] |
| Gtk::Alignment::Alignment | ( | float | xalign = 0.5, |
|
| float | yalign = 0.5, |
|||
| float | xscale = 1.0, |
|||
| float | yscale = 1.0 | |||
| ) | [explicit] |
Constructor to create an Alignment object.
- Parameters:
-
xalign The initial horizontal alignment of the child. yalign The initial vertical alignment of the child. xscale The initial amount that the child expands horizontally to fill up unused space. yscale The initial amount that the child expands vertically to fill up unused space.
| Gtk::Alignment::Alignment | ( | AlignmentEnum | xalign, | |
| AlignmentEnum | yalign = Gtk::ALIGN_CENTER, |
|||
| float | xscale = 1.0, |
|||
| float | yscale = 1.0 | |||
| ) | [explicit] |
Constructor to create an Alignment object.
- Parameters:
-
xalign A Gtk::AlignmentEnum describing the initial horizontal alignment of the child. yalign A Gtk::AlignmentEnum describing the initial vertical alignment of the child. xscale The initial amount that the child expands horizontally to fill up unused space. yscale The initial amount that the child expands vertically to fill up unused space.
Member Function Documentation
| void Gtk::Alignment::get_padding | ( | guint & | padding_top, | |
| guint & | padding_bottom, | |||
| guint & | padding_left, | |||
| guint & | padding_right | |||
| ) |
Gets the padding on the different sides of the widget.
See set_padding().
- Parameters:
-
padding_top Location to store the padding for the top of the widget, or 0.padding_bottom Location to store the padding for the bottom of the widget, or 0.padding_left Location to store the padding for the left of the widget, or 0.padding_right Location to store the padding for the right of the widget, or 0.
| const GtkAlignment* Gtk::Alignment::gobj | ( | ) | const [inline] |
Provides access to the underlying C GtkObject.
Reimplemented from Gtk::Bin.
| GtkAlignment* Gtk::Alignment::gobj | ( | ) | [inline] |
Provides access to the underlying C GtkObject.
Reimplemented from Gtk::Bin.
| Glib::PropertyProxy_ReadOnly<guint> Gtk::Alignment::property_bottom_padding | ( | ) | const |
The padding to insert at the bottom of the widget.
You rarely need to use properties because there are get_ and set_ methods for almost all of them.
- Returns:
- A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.
| Glib::PropertyProxy<guint> Gtk::Alignment::property_bottom_padding | ( | ) |
The padding to insert at the bottom of the widget.
You rarely need to use properties because there are get_ and set_ methods for almost all of them.
- Returns:
- A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.
| Glib::PropertyProxy_ReadOnly<guint> Gtk::Alignment::property_left_padding | ( | ) | const |
The padding to insert at the left of the widget.
You rarely need to use properties because there are get_ and set_ methods for almost all of them.
- Returns:
- A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.
| Glib::PropertyProxy<guint> Gtk::Alignment::property_left_padding | ( | ) |
The padding to insert at the left of the widget.
You rarely need to use properties because there are get_ and set_ methods for almost all of them.
- Returns:
- A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.
| Glib::PropertyProxy_ReadOnly<guint> Gtk::Alignment::property_right_padding | ( | ) | const |
The padding to insert at the right of the widget.
You rarely need to use properties because there are get_ and set_ methods for almost all of them.
- Returns:
- A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.
| Glib::PropertyProxy<guint> Gtk::Alignment::property_right_padding | ( | ) |
The padding to insert at the right of the widget.
You rarely need to use properties because there are get_ and set_ methods for almost all of them.
- Returns:
- A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.
| Glib::PropertyProxy_ReadOnly<guint> Gtk::Alignment::property_top_padding | ( | ) | const |
The padding to insert at the top of the widget.
You rarely need to use properties because there are get_ and set_ methods for almost all of them.
- Returns:
- A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.
| Glib::PropertyProxy<guint> Gtk::Alignment::property_top_padding | ( | ) |
The padding to insert at the top of the widget.
You rarely need to use properties because there are get_ and set_ methods for almost all of them.
- Returns:
- A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.
| Glib::PropertyProxy_ReadOnly<float> Gtk::Alignment::property_xalign | ( | ) | const |
Horizontal position of child in available space.
0.0 is left aligned
You rarely need to use properties because there are get_ and set_ methods for almost all of them.
- Returns:
- A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.
| Glib::PropertyProxy<float> Gtk::Alignment::property_xalign | ( | ) |
Horizontal position of child in available space.
0.0 is left aligned
You rarely need to use properties because there are get_ and set_ methods for almost all of them.
- Returns:
- A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.
| Glib::PropertyProxy_ReadOnly<float> Gtk::Alignment::property_xscale | ( | ) | const |
If available horizontal space is bigger than needed for the child.
You rarely need to use properties because there are get_ and set_ methods for almost all of them.
- Returns:
- A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.
| Glib::PropertyProxy<float> Gtk::Alignment::property_xscale | ( | ) |
If available horizontal space is bigger than needed for the child.
You rarely need to use properties because there are get_ and set_ methods for almost all of them.
- Returns:
- A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.
| Glib::PropertyProxy_ReadOnly<float> Gtk::Alignment::property_yalign | ( | ) | const |
Vertical position of child in available space.
0.0 is top aligned
You rarely need to use properties because there are get_ and set_ methods for almost all of them.
- Returns:
- A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.
| Glib::PropertyProxy<float> Gtk::Alignment::property_yalign | ( | ) |
Vertical position of child in available space.
0.0 is top aligned
You rarely need to use properties because there are get_ and set_ methods for almost all of them.
- Returns:
- A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.
| Glib::PropertyProxy_ReadOnly<float> Gtk::Alignment::property_yscale | ( | ) | const |
If available vertical space is bigger than needed for the child.
You rarely need to use properties because there are get_ and set_ methods for almost all of them.
- Returns:
- A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.
| Glib::PropertyProxy<float> Gtk::Alignment::property_yscale | ( | ) |
If available vertical space is bigger than needed for the child.
You rarely need to use properties because there are get_ and set_ methods for almost all of them.
- Returns:
- A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.
| void Gtk::Alignment::set | ( | AlignmentEnum | xalign, | |
| AlignmentEnum | yalign = Gtk::ALIGN_CENTER, |
|||
| float | xscale = 1.0, |
|||
| float | yscale = 1.0 | |||
| ) |
Sets the Alignment values.
- Parameters:
-
xalign The horizontal alignment of the child of this Alignment, from 0 (left) to 1 (right). yalign The vertical alignment of the child of this Alignment, from 0 (top) to 1 (bottom). xscale The amount that the child expands horizontally to fill up unused space, from 0 to 1. A value of 0 indicates that the child widget should never expand. A value of 1 indicates that the child widget will expand to fill all the space allocated for the Alignment. yscale The amount that the child widget expands vertically to fill up unused space from 0 to 1. The values are similar to xscale.
| void Gtk::Alignment::set | ( | float | xalign = 0.5, |
|
| float | yalign = 0.5, |
|||
| float | xscale = 1.0, |
|||
| float | yscale = 1.0 | |||
| ) |
Sets the Alignment values.
- Parameters:
-
xalign The horizontal alignment of the child of this Alignment, from 0 (left) to 1 (right). yalign The vertical alignment of the child of this Alignment, from 0 (top) to 1 (bottom). xscale The amount that the child expands horizontally to fill up unused space, from 0 to 1. A value of 0 indicates that the child widget should never expand. A value of 1 indicates that the child widget will expand to fill all the space allocated for the Alignment. yscale The amount that the child widget expands vertically to fill up unused space from 0 to 1. The values are similar to xscale.
| void Gtk::Alignment::set_padding | ( | guint | padding_top, | |
| guint | padding_bottom, | |||
| guint | padding_left, | |||
| guint | padding_right | |||
| ) |
Sets the padding on the different sides of the widget.
The padding adds blank space to the sides of the widget. For instance, this can be used to indent the child widget towards the right by adding padding on the left.
- Parameters:
-
padding_top The padding at the top of the widget. padding_bottom The padding at the bottom of the widget. padding_left The padding at the left of the widget. padding_right The padding at the right of the widget.
Friends And Related Function Documentation
| Gtk::Alignment* wrap | ( | GtkAlignment * | object, | |
| bool | take_copy = false | |||
| ) | [related] |
A Glib::wrap() method for this object.
- Parameters:
-
object The C instance. take_copy False if the result should take ownership of the C instance. True if it should take a new copy or ref.
- Returns:
- A C++ instance that wraps this C instance.
The documentation for this class was generated from the following file:
- gtkmm/alignment.h
