Gtk::HScale Class Reference
[Widgets]

A horizontal slider for selecting values. More...

Inherits Gtk::Scale.

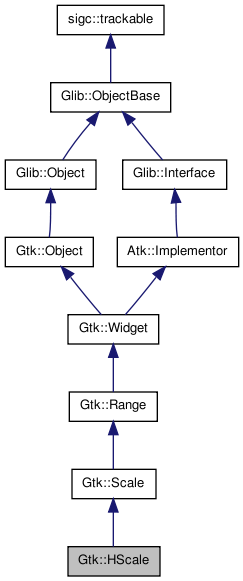

Collaboration diagram for Gtk::HScale:

[legend]

List of all members.

Public Member Functions
virtual	~HScale ()
GtkHScale*	gobj ()
	Provides access to the underlying C GtkObject.
const GtkHScale*	gobj () const
	Provides access to the underlying C GtkObject.
	HScale ()
	HScale (double min, double max, double step)
	Construct a HScale with the given minimum and maximum.
	HScale (Adjustment& adjustment)
Related Functions
(Note that these are not member functions.)
Gtk::HScale*	wrap (GtkHScale* object, bool take_copy=false)
	A Glib::wrap() method for this object.

---

Detailed Description

A horizontal slider for selecting values.

The Gtk::HScale widget is used to allow the user to select a value using a horizontal slider. See the Gtk::Scale documentation for more information on how to use a Gtk::HScale.

The HScale widget looks like this:

---

Constructor & Destructor Documentation

virtual Gtk::HScale::~HScale

(

)

[virtual]

Gtk::HScale::HScale

(

)

Gtk::HScale::HScale	(	double	min,
		double	max,
		double	step
	)

Construct a HScale with the given minimum and maximum.

The step size is the distance the slider moves when the arrow keys are used to adjust the scale value.

Gtk::HScale::HScale

(

Adjustment&

adjustment

)

[explicit]

---

Member Function Documentation

const GtkHScale* Gtk::HScale::gobj

(

)

const [inline]

Provides access to the underlying C GtkObject.

Reimplemented from Gtk::Scale.

GtkHScale* Gtk::HScale::gobj

(

)

[inline]

Provides access to the underlying C GtkObject.

Reimplemented from Gtk::Scale.

---

Friends And Related Function Documentation

Gtk::HScale* wrap	(	GtkHScale *	object,
		bool	take_copy = false
	)			[related]

A Glib::wrap() method for this object.

Parameters:

	object	The C instance.
	take_copy	False if the result should take ownership of the C instance. True if it should take a new copy or ref.

Returns:

A C++ instance that wraps this C instance.

---

The documentation for this class was generated from the following file:

• gtkmm/scale.h
