Gtk::Viewport Class Reference

An adapter which makes widgets scrollable. More...

Inheritance diagram for Gtk::Viewport:

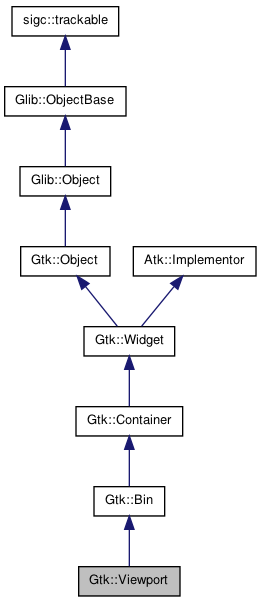

Collaboration diagram for Gtk::Viewport:

List of all members.

Public Member Functions
virtual	~Viewport ()
GtkViewport*	gobj ()
	Provides access to the underlying C GtkObject.
const GtkViewport*	gobj () const
	Provides access to the underlying C GtkObject.
	Viewport (Adjustment& hadjustment, Adjustment& vadjustment)
Gtk::Adjustment*	get_hadjustment ()
	Returns the horizontal adjustment of the viewport.
const Gtk::Adjustment*	get_hadjustment () const
	Returns the horizontal adjustment of the viewport.
Gtk::Adjustment*	get_vadjustment ()
	Returns the vertical adjustment of the viewport.
const Gtk::Adjustment*	get_vadjustment () const
	Returns the vertical adjustment of the viewport.
void	set_hadjustment (Gtk::Adjustment* adjustment=0)
	Sets the horizontal adjustment of the viewport.
void	set_hadjustment (Gtk::Adjustment& adjustment)
	Sets the horizontal adjustment of the viewport.
void	set_vadjustment (Gtk::Adjustment* adjustment=0)
	Sets the vertical adjustment of the viewport.
void	set_vadjustment (Gtk::Adjustment& adjustment)
	Sets the vertical adjustment of the viewport.
void	set_shadow_type (ShadowType type)
	Sets the shadow type of the viewport.
ShadowType	get_shadow_type () const
	Gets the shadow type of the Gtk::Viewport.
Glib::RefPtr< Gdk::Window >	get_bin_window ()
	Gets the bin window of the Gtk::Viewport.
Glib::RefPtr< const Gdk::Window >	get_bin_window () const
	Gets the bin window of the Gtk::Viewport.
Glib::RefPtr< Gdk::Window >	get_view_window ()
	Gets the view window of the Gtk::Viewport.
Glib::RefPtr< const Gdk::Window >	get_view_window () const
	Gets the view window of the Gtk::Viewport.
Glib::SignalProxy2< void, Gtk::Adjustment *, Gtk::Adjustment* >	signal_set_scroll_adjustments ()
Glib::PropertyProxy < Gtk::Adjustment* >	property_hadjustment ()
	The GtkAdjustment that determines the values of the horizontal position for this viewport.
Glib::PropertyProxy_ReadOnly < Gtk::Adjustment* >	property_hadjustment () const
	The GtkAdjustment that determines the values of the horizontal position for this viewport.
Glib::PropertyProxy < Gtk::Adjustment* >	property_vadjustment ()
	The GtkAdjustment that determines the values of the vertical position for this viewport.
Glib::PropertyProxy_ReadOnly < Gtk::Adjustment* >	property_vadjustment () const
	The GtkAdjustment that determines the values of the vertical position for this viewport.
Glib::PropertyProxy< ShadowType >	property_shadow_type ()
	Determines how the shadowed box around the viewport is drawn.
Glib::PropertyProxy_ReadOnly < ShadowType >	property_shadow_type () const
	Determines how the shadowed box around the viewport is drawn.
Protected Member Functions
virtual void	on_set_scroll_adjustments (Gtk::Adjustment* hadjustment, Gtk::Adjustment* vadjustment)
Related Functions
(Note that these are not member functions.)
Gtk::Viewport*	wrap (GtkViewport* object, bool take_copy=false)
	A Glib::wrap() method for this object.

---

Detailed Description

An adapter which makes widgets scrollable.

---

Constructor & Destructor Documentation

virtual Gtk::Viewport::~Viewport

(

)

[virtual]

Gtk::Viewport::Viewport	(	Adjustment&	hadjustment,
		Adjustment&	vadjustment
	)		[explicit]

---

Member Function Documentation

Glib::RefPtr<Gdk::Window> Gtk::Viewport::get_bin_window

(

)

Gets the bin window of the Gtk::Viewport.

Since gtkmm 2.20:

Returns:

A Gdk::Window.

Glib::RefPtr<const Gdk::Window> Gtk::Viewport::get_bin_window

(

)

const

Gets the bin window of the Gtk::Viewport.

Since gtkmm 2.20:

Returns:

A Gdk::Window.

const Gtk::Adjustment* Gtk::Viewport::get_hadjustment

(

)

const

Returns the horizontal adjustment of the viewport.

Returns:

The horizontal adjustment of viewport.

Gtk::Adjustment* Gtk::Viewport::get_hadjustment

(

)

Returns the horizontal adjustment of the viewport.

Returns:

The horizontal adjustment of viewport.

ShadowType Gtk::Viewport::get_shadow_type

(

)

const

Gets the shadow type of the Gtk::Viewport.

See set_shadow_type().

Returns:

The shadow type.

Gtk::Adjustment* Gtk::Viewport::get_vadjustment

(

)

Returns the vertical adjustment of the viewport.

Returns:

The vertical adjustment of viewport.

const Gtk::Adjustment* Gtk::Viewport::get_vadjustment

(

)

const

Returns the vertical adjustment of the viewport.

Returns:

The vertical adjustment of viewport.

Glib::RefPtr<Gdk::Window> Gtk::Viewport::get_view_window

(

)

Gets the view window of the Gtk::Viewport.

Since gtkmm 2.22:

Returns:

A Gdk::Window.

Glib::RefPtr<const Gdk::Window> Gtk::Viewport::get_view_window

(

)

const

Gets the view window of the Gtk::Viewport.

Since gtkmm 2.22:

Returns:

A Gdk::Window.

const GtkViewport* Gtk::Viewport::gobj

(

)

const [inline]

Provides access to the underlying C GtkObject.

Reimplemented from Gtk::Bin.

GtkViewport* Gtk::Viewport::gobj

(

)

[inline]

Provides access to the underlying C GtkObject.

Reimplemented from Gtk::Bin.

virtual void Gtk::Viewport::on_set_scroll_adjustments	(	Gtk::Adjustment*	hadjustment,
		Gtk::Adjustment*	vadjustment
	)		[protected, virtual]

Glib::PropertyProxy<Gtk::Adjustment*> Gtk::Viewport::property_hadjustment

(

)

The GtkAdjustment that determines the values of the horizontal position for this viewport.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:

A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy_ReadOnly<Gtk::Adjustment*> Gtk::Viewport::property_hadjustment

(

)

const

The GtkAdjustment that determines the values of the horizontal position for this viewport.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:

A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy<ShadowType> Gtk::Viewport::property_shadow_type

(

)

Determines how the shadowed box around the viewport is drawn.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:

A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy_ReadOnly<ShadowType> Gtk::Viewport::property_shadow_type

(

)

const

Determines how the shadowed box around the viewport is drawn.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:

A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy_ReadOnly<Gtk::Adjustment*> Gtk::Viewport::property_vadjustment

(

)

const

The GtkAdjustment that determines the values of the vertical position for this viewport.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:

A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy<Gtk::Adjustment*> Gtk::Viewport::property_vadjustment

(

)

The GtkAdjustment that determines the values of the vertical position for this viewport.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:

A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

void Gtk::Viewport::set_hadjustment

(

Gtk::Adjustment&

adjustment

)

Sets the horizontal adjustment of the viewport.

Parameters:

adjustment

A Gtk::Adjustment.

void Gtk::Viewport::set_hadjustment

(

Gtk::Adjustment*

adjustment = 0

)

Sets the horizontal adjustment of the viewport.

Parameters:

adjustment

A Gtk::Adjustment.

void Gtk::Viewport::set_shadow_type

(

ShadowType

type

)

Sets the shadow type of the viewport.

Parameters:

type	The new shadow type.

void Gtk::Viewport::set_vadjustment

(

Gtk::Adjustment&

adjustment

)

Sets the vertical adjustment of the viewport.

Parameters:

adjustment

A Gtk::Adjustment.

void Gtk::Viewport::set_vadjustment

(

Gtk::Adjustment*

adjustment = 0

)

Sets the vertical adjustment of the viewport.

Parameters:

adjustment

A Gtk::Adjustment.

Glib::SignalProxy2< void,Gtk::Adjustment*,Gtk::Adjustment* > Gtk::Viewport::signal_set_scroll_adjustments

(

)

Prototype:

void on_my_set_scroll_adjustments(Gtk::Adjustment* hadjustment, Gtk::Adjustment* vadjustment)

---

Friends And Related Function Documentation

Gtk::Viewport* wrap	(	GtkViewport *	object,
		bool	take_copy = false
	)		[related]

A Glib::wrap() method for this object.

Parameters:

object	The C instance.
take_copy	False if the result should take ownership of the C instance. True if it should take a new copy or ref.

Returns:

A C++ instance that wraps this C instance.

---

The documentation for this class was generated from the following file:

• gtkmm/viewport.h
