# Merge request widgets
DETAILS:
**Tier:** Free, Premium, Ultimate
**Offering:** GitLab.com, Self-managed, GitLab Dedicated
The **Overview** page of a merge request displays status updates from services
that perform actions on your merge request. All subscription levels display a
widgets area, but the content of the area depends on your subscription level
and the services you configure for your project.
## Pipeline information
If you've set up [GitLab CI/CD](../../../ci/index.md) in your project,
a [merge request](index.md) displays pipeline information in the widgets area
of the **Overview** tab:
- Both pre-merge and post-merge pipelines, and the environment information, if any.
- Which deployments are in progress.
If an application is successfully deployed to an
[environment](../../../ci/environments/index.md), the deployed environment and the link to the
[review app](../../../ci/review_apps/index.md) are both shown.
NOTE:
When the pipeline fails in a merge request but it can still merge,
GitLab shows **Merge** in red.

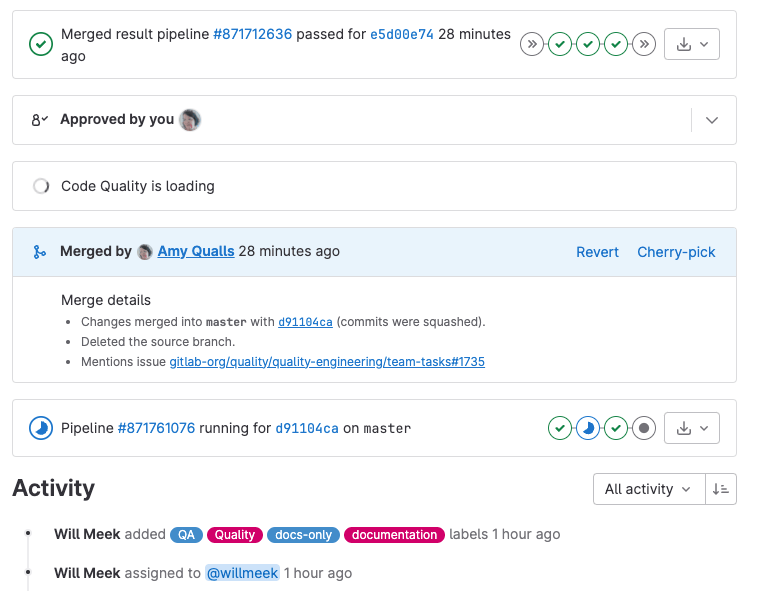

## Post-merge pipeline status
When you merge a merge request, you can see the post-merge pipeline status of
the branch the merge request merged into. For example, when a merge request
merges into the [default branch](../repository/branches/default.md), and then
triggers a deployment to the staging environment.
GitLab shows ongoing deployments, and the state (deploying or deployed)
for environments. If it's the first deployment of the branch, the link
returns a `404` error until done. During the deployment, GitLab disables the
stop button. If the pipeline fails to deploy, GitLab hides the deployment information.
For more information, [read about pipelines](../../../ci/pipelines/index.md).
## Set auto-merge
Set a merge request that looks ready to merge to
[merge automatically when CI pipeline succeeds](auto_merge.md).
## Live preview with review apps
Configure [review apps](../../../ci/review_apps/index.md) for your project
to preview the changes submitted to a feature branch through a merge request
on a per-branch basis. You don't need to check out the branch, install, and preview locally.
All your changes are available to preview by anyone with the review apps link.
With GitLab [Route Maps](../../../ci/review_apps/index.md#route-maps) set, the
merge request widget takes you directly to the pages changed, making it easier and
faster to preview proposed modifications.
[Read more about review apps](../../../ci/review_apps/index.md).
## License compliance
DETAILS:
**Tier:** Ultimate
**Offering:** GitLab.com, Self-managed, GitLab Dedicated
To view a list of licenses that detected for your project's dependencies,
configure [License Compliance](../../compliance/license_scanning_of_cyclonedx_files/index.md)
for your project.
## External status checks
DETAILS:
**Tier:** Ultimate
**Offering:** GitLab.com, Self-managed, GitLab Dedicated
If you have configured [external status checks](status_checks.md) you can
see the status of these checks in merge requests
[in a specific widget](status_checks.md#status-checks-widget).
## Application security scanning
If you enable any application security scanning tools, GitLab shows the results in the security
scanning widget. For more information, see
[security scanning output in merge request widget](../../application_security/index.md#merge-request).
|
