# What is OpenStack Cluster Installer (OCI)

### General description

OCI (OpenStack Cluster Installer) is a software to provision an OpenStack
clusters automatically. This package installs a provisioning machine, which
uses the below components:
- a DHCP server (isc-dhcp-server)
- a PXE boot server (tftp-hpa)
- a web server (apache2)
- a puppet-master

Once computers in the cluster boot for the first time, a Debian live system
is served by OCI over PXE, to act as a discovery image. This live system then
reports the hardware features back to OCI. Computers can then be installed with
Debian from that live system, configured with a puppet-agent that will connect
to the puppet-master of OCI. After Debian is installed, the server reboots, and
OpenStack services are provisioned, depending on the server role in the cluster.

OCI is fully packaged in Debian, including all of the Puppet modules. After
installing the OCI package and its dependencies, no other artificat needs to be
installed on your provisioning server, meaning that if a local debian mirror
is available, the OpenStack cluster installation can be done completely
offline.

### What OpenStack services can OCI install?

Currently, OCI can install:
- Swift (with optional dedicated proxy nodes)
- Keystone
- Cinder (LVM or Ceph backend)
- Glance (File, Swift or Ceph backend, Swift can be external)
- Heat
- Horizon
- Manila
- Nova (with GPU support)
- Neutron
- Barbican
- Octavia
- Telemetry (Ceilometer, Gnocchi, Panko, Aodh)
- Cloudkitty
- Designate

There's currently ongoing effort to integrate:
- Magnum

Also, OCI now support running CephOSD on compute nodes (which is what is
called "hyper-converged") as an option for each compute node.

All of this in a high availability way, using haproxy and corosync for
the controller nodes for all services.

All services are fully using TLS, even within the cluster.

As a general rule, what OCI does, is check what type of nodes are part
of the cluster, and takes decisions depending on it. For example, if there
are some Ceph OSD nodes, OCI will use Ceph as a backend for Glance, Nova
and Cinder backup.
If there are some Cinder Volume nodes, OCI will use them with the LVM
backend. If there is some Swiftstore nodes, Swift will be used for backups
and Glance images. If there are some Ceph OSD nodes, but
no dedicated Ceph MON nodes, the controllers will act as Ceph monitors.
If there are some Compute nodes, then Cinder, Nova and Neutron will be
installed on the controller nodes. Etc.

The minimum number of controller nodes is 3, though it is possible, with
a bit of hacking to install the 3 controllers on VMs on a single server
(of course, loosing the high availability feature if the hardware fails).

OCI can setup the below list of roles (node type):
- controller (API server)
- compute
- network
- volume (Cinder LVM nodes)
- sql (MariaDB Galera cluster for controller nodes)
- messaging
- sqlmsg (MariaDB Galera cluster for messaging nodes)
- cephmon
- cephosd
- billmon (Ceph MON for billing)
- billosd (Ceph OSD for billing)
- swiftproxy
- swiftstore
- debmirror
- tempest
- dns (bind9 nodes for Designate)
- radosgw (Ceph RADOS gateway)
- elastic (for testing telemetry+cloudkitty purpose only)


### Who initiated the project? Who are the main contributors?

OCI has been written from scratch by Thomas Goirand (zigo). The work is
fully sponsored by Infomaniak Networks, who is using it in production
in reasonably large clusters. There's been some sporadic contributions
within Infomaniak, plus a few patches from external contributors, but
no major features (yet). Hopefully, this project, over time, will gather
more contributors.


### Video presentation

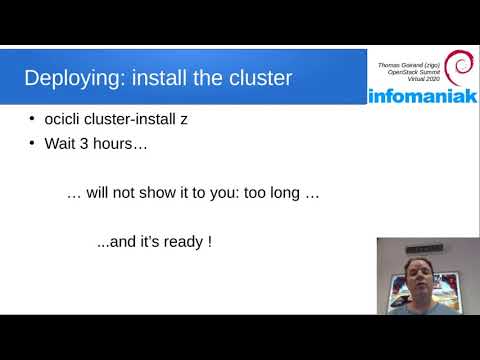

If you wish to have a quick presentation of what OCI can do, to see if
it fits your needs, you can watch the presentation made for the OpenStack
summit in November 2020. It's not long (19 minutes):

[![OCI presentation](https://img.youtube.com/vi/Q25jT2fYDjc/0.jpg)](https://www.youtube.com/watch?v=Q25jT2fYDjc)


# How to install your puppet-master/PXE server

## Minimum requirements

OCI itself will run fine with about 20 GB of HDD, and a few GB of RAM.
However, to install OpenStack, you will need at least 3 controllers with
a minimum of 16 GB of RAM, 32 GB is recommended, and best is with 64 GB of RAM.
If you want Ceph, a minimum of 3 Ceph OSD is needed, however, we're only
talking when your cluster reaches 100 disks. The Ceph recommendation is
that any given server down doesn't remove more than 10% of the total
capacity. So 10 OSD servers as a start is nice. As for swift, the minimum
number of servers would be 3, but then if one fails, you'll get some timeouts.
So probably it's best to start with at least 6 Swift storage nodes, and maybe
at 2 proxies. For a the other resources, it's really up to you: a few
computes, and probably 2 network nodes and some volume nodes.

If you intend to run the openstack-cluster-installer-poc package to do some
OCI development in a virtualized environment, we recommend a single server
with 1 TB of HDD and 256 GB of RAM. This configuration is enough to
provision 19 VMs where OpenStack will be installed. It's possible to run
with less, but then not a lot of nodes will be available, and you'll have
to tweak down the number of servers in /etc/oci-poc/oci-poc.conf.

## Installing the package

### The package repository

The OCI packages are either available from plain Debian Sid or from the
official Debian Stable repositories. However, we recommend using the
unofficial debian.net backports repository that are more up-to-date and
that contain intermediary releases of OpenStack.

#### Using Extrepo

The new (better) way of using Debian Stable backports of OpenStack is to use
extrepo. Extrepo is available from the official buster-backports, or in the
normal Stable repositories. Here's how to install OpenStack Epoxy, for
example:

```
apt-get install extrepo
extrepo search openstack
extrepo enable openstack_epoxy
apt-get update
apt-get dist-upgrade
```

See extrepo documentation if you want to know more about it.

#### Manual setup of the Debian repositories

If using Bookworm with OpenStack Bobcat is desired, then the below repository
must be added to the /etc/apt/sources.list.d/bookworm-bobcat.sources file:

```
Types: deb deb-src
URIs: http://bookworm-bobcat.debian.net/debian
Suites: bookworm-bobcat-backports bookworm-bobcat-backports-nochange
Components: main
Signed-By: /etc/apt/keyrings/bookworm-bobcat.asc
```

Also, get the GPG key:

```
wget http://bookworm-bobcat.debian.net/debian/dists/pubkey.gpg -O /etc/apt/keyrings/bookworm-bobcat.asc
```

You may replace bookworm above by whatever Debian stable distro of the day
and bobcat by whatever OpenStack release name of the day.

There's also a mirror containing ALL of the OpenStack releases in a single
place, located at:

http://osbpo.debian.net/debian/

### Install the package

Simply install the package:

```
apt-get install openstack-cluster-installer
```

However, before you do that, it's nicer to do the below steps to prepare
the dependencies.

### Install a db server

MariaDB will do:

```
apt-get install default-mysql-server dbconfig-common
```

It is possible to the db creation and credentials by hand, or to let OCI handle
it automatically with dbconfig-common. If APT is running in
non-interactive mode, or if during the installation, there will be no prompt
for the database credentials. Here's how to configure OCI once the db and
credentials are provisioned:

```
apt-get install openstack-pkg-tools
. /usr/share/openstack-pkg-tools/pkgos_func
PASSWORD=$(openssl rand -hex 16)
pkgos_inifile set /etc/openstack-cluster-installer/openstack-cluster-installer.conf database connection mysql+pymysql://oci:${PASSWORD}@localhost:3306/oci"
mysql --execute 'CREATE DATABASE oci;'
mysql --execute "GRANT ALL PRIVILEGES ON oci.* TO 'oci'@'localhost' IDENTIFIED BY '${PASSWORD}';"
```

One must then make sure that the "connection" directive in
/etc/openstack-cluster-installer/openstack-cluster-installer.conf doesn't
contain spaces before and after the equal sign. Then the db is populated
below.

### Configuring OCI

Make sure the db is in sync (if it is, you'll see table exists errors):

```
apt-get install -y php-cli
cd /usr/share/openstack-cluster-installer ; php db_sync.php
```

Then edit /etc/openstack-cluster-installer/openstack-cluster-installer.conf
and make it looks the way it pleases you (ie: change network values, etc.).

### Generate the OCI's root CA

To handle TLS, OCI is using its own root CA. The root CA certificate is
distributed on all nodes of the cluster. To create the initial root CA,
there's a script to do it all:

```
oci-root-ca-gen
```

At this point, you should be able to browse through OCI's web interface:
```
firefox http://your-ip-address/oci/
```

However, you need a login/pass to get in. There's a shell utility to manage
your usernames. To add a new user, do this:

```
oci-userdb -a mylogin mypassword
```

Check the result by listing all configured logins:

```
oci-userdb -l
```

Passwords are hashed using the PHP password_hash() function using the
BCRYPT algo.

Also, OCI is capable of using an external Radius for its authentication.
However, you still need to manually add logins in the db. What's below
inserts a new user that has an entry in the radius server:

```
oci-userdb -r newuser@example.com
```

Note that you also need to configure your radius server address and
shared secret in openstack-cluster-installer.conf.

Note that even if there is an authentication system, it is strongly advised
to not expose OCI to the public internet. The best setup is if your
provisioning server isn't reachable at all from the outside.

## Installing side services

### ISC-DHCPD

Configure isc-dhcp to match your network configuration. Note that
"next-server" must be the address of your puppet-master node (ie: the dhcp
server that we're currently configuring).

Edit /etc/default/isc-dhcpd:

```
sed -i 's/INTERFACESv4=.*/INTERFACESv4="eth0"/' /etc/default/isc-dhcp-server
```

Then edit /etc/dhcp/dhcpd.conf:

```
allow booting;
allow bootp;
default-lease-time 600;
max-lease-time 7200;
ddns-update-style none;
authoritative;
ignore-client-uids true;

subnet 192.168.100.0 netmask 255.255.255.0 {
        option subnet-mask 255.255.255.0;
        option broadcast-address 192.168.100.255;
        option routers 192.168.100.1;
        range 192.168.100.20 192.168.100.120;
        option domain-name "example.com";
        option domain-name-servers 9.9.9.9;
        next-server 192.168.100.2;
        if exists user-class and option user-class = "iPXE" {
                filename "http://192.168.100.2/oci/ipxe.php";
        } else {
                filename "lpxelinux.0";
        }
}
```

Restart dhcpd via:

```
systemctl restart isc-dhcp-server.service
```

Carefully note that 192.168.100.2 must be the address of your OCI server,
as it will be used for serving PXE, TFTP and web for the slave nodes.
It is of course fine to use another address if your OCI server does,
so feel free to adapt the above to your liking.

Note that as of OCI version 28 and above, loading the initrd and kernel
is done over HTTP, so using lpxelinux.0 is mandatory (pxelinux.0 should
not be used anymore, as it only supports TFTP).

Also, for OCI to allow query from the DHCP range, you must add your
DHCP subnets to TRUSTED_NETWORKS in openstack-cluster-installer.conf.
Otherwise, hardware reporting will never work.

### tftpd

Configure tftp-hpa to serve files from OCI:

```
sed -i 's#TFTP_DIRECTORY=.*#TFTP_DIRECTORY="/var/lib/openstack-cluster-installer/tftp"#' /etc/default/tftpd-hpa
systemctl restart tftpd-hpa.service
```

## Getting ready to install servers

### Configuring ssh keys

When setting-up, OCI will create a public / private ssh keypair in here:

```
/etc/openstack-cluster-installer/id_rsa
```

Once done, it will copy the corresponding id_rsa.pub content into:

```
/etc/openstack-cluster-installer/authorized_keys
```

and will also add all the public keys it finds under
/root/.ssh/authorized_keys in it. Later on, this file will be copied
in the OCI Debian live image, and in all new systems OCI will install.
OCI will later on use the private key it generated to log into the
servers, while your keys will also be present so you can log into each
individual servers using your private key. Therefore, it is strongly
advise to customize /etc/openstack-cluster-installer/authorized_keys
*before* you build the OCI Debian Live image.

### Optional: using a self-hosted package repository ###

If you are using a self-hosted package repository which signs packages
with its own key (e.g. aptly), this requires additional configuration.
If you are using the official Debian packages (either direct or via a
caching proxy) then skip to the next section.

You will need a package in your repo which contains the repository's
signing key, and this package will need to already be installed on your
OCI server.

Configure the following entries in /etc/openstack-cluster-installer/openstack-cluster-installer.conf :
```
debian_keyring_package=my-archive-keyring
debian_keyring_file=/usr/share/keyrings/my-archive-keyring.gpg
install_debian_keyring_package=yes
```

If the keyring package is not available at install time (because it
is not kept in the same repository as the mirrored debian packages),
then set the following options to instead copy the keyring file from
the live image:

```
install_debian_keyring_package=no
install_debian_keyring_file=yes
```

### Build OCI's live image ###

```
mkdir -p /root/live-image
cd /root/live-image
openstack-cluster-installer-build-live-image --pxe-server-ip 192.168.100.2 --debian-mirror-addr http://deb.debian.org/debian --debian-security-mirror-addr http://security.debian.org/
cp -auxf /var/lib/openstack-cluster-installer/tftp/* /usr/share/openstack-cluster-installer
cd ..
rm -rf /root/live-image
```

Is is possible to use package proxy servers like approx,
or local mirrors, which gives the possibility to have your cluster
and OCI itself completely disconnected from internet.

If one wishes to build for more than a single architecture,
it is possible to do so, and have multi-arch PXE booting.
To do so, make sure your dhcpd.conf containst the necessary
arch detection (note: the next-server must be the OCI
PXE server IP):

```
subnet 192.168.100.0 netmask 255.255.255.0 {
        range 192.168.100.10 192.168.100.99;
        option subnet-mask 255.255.255.0;
        option broadcast-address 192.168.100.255;
        option routers 192.168.100.1;
        next-server 10.10.0.4;
        if exists user-class and option user-class = "iPXE" {
                filename "http://10.10.0.4/oci/ipxe.php";
        } elsif exists pxe-system-type {
                if option pxe-system-type = 00:00 {
                        filename "lpxelinux.0";
                } elsif option pxe-system-type = 00:07 {
                        filename "shimx64.efi.signed";
                } elsif option pxe-system-type = 00:09 {
                        filename "shimx64.efi.signed";
                } elsif option pxe-system-type = 00:0b {
                        filename "shimaa64.efi.signed";
                }
        } else {
                filename "lpxelinux.0";
        }
}
```

Edit openstack-cluster-installer.conf and fill image_builder_hosts
with the hostname or IP address of your arm64 build host. In
that server, install the openstack-cluster-installer-live-image-builder
package, plus grub-efi-arm64-signed and syslinux-efi (these are
as Suggests: to avoid a hard dependency on some arch-specific packages).

Then simply launch oci-live:

```
# oci-live
```

Running this will scp the OCI configuration to your build host,
launch openstack-cluster-installer-build-live-image there, and
copy the resulting binary locally.

Note that currently, only arm64 and amd64 are supported, but it
shouldn't be hard to add another architecture (only the filenames
of grub, shim, etc. needs to be filled in the build scripts).

### Configure puppet's ENC

Once the puppet-master service is installed, its external node
classifier (ENC) directives must be set, so that OCI acts as ENC
(which means OCI will define roles and puppet classes to call when
installing a new server with puppet):

```
. /usr/share/openstack-pkg-tools/pkgos_func
pkgos_add_directive /etc/puppet/puppet.conf master "external_nodes = /usr/bin/oci-puppet-external-node-classifier" "# Path to enc"
pkgos_inifile set /etc/puppet/puppet.conf master external_nodes /usr/bin/oci-puppet-external-node-classifier
pkgos_add_directive /etc/puppet/puppet.conf master "node_terminus = exec" "# Tell what type of ENC"
pkgos_inifile set /etc/puppet/puppet.conf master node_terminus exec
```

then restart the puppet-master service.

### Optional: approx

To speed-up package download, it is highly recommended to install approx
locally on your OCI provisioning server, and use its address when
setting-up servers (the address is set in
/etc/openstack-cluster-installer/openstack-cluster-installer.conf).

# Using OCI

## Booting-up servers

Start-up a bunch of computers, booting them with PXE. If everything goes well, they will
catch the OCI's DHCP, and boot-up OCI's Debian live image. Once the server
is up, an agent will run to report to OCI's web interface. Just refresh
OCI's web interface, and you will see machines. You can also use the CLI
tool:

```
# apt-get install openstack-cluster-installer-cli
# ocicli machine-list
serial   ipaddr          memory  status     lastseen             cluster  hostname
2S2JGM2  192.168.100.37  4096    live       2018-09-20 09:22:31  null
2S2JGM3  192.168.100.39  4096    live       2018-09-20 09:22:50  null
```

Note that ocicli can either use a login/password which can be set in
the OCI's internal db, or the IP address of the server where ocicli runs can
be white-listed in /etc/openstack-cluster-installer/openstack-cluster-installer.conf.

## Creating Swift regions, locations, networks, roles and clusters

### Before we start

In this documentation, everything is done through the command line using
ocicli. However, absolutely everything can also be done using the web
interface. It is just easier to explain using the CLI, as this avoids
the necessity of showing snapshots of the web interface.

Here, the only network you'll be adding to OCI would be the OpenStack
internal networks. Never, you'll be adding the public networks or the
ones in the OpenStack VMs. For example, one network for the management of
nodes, one for vm-net, one for the ceph-cluster network ... All of the
networks you'll be using on OpenStack, are to be provisioned with
OpenStack itself using the OpenStack API.

### Creating Swift regions and locations

Before installing the systems on your servers, clusters must be defined.
This starts by setting-up Swift regions. In a Swift cluster, there are
zones and regions. When uploading a file to Swift, it is replicated on
N zones (usually 3). If 2 regions are defined, then Swift tries to
replicate objects on both regions.

Under OCI, you must first define Swift regions. To do so, click on
"Swift region" on the web interface, or using ocicli, type:

```
# ocicli swift-region-create datacenter-1
# ocicli swift-region-create datacenter-2
```

Then create locations attached to these regions:

```
# ocicli location-create dc1-zone1 datacenter-1
# ocicli location-create dc1-zone2 datacenter-1
# ocicli location-create dc2-zone1 datacenter-2
```

Later on, when adding a swift data node to a cluster (data nodes are
the servers that will actually do the Swift storage), a location must
be selected.

Once the locations have been defined, it is time to define networks.
Networks are attached to locations as well. The Swift zones and regions
will be related to these locations and regions.

### Creating networks

```
# ocicli network-create dc1-net1 192.168.101.0 24 dc1-zone1 no
```

The above command will create a subnet 192.168.101.0/24, located at
dc1-zone1. Let's create 2 more networks:

```
# ocicli network-create dc1-net2 192.168.102.0 24 dc1-zone2 no
# ocicli network-create dc2-net1 192.168.103.0 24 dc2-zone1 no
```

Next, for the cluster to be reachable, let's create a public network
on which customers will connect:

```
# ocicli network-create pubnet1 203.0.113.0 28 public yes
```

Note that if using a /32, it will be setup on the lo interface of
your controller. The expected setup is to use BGP to route that
public IP on the controller. To do that, it is possible to customize
the ENC and add BGP peering to your router. See at the end of this
documentation for that.

### Creating a new cluster

Let's create a new cluster:

```
# ocicli cluster-create swift01 example.com
```

Now that we have a new cluster, the networks we created can be added to it:

```
# ocicli network-add dc1-net1 swift01 all eth0
# ocicli network-add dc1-net2 swift01 all eth0
# ocicli network-add dc2-net1 swift01 all eth0
# ocicli network-add pubnet1 swift01 all eth0
```

When adding the public network, automatically, one IP address will be
reserved for the VIP (Virtual Private IP). This IP address will later
be shared by the controller nodes, to perform HA (High Availability),
controlled by pacemaker / corosync. The principle is: if one of
the controllers nodes is hosting the VIP (and it's assigned to its
eth0), and becomes unavailable (let's say, the server crashes or the
network wire is unplugged), then the VIP is re-assigned to the eth0
of another controller node of the cluster.

If selecting 2 network interfaces (for example, eth0 and eth1), then
bonding will be used. Note that your network equipment (switches, etc.)
must be configured accordingly (LACP, etc.), and that the setup of
these equipment is out of the scope of this documentation. Consult your
network equipment vendor for more information.

## Real certificate for the API

By default, OCI will generate self-signed certificate for everyting.
Though this works well except a few exceptions (it noticeably doesn't work
for Heat, Magnum and if one wants to enable Swift on-disk encryption), it is
preferable, in production, to use a real API certificate, so that clients
can trust your server. In order to do this, one must first choose a hostname
for the API. This is set this way:

```
# ocicli cluster-set z --vip-hostname cloud-api.example.com
```

Once done, in the OCI server, generate a certificate for this hostname:

```
# oci-gen-slave-node-cert cloud-api.example.com
```

The cd to /var/lib/oci/ssl/slave-nodes/cloud-api.example.com. Then can
be find the cloud-api.example.com.csr (.csr stands for Certificate Signing
Certificate) which can be used to optain a real certificate. Get the
certificate signed, and then replace the .crt, and .pem files with the
real signed content. If you are re-using a wildcard certicate, then you
probably also want to replace the .key file. Note that the .pem file
must contain the certificate *and* the private key, concatenated, and
maybe also all the intermediate certificates.

Once this is done, simply inform OCI that we're using a real signed
certificate:

```
# ocicli cluster-set z --self-signed-api-cert no
```

Now, puppet will be started without using the OCI's root ca as environment,
and ca_file will not be used in all OpenStack configuration files (an
empty string will be set instead).

If you have set your cluster in production before signing the certificate,
it is possible to use, on the puppet server, the oci-update-cluster-certs
utility:

```
# oci-update-cluster-certs z
```

This will replace the certificate cloud-api.example.com everywhere in
the cluster, and restart services to use it. This shell utility is also
useful whenever your SSL certificate expires and needs to be updated.

## Enrolling servers in a cluster

Now that we have networks assigned to the cluster, it is time to
assign servers to the cluster. Let's say we have the below output:

```
# ocicli machine-list
serial  ipaddr          memory  status  lastseen             cluster  hostname
C1      192.168.100.20  8192    live    2018-09-19 20:31:57  null
C2      192.168.100.21  8192    live    2018-09-19 20:31:04  null
C3      192.168.100.22  8192    live    2018-09-19 20:31:14  null
C4      192.168.100.23  5120    live    2018-09-19 20:31:08  null
C5      192.168.100.24  5120    live    2018-09-19 20:31:06  null
C6      192.168.100.25  5120    live    2018-09-19 20:31:14  null
C7      192.168.100.26  4096    live    2018-09-19 20:31:18  null
C8      192.168.100.27  4096    live    2018-09-19 20:31:26  null
C9      192.168.100.28  4096    live    2018-09-19 20:30:50  null
CA      192.168.100.29  4096    live    2018-09-19 20:31:00  null
CB      192.168.100.30  4096    live    2018-09-19 20:31:07  null
CC      192.168.100.31  4096    live    2018-09-19 20:31:20  null
CD      192.168.100.32  4096    live    2018-09-19 20:31:28  null
CE      192.168.100.33  4096    live    2018-09-19 20:31:33  null
CF      192.168.100.34  4096    live    2018-09-19 20:31:40  null
D0      192.168.100.35  4096    live    2018-09-19 20:31:47  null
D1      192.168.100.37  4096    live    2018-09-21 20:31:23  null
D2      192.168.100.39  4096    live    2018-09-21 20:31:31  null
```

Then we can enroll machines in the cluster this way:

```
# ocicli machine-add C1 swift01 controller dc1-zone1
# ocicli machine-add C2 swift01 controller dc1-zone2
# ocicli machine-add C3 swift01 controller dc2-zone1
# ocicli machine-add C4 swift01 swiftproxy dc1-zone1
# ocicli machine-add C5 swift01 swiftproxy dc1-zone2
# ocicli machine-add C6 swift01 swiftproxy dc2-zone1
# ocicli machine-add C7 swift01 swiftstore dc1-zone1
# ocicli machine-add C8 swift01 swiftstore dc1-zone2
# ocicli machine-add C9 swift01 swiftstore dc2-zone1
# ocicli machine-add CA swift01 swiftstore dc1-zone1
# ocicli machine-add CB swift01 swiftstore dc1-zone2
# ocicli machine-add CC swift01 swiftstore dc2-zone1
```

As a result, there's going to be 1 controller, 1 Swift proxy and
2 Swift data node on each zone of our clusters. IP addresses will
automatically be assigned to servers as you add them to the clusters.
They aren't shown in ocicli, but you can check for them through the
web interface. The result should be like this:

```
# ocicli machine-list
serial  ipaddr          memory  status  lastseen             cluster  hostname
C1      192.168.100.20  8192    live    2018-09-19 20:31:57  7        swift01-controller-1.example.com
C2      192.168.100.21  8192    live    2018-09-19 20:31:04  7        swift01-controller-2.example.com
C3      192.168.100.22  8192    live    2018-09-19 20:31:14  7        swift01-controller-3.example.com
C4      192.168.100.23  5120    live    2018-09-19 20:31:08  7        swift01-swiftproxy-1.example.com
C5      192.168.100.24  5120    live    2018-09-19 20:31:06  7        swift01-swiftproxy-2.example.com
C6      192.168.100.25  5120    live    2018-09-19 20:31:14  7        swift01-swiftproxy-3.example.com
C7      192.168.100.26  4096    live    2018-09-19 20:31:18  7        swift01-swiftstore-1.example.com
C8      192.168.100.27  4096    live    2018-09-19 20:31:26  7        swift01-swiftstore-2.example.com
C9      192.168.100.28  4096    live    2018-09-19 20:30:50  7        swift01-swiftstore-3.example.com
CA      192.168.100.29  4096    live    2018-09-19 20:31:00  7        swift01-swiftstore-4.example.com
CB      192.168.100.30  4096    live    2018-09-19 20:31:07  7        swift01-swiftstore-5.example.com
CC      192.168.100.31  4096    live    2018-09-19 20:31:20  7        swift01-swiftstore-6.example.com
CD      192.168.100.32  4096    live    2018-09-19 20:31:28  null
CE      192.168.100.33  4096    live    2018-09-19 20:31:33  null
CF      192.168.100.34  4096    live    2018-09-19 20:31:40  null
D0      192.168.100.35  4096    live    2018-09-19 20:31:47  null
D1      192.168.100.37  4096    live    2018-09-21 20:31:23  null
D2      192.168.100.39  4096    live    2018-09-21 20:31:31  null
```

As you can see, hostnames are calculated automatically as well.

## Calculating the Swift ring

Before starting to install servers, the swift ring must be built.
Simply issue this command:

```
# ocicli swift-calculate-ring swift01
```

Note that it may take a very long time, depending on your cluster size.
This is expected. Just be patient.

## Installing servers

There's no (yet) a big "install the cluster" button on the web interface, or on
the CLI. Instead, servers must be installed one by one:

```
# ocicli machine-install-os C1
# ocicli machine-install-os C2
# ocicli machine-install-os C3
```

It is advised to first install the controller nodes, manually check that
they are installed correctly (for example, check that "openstack user list"
works), then the Swift store nodes, then the Swift proxy nodes. However,
nodes of the same type can be installed at once. Also, du to the use of
a VIP and corosync/pacemaker, controller nodes *must* be installed roughly
at the same time.

It is possible to see a server's installation log last lines using the
CLI as well:

```
# ocicli machine-install-log C1
```

This will show the logs of the system installation from /var/log/oci,
then once the server has rebooted, it will show the puppet logs from
/var/log/puppet-first-run.

## Checking your installation

Login on a controller node. To do that, list its IP:

```
# CONTROLLER_IP=$(ocicli machine-list | grep C1 | awk '{print $2}')
# ssh root@${CONTROLLER_IP}
```

Once logged into the controller, you'll see login credentials under
/root/oci-openrc.sh. Source it and try:

```
# . /root/oci-openrc.sh
# openstack user list
```

You can also try Swift:

```
# . /root/oci-openrc.sh
# openstack container create foo
# echo "test" >bar
# openstack object create foo bar
# rm bar
# openstack object delete foo bar
```

## Enabling Swift object encryption

Locally on the Swift store, Swift stores the object in clear form. This
means that anyone with physical access to the data center can pull a hard
drive and objects can be accessed from the /srv/node folder.
To mitigate this risk, Swift can do encryption of the objects it stores.
The metadata (accounts, containters, etc.) will still be stored in clear
form, but at least, the data that is stored encrypted.

The way this is implemented in OCI is to use Barbican. This is the reason
why Barbican is provisioned by default on the controller nodes. By default,
encryption isn't activated. To activate it, you must first store the key
for object encryption in the Barbican store. It can be done this way:

```
# ENC_KEY=$(openssl rand -hex 32)
# . swift-openrc
# openstack secret store --name swift-encryption-key \
  --payload-content-type=text/plain --algorithm aes \
  --bit-length 256 --mode ctr --secret-type symmetric \
  --payload ${ENC_KEY}
+---------------+--------------------------------------------------------------------------------------------+
| Field         | Value                                                                                      |
+---------------+--------------------------------------------------------------------------------------------+
| Secret href   | https://swift01-api.example.com/keymanager/v1/secrets/6ba8dd62-d752-4144-b803-b32012d707d0 |
| Name          | swift-encryption-key                                                                       |
| Created       | None                                                                                       |
| Status        | None                                                                                       |
| Content types | {'default': 'text/plain'}                                                                  |
| Algorithm     | aes                                                                                        |
| Bit length    | 256                                                                                        |
| Secret type   | symmetric                                                                                  |
| Mode          | ctr                                                                                        |
| Expiration    | None                                                                                       |
+---------------+--------------------------------------------------------------------------------------------+
```

Once that's done, the key ID (here: 6ba8dd62-d752-4144-b803-b32012d707d0)
has to be entered in the OCI's web interface, in the cluster definition,
under "Swift encryption key id (blank: no encryption):". This also can be
done using the OCI cli:

```
# ocicli cluster-set swift01 --swift-encryption-key-id 6ba8dd62-d752-4144-b803-b32012d707d0 --swift-disable-encryption no
```

Once that's done,
another puppet run is needed on the swift proxy nodes:

```
root@C1-swift01-swiftproxy-1>_ ~ # oci-puppet
```

This should enable encryption. Note that the encryption key must be stored
in Barbican under the user swift and project services, so that Swift has
access to it.

## Fixing useless node1 in corosync

Sometimes, "node1" appears when doing "crm status". To clean this
up, simply do:

```
crm_node -R node1 --force
```

## Fixing ceph -s

This fixes all Ceph warnings after a setup:

```
ceph osd pool application enable glance rbd
ceph osd pool application enable nova rbd
ceph osd pool application enable cinder rbd
ceph osd pool application enable gnocchi rbd
ceph osd pool application enable cinderback rbd
ceph mon enable-msgr2
```

Also, if using Ceph, one needs to create the CEPH_1 backend by hand:

```
openstack volume type create --property volume_backend_name=CEPH_1 --public CEPH_1
```

## Initial cluster setup variable

To avoid doing too many things when the cluster is in production (like, for
example, starting MySQL to do the initial Galera cluster setup), OCI has a
variable called "initial-cluster-setup". It is on by default on the first
runs, and after all controllers report a successful puppet run, this
variable is automatically set to no. Here's a (probably non-exhaustive) list
of things that OCI does only if initial-cluster-setup is set to yes:

- openstack-api-vip resource in corosync
- Galera cluster
- Make controllers join the rabbitmq cluster
- Heat and Magnum domain users
- Nova cells v2 configuration

At any moment, it is possible to switch the value to yes or no:

```
# ocicli cluster-set z --initial-cluster-setup no
```

however, it is strongly advised to set the value to no once the cluster is
in production.

Note that if the 3 controllers of your clusters succesfully run puppet at
the first startup, they will call "oci-report-puppet-success". Once the
third controller does that, initial-cluster-setup is automatically set to
the value "no" in the OCI database.

## Adding other types of nodes

OCI can handle, by default, the below types of nodes:

- cephmon: Ceph monitor
- cephosd: Ceph data machines
- compute: Nova compute and Neutron DVR nodes
- controller: The OpenStack control plane, running all API and daemons
- swiftproxy: Swift proxy servers
- swiftstore: Swift data machines
- volume: Cinder LVM nodes
- network: DHCP, IPv4 SNAT and IPv6 routing

It is only mandatory to install 3 controllers, then everything else is
optional. There's nothing to configure, OCI will understand what the
user wants depending of what type of nodes is provisioned.

If cephosd nodes are deployed, then everything will be using Ceph:
- Nova (ie: /var/lib/nova/instances over Ceph)
- Glance (images stored on Ceph)
- Cinder (cinder-volume deployed on compute nodes will be using the Ceph backend)

Though even with Ceph, setting-up volume nodes will add the LVM
backend capability. With or without volume nodes, if some OSD nodes
are deployed, cinder-volume and cinder-backup with Ceph backend will
be installed on the compute nodes.

Live migration of VMs between compute nodes is only possible if using
Ceph (ie: if some Ceph OSD nodes are deployed), or if using the
--block-migration option.

Ceph MON nodes are optional. If they aren't deployed, the Ceph MON and
MGR will be installed on the controller nodes.

Network nodes are optional. If they aren't deployed, the controllers
will act as SNAT and IPv6 routing nodes, and the DHCP servers will be
installed on the compute nodes.

# Advanced usage
## Using custom NTP servers

The default time server that will be configured on the nodes is
0.debian.pool.ntp.org. If you want to use a different NTP server then
you can configure this using the cluster-set command:

```
# ocicli cluster-set swift01 --time-server-host ntp1.some.domain
```

If you want to use multiple NTP servers then these can be specified
using the semicolon (;) as a delimiter. Note that you will need to
encapsulate the list in quotes to prevent your shell from splitting
this into multiple commands:

```
# ocicli cluster-set swift01 --time-server-host 'ntp1.some.domain;ntp2.some.domain'
```

## Using automated IPMI address configuration

Because it may take too much time to manage this manually, OCI offers the
possibility to automatically configure IPMI addresses of all discovered
servers. And because it is possible that in your network setup, there's
multiple IPMI networks depending on where the server is physically located,
OCI offers the possibility to automatically choose an IPMI network depending
on which DHCP network a server boots on the Debian live image.

The first thing to do is to define an IPMI network, set it with the role
"ipmi", and then make it match the IP address of the DHCP network:

```
# ocicli network-create ipmi 192.168.200.0 24 zone-1 no
# ocicli network-set ipmi --role ipmi --ipmi-match-addr 192.168.100.0 --ipmi-match-cidr 24
```

Once this is done, the automatic_ipmi_numbering=yes option must be set in
/etc/openstack-cluster-installer/openstack-cluster-installer.conf.

When this option is set, each time a server reports its hardware
configuration, OCI will check if it has a correct IPMI IP. If not, OCI will
ssh into the server and perform the necessary "ipmitool" commands to set a
valid network configuration. When doing so, the IP address will be reserved
in the "ips" table of OCI, making sure that never, an IP is used twice.

With the above example, if a server PXE boots on the 192.168.100.0/24
network, then it will automatically be assigned an IPMI ip address on the
192.168.200.0/24 network. Note that the IPMI password is randomly choosen.
As we're using openssl rand -base64, it may be a good idea to make sure that
your OCI server has a good source of entropy.

If previously, some servers had their IPMI address already set to something
that matches the IPMI network, but OCI didn't record it, it is possible to
get this IP address recorded in OCI's database. Just typing this command is
enough to do so:

```
# ocicli ipmi-assign-check
```

This command will ask OCI to go through each and every machine recorded in
the database, and check the detected IPMI address. If this address exists in
the database, nothing is done. If not, a new record will be added to the
database for this machine, to avoid later address conflict.

If the deployment contains some HP ProLiant DL385 Gen10 (Plus) machines,
it is possible to automatically install the ILO license. To do so, simply
drop a license file here:

/etc/openstack-cluster-installer/live-image-additions/root/License.xml

This file should be in this format:

```
<RIBCL VERSION="2.0">
<LOGIN USER_LOGIN="adminname" PASSWORD="password">
<RIB_INFO MODE="write">
<LICENSE>
<ACTIVATE KEY="LICENSE-GOES_HERE"/>
</LICENSE>
</RIB_INFO>
</LOGIN>
</RIBCL>
```

For this type of machines, after the IPMI change IP address, IPMI over
LAN is automatically activated, and the ILO is reset (because it wouldn't
take the new IP address otherwise).

## Automatic upgrade of BIOS and IPMI firmware

Upgrading the BIOS and IPMI firmware of servers can take a really long time
if managing a large number of servers. So OCI offers the possibility to
perform these upgrades automatically. This is controled using a
configuration file that can be find in here:
/etc/openstack-cluster-installer/oci-firmware-upgrade-config.json. Here is
an example valid configuration file:

```
{
	"CL2800 Gen10": {
		"BIOS": {
			"version": "2.1.0",
			"script": "/root/hp-bios-upgrade-2.1.0"
			},
		"IPMI": {
			"version": "2.22",
			"script": "/root/hp-ipmi-upgrade-2.22"
			}
	},
}
```

With the above, if OCI finds an HP Cloud Line CL2800 server that has the
BIOS firmware lower than 2.1.0, it will attempt to upgrade it by launching
the script /root/hp-bios-upgrade-2.1.0. To add the said script, the live
image must be customized. To do so, simply add some files under the folder
/etc/openstack-cluster-installer/live-image-additions. Every files that
are there will be added to the live image. Then the live image must be
regenerated:

```
# openstack-cluster-installer-build-live-image
```

Once this is done, reboot servers that must be upgraded. As they boot
on the live image, the upgrade will be performed. For reference, here is an
example hp-bios-upgrade-2.1.0 script, which will be dumped here:
/etc/openstack-cluster-installer/live-image-additions/root/hp-bios-upgrade-2.1.0.

```
#!/bin/sh

set -e
set -x

cd /root
tar -xvzf CL2600_CL2800_Gen10_BIOS_v2.1.0_11052019_Linux.tgz
cd CL2600_CL2800_Gen10_BIOS_v2.1.0_11052019_Linux/FlashTool/
./flash_bios.sh
reboot
sleep 20000
```

The "sleep 20000" is to make sure the OCI agent doesn't restart before the
machine is rebooted. YMMV depending on the upgrade that needs to be
performed.

## Customizing the /etc/hosts of all your cluster

It is possible to add some entries on all of the /etc/hosts of clusters, if
adding some entries to this file on the OCI server:

/etc/openstack-cluster-installer/hosts_append

All what OCI generates is located between these tags:

```
# OCISTA_MAINTAINED: Do not touch between these lines, this is a generated content.
... some generated content ...
# OCIFIN_MAINTAINED: Do not touch between these lines, this is a generated content.
```

Then it's possible to add some entries to each individual /etc/hosts
manually after the above tag, and these entries will be preserved.

## Customizing the ENC

In /etc/openstack-cluster-installer/hiera, you'll find 2 folders and a
all.yaml. These are to allow one to customize the output of OCI's ENC.
For example, if you put:

```
   ntp:
      servers:
         - 0.us.pool.ntp.org iburst
```

in /etc/openstack-cluster-installer/hiera/all.yaml, then all nodes will
be configured with ntp using 0.us.pool.ntp.org to synchronize time.

If we have a swift01 cluster, then the full folder structure is as follow:

```
/etc/openstack-cluster-installer/hiera/roles/controller.yaml
/etc/openstack-cluster-installer/hiera/roles/swiftproxy.yaml
/etc/openstack-cluster-installer/hiera/roles/swiftstore.yaml
/etc/openstack-cluster-installer/hiera/nodes/-hostname-of-your-node-.yaml
/etc/openstack-cluster-installer/hiera/all.yaml
/etc/openstack-cluster-installer/hiera/clusters/swift01/roles/controller.yaml
/etc/openstack-cluster-installer/hiera/clusters/swift01/roles/swiftproxy.yaml
/etc/openstack-cluster-installer/hiera/clusters/swift01/roles/swiftstore.yaml
/etc/openstack-cluster-installer/hiera/clusters/swift01/nodes/-hostname-of-your-node-.yaml
/etc/openstack-cluster-installer/hiera/clusters/swift01/all.yaml

```

## Custom OCI facts

OCI maintains a /etc/facter/facts.d/oci_facts.yaml file with puppet. This
file is also created at provisioning time. This helps cutomizing your
puppet server, so there's a fact for the role, cluster name, block device
controller and NIC driver.

## Customizing installed server at setup time

Sometimes, it is desirable to configure a server at setup time. For example,
it could be needed to configure routing (using BGP) for the virtual IP to be
available at setup time. OCI offers all what's needed in order to enrich the
server configuration at install time, before puppet agent even starts.

Say you want to configure swift01-controller-1 in your swift01 cluster, add
quagga to it, and add some configuration files. Simply create the folder,
fill content in it, and add a oci-packages-list file:

```
# mkdir -p /var/lib/oci/clusters/swift01/swift01-controller-1.example.com/oci-in-target
# cd /var/lib/oci/clusters/swift01/swift01-controller-1.example.com
# echo -n "quagga,tmux" >oci-packages-list
# mkdir -p oci-in-target/etc/quagga
# echo "some conf" >oci-in-target/etc/quagga/bgpd.conf
```

When OCI provision the baremetal server, it looks if the oci-packages-list
file exists. If it does, the packages are added when installing. Then the
oci-in-target content is copied into the target system.

## Using a BGP VIP

The same way, you can for example, decide to have the VIP of your
controllers to use BGP routing. To do that, write in
/etc/openstack-cluster-installer/roles/controller.yaml:

```
   quagga::bgpd:
      my_asn: 64496,
      router_id: 192.0.2.1
      networks4:
         - '192.0.2.0/24'
      peers:
         64497:
            addr4:
               - '192.0.2.2'
            desc: TEST Network
```

Though you may want to do this only for a specific node of a single
cluster of servers, rather than all. In such case, simply use this
filepath scheme:
/etc/openstack-cluster-installer/clusters/cloud1/nodes/cloud1-controller-1.example.com.yaml

For all controllers of the cloud1 cluster, use:
/etc/openstack-cluster-installer/clusters/cloud1/roles/controller.yaml

## Doing a test in OCI's manifests for debug purpose

If you would like to test a change in OCI's puppet files, edit them
in /usr/share/puppet/modules/oci, then on the master run, for example:

```
# puppet master --compile swift01-controller-1.example.com
# /etc/init.d/puppet-master stop
# /etc/init.d/puppet-master start
```

then on swift01-controller-1.example.com you can run:

```
# OS_CACERT=/etc/ssl/certs/oci-pki-oci-ca-chain.pem puppet agent --test --debug
```

## Customizing files and packages in your servers

If you wish to customize the file contents of your hosts, simply write
any file in, for example:

```
/var/lib/oci/clusters/swift01/swift01-controller-1.example.com/oci-in-target
```

and it will be copied in the server you'll be installing.

The same way, you can add additional packages to your server by adding their
names in this file:

```
/var/lib/oci/clusters/swift01/swift01-controller-1.example.com/oci-packages-list
```

Packages must be listed on a single line, separated by comas. For example:

```
quagga,bind
```

### Enabling Hiera for environment

If you need to enable Hiera, you can do it this way:
```
# mkdir -p /etc/puppet/code/environments/production/manifests/
# echo "hiera_include('classes')" > /etc/puppet/code/environments/production/manifests/site.pp
# cat /etc/puppet/code/hiera/common.yaml
---
classes:
  - xxx
...
```

# Once deployment is ready

There's currently a few issues that need to be addressed by hand. Hopefully,
all of these will be automated in a near future. In the mean while, please
do contribute the fixes if you find out how, or just do as per what's below.

## Fixing-up the controllers

Unfortunately, sometimes, there's some scheduling issues in the puppet
apply. If this happens, one can try to relaunch the puppet thing:

```
# OS_CACERT=/etc/ssl/certs/oci-pki-oci-ca-chain.pem puppet agent --test --debug 2>&1 | tee /var/log/puppet-run-1
```

Do this on the controller-1 node first, wait until it finishes, then restart
it on the other controller nodes.

## Adding custom firewall rules

OCI is using puppet-module-puppetlabs-firewall, and flushes iptables on each
run. Therefore, if you need custom firewall rules, you also have to do it
via puppet. If you want to do apply the same firewall rules on all nodes,
simply edit the site.pp like this in /etc/puppet/code/environments/production/manifests/site.pp:

```
hiera_include('classes')

firewall { '000 allow monitoring network':
  proto       => tcp,
  action      => accept,
  source      => "10.3.50.0/24",
}
```

Note that the firewall rule is prefixed with a number. This is mandatory.
Also, make sure that this number doesn't enter in conflict with an already
existing rule.

What's done by OCI is: protect the controller's VIP (deny access to it from
the outside), and protect the swiftstore ports for account, container and
object servers from any query not from within the cluster. So the above will
allow a monitoring server from 10.3.50.0/24 to monitor your swiftstore
does.

If you wish to have the above applied only to a specific node, it's possible
to do so by only matching some hostnames. Here's a simple example, with a
different IP allowed depending on the machine roles:

```
hiera_include('classes')

node /^z-controller.*/ {
  firewall { '000 allow monitoring network':
    proto       => tcp,
    action      => accept,
    source      => "10.1.2.0/24",
  }
}

node default {
  firewall { '000 allow monitoring network':
    proto       => tcp,
    action      => accept,
    source      => "10.3.4.0/24",
  }
}
```

## Adding compute nodes

With latest version of OCI, this is performed automatically: after a compute
node runs puppet with success, it calls oci-report-puppet-success, which
contacts the provisioning node, which in its turn ssh to one of the
controllers to run "nova-manage cell_v2 discover_hosts". So what's below is
only needed if the compute node didn't install correctly directly.

To add the compute node to the cluster and check it's there, on the controller, do:

```
# . oci-openrc
# su nova -s /bin/sh -c "nova-manage cell_v2 discover_hosts"
# openstack hypervisor list
+----+-------------------------------+-----------------+---------------+-------+
| ID | Hypervisor Hostname           | Hypervisor Type | Host IP       | State |
+----+-------------------------------+-----------------+---------------+-------+
|  4 | swift01-compute-1.example.com | QEMU            | 192.168.103.7 | up    |
+----+-------------------------------+-----------------+---------------+-------+
```

There's nothing more to it... :)

## Adding GPU support in a compute node

Currently, only Nvidia boards are supported, however, we welcome
contributions. First, locate your GPU in your compute host. Here's
an example with an Nvidia T4 board:

```
# lspci -nn | grep -i nvidia
5e:00.0 3D controller [0302]: NVIDIA Corporation TU104GL [Tesla T4] [10de:1eb8] (rev a1)
```

When you have that, simply enter it with ocicli:
```
# ocicli machine-set 1CJ9FV2 --use-gpu yes --gpu-vendor-id 10de --gpu-produc-id 1eb8 --gpu-name nvidia-t4 --gpu-device-type type-PF --vfio-ids 10de:1eb8+10de:0fb9
```

Please note that the IDs in the --vfio-ids must be separated by +, not by
a comma (conversion is done later on by OCI and Puppet).

Also, the --gpu-device-type depends on the type of GPU card and firmware
that you are using. For example, older Nvidia T4 firmware require type-PCI,
while newer firmware require type-PF. If you do a mistake here, then the
nova-scheduler will not know where to spawn a VM and will return "no valid
host".

This will populate /etc/modprobe.d/blacklist-nvidia.conf to blacklist the
Nvidia driver and a few others, /etc/modules-load.d/vfio.conf to load the
vfio-pci module, and /etc/modprobe.d/vfio.conf with this content (to allow
exposing devices to guests):

```
options vfio-pci ids=10de:1eb8,10de:0fb9
```

The /etc/default/grub should then be modified by hand to add this (manually):

```
intel_iommu=on
```

reboot the compute machine, apply puppet on both the compute and the
controllers.

Now, let's create the Glance image and Nova flavor to use this new
GPU and start the instance:

```
# openstack image set bionic-server-cloudimg-amd64_20190726_GPU --property img_hide_hypervisor_id='true'
# openstack flavor create --ram 6144 --disk 20 --vcpus 2 cpu2-ram6-disk20-gpu-nvidia-t4
# openstack flavor set cpu6-ram20-disk20-gpu-t4 --property pci_passthrough:alias=nvidia-t4:1
# openstack server create --image bionic-server-cloudimg-amd64_20190726_GPU --nic net-id=demo-net --key-name demo-keypair --flavor cpu6-ram20-disk20-gpu-nvidia-t4 my-instance-with-gpu
```

In the instance, we can use Cuda and check for it:

```
# wget http://developer.download.nvidia.com/compute/cuda/repos/ubuntu1804/x86_64/cuda-repo-ubuntu1804_10.1.168-1_amd64.deb
# apt-get update
# apt-get install cuda cuda-toolkit-10-1  nvidia-cuda-toolkit
# cat /proc/driver/nvidia/version
NVRM version: NVIDIA UNIX x86_64 Kernel Module  430.26  Tue Jun  4 17:40:52 CDT 2019
GCC version:  gcc version 7.4.0 (Ubuntu 7.4.0-1ubuntu1~18.04.1)
```

## Multiple Cinder LVM backends

If using more than one type of LVM backend (for example, SSD and HDD), it
may be useful to select the name of the backend when setting-up a new Volume
node. This is done this way:

```
# ocicli machine-set 1CJ9FV2 --lvm-backend-name HDD_1
```

You may also have multiple backends on a single server. In such case,
there's the possibility to use one backend per drive, instead of using them
all on a single VG. To do so, do something like this:

```
# ocicli machine set 5KC2J63 --cinder-separate-volume-groups yes --cinder-enabled-backends LVM_SDA:LVM_SDB:LVM_SDC
```

This will setup new volume types LVM_SDA, LVM_SDB, and LVM_SDC. To go
back to the normal way (ie: one big VG), it is possible to set back
the no-override value:

```
# ocicli machine-set 5KC2J63 no-override
```

though please take care, OCI will only do the right thing once, when
provisioning the system.

## Customizing the number of workers

A bit everywhere in OCI, the fact $::os_workers from puppet-openstack is
used to configure the number for workers. This is used for example for
the number of RPC workers, or for the number of API processes configured
for uwsgi. The default value is the number of core of your server, devided
by 2. To customize this value, simply write the fact in facter. This
simple command will set a value of 4 workers:

```
# echo "os_workers=4" >/etc/facter/facts.d/os_workers.txt
```

This will, for example, configure 4 Neutron RPC workers, and 4 processes
for the neutron-api. The same apply for all services.

It is also possible to be more granular using hiera.

# Advanced automation
## Hands off fully-automated installation

When managing large clusters, the hardware provisioning can take a long
chunk of your human time. There's unfortunately no way to compress the time
it takes for the hardware physical installation, but OCI is there to provide
a full installation without having to even type a single command line.

Hardware nodes are first booted into the Live environment, their hardware
is then discovered, and if it matches a hardware profile defined (by you)
in OCI, the server can be fully provisioned without any human being on the
keyboard.

This chapter is here to explain the reader how to set this up.

If one wishes to fully automate provisioning, here's the list of directives
to set in /etc/openstack-cluster-installer/openstack-cluster-installer.conf:

```
[megacli]
megacli_auto_clear=yes
megacli_auto_clear=yes
megacli_auto_clear_num_of_discovery=3
megacli_auto_apply=yes
megacli_auto_apply_num_of_discovery=7

[ipmi]
automatic_ipmi_numbering=yes
automatic_ipmi_username=ocirox

[dns_plugin]
call_dns_shell_script=yes

[root_pass_plugin]
call_root_password_change=yes

[monitoring_plugin]
call_monitoring_plugin=yes

[auto_provision]
auto_add_machines_to_cluster=yes
auto_add_machines_cluster_name=cluster1
auto_add_machines_num_of_discovery=9

[auto_racking]
auto_rack_machines_info=yes
auto_rack_machines_num_of_discovery=7

[auto_install_os]
auto_install_machines_os=yes
auto_install_machines_num_of_discovery=15
```

Note that all of the above is set to no by default.

On the above, we can see some directives with "num_of_discovery". What
happens is that when a machine boots into the OCI live image, the
openstack-cluster-installer-agent runs in loop, every 30 seconds (in fact,
anytime during a period of 30 seconds, as the script randomly waits to avoid
that all discovery agent report to OCI at the same time... but I'm
digressing here...). Each time the OCI agent reports a hardware configuration
for a server, a counter is incremented. That's our "num_of_discovery".
As the values for "num_of_discovery" are different, this kinds of produces
a scheduler of actions to perform on newly discovered servers. For example,
with the default values, here's the schedule (see below for the details
of each operation):

- setup of IPMI
- clearing of the RAID config
- applying the "machine-set"
- applying the RAID profile
- fetching the LLDP information to populate OCI (server dc, rack, U...)
- adding a server to the default cluster with the correct role
- install the operating system and reboot the server

Note that the default values for "num_of_discovery" are correct, and it
isn't advised to change them unless you are really sure of what you're
doing. For example, it is on purpose that a cycle of hardware discovery
is left between "clearing of the RAID config" and "applying the RAID
profile", and the LLDP discovery is left after many runs of the agent
as LLDP can sometimes take time.

To reset the number of discovery counter:

```
ocicli machine-report-counter-reset SERIAL
```

## Auto racking

OCI relies on the LLDP protocol to discover to which switch a server is
connected, and uses that information to tell where it is and what to do.
Your switch names to racking information is defined in a static Json file in
/etc/openstack-cluster-installer/auto-racking.json. It's done this way,
because one doesn't expect this data to change over time.

This file contains 3 main sections:
- productnames
- switchhostnames
- switchportnames

Under productnames, there's currently only a description of how many rack
unit a server needs.

OCI assumes that each server in each U will be connected to the matching
switch port number. For example, server in U-4 will be connected to the
switch port 4, as per the LLDP advertizing of your switch.

OCI will then read the productnames description, to tell
how many rack units a server takes.

OCI also assumes that each of your switches will be using LLDP to advertize
the switch names and ports, and that each switch is set with a unique
hostname in your data centers.

Let's take an example. Let's say we're having a switch number 5, in the
rack 3 of the row b, in data center 2. Let's have the hostname dc2-b3-5.
We'll then define in /etc/openstack-cluster-installer/auto-racking.json:

```
"switchhostnames": {
    "dc2-b3-5": {
        "dc": "2",
        "row": "b",
        "rack": "3",
        "location-name": "zone-3",
        "compute-aggregate": "AZ3"
    },
```

The above tells that everything connected to this switch will be
provisioned in OCI's location zone-3 (as per the "ocicli machine-add"
location parameter), and if it is a Nova compute server, it may be in
use in an aggregate named AZ3. This will be used below.

To be able to debug, a few commands are available:

```
ocicli machine-guess-racking SERIAL
```

this will tell where the machine is racked, given the information in the
auto-racking.json and the LLDP info advertized by the switch.

```
ocicli machine-auto-rack SERIAL
```

will populate the racking information.

```
ocicli machine-auto-add SERIAL
```

will add the server to the location defined in auto-racking.json and with
the role defined in the hardware profile.

## Hardware profiles

To be able to take decisions, OCI needs to auto-detect hardware, and
match it to a hardware profile. OCI takes a given hardware, and compares
to the list of profiles. Each time something doesn't match, a hardware
profile is removed from the list. If the user has designed the hardware
profiles correctly, at the end, only a single profile remains. When
that is the case, then the role define in that profile can be used,
and the RAID profile applied using MegaCli.

Here's an example:

```
    "compute-with-var-lib-nova-instance": {
        "role": "compute",
        "product-name": [
            "PowerEdge R640",
        ],
        "ram": {
            "min": 256,
            "max": 512
            },
        "hdd": {
            "controller": "megacli",
            "hdd-num-exact-match": "yes",
            "layout": {
                "0": {
                    "raid-type": 1,
                    "software-raid": "no",
                    "options": "WB RA Direct",
                    "size_min": 220,
                    "size_max": 250,
                    "num_min": 2,
                    "num_max": 2
                },
                "1": {
                    "raid-type": 1,
                    "software-raid": "no",
                    "options": "WB RA Direct",
                    "size_min": 800,
                    "size_max": 1800,
                    "num_min": 2,
                    "num_max": 4
                }
            }
        },
        "machine-set": [ "--use_ceph_if_available no --cpu-mode custom --cpu-model Skylake-Server-IBRS"],
        "after-puppet-controller-command": [
            "openstack compute service set --disable %%HOSTNAME%%",
            "openstack aggregate add host %%COMPUTE_AGGREGATE%% %%HOSTNAME%%",
            "openstack aggregate add host INTEL_COMPUTE %%HOSTNAME%%"
            ]
    },
```

The above profile will only match machines with product name "PowerEdge R640",
with between 256 and 512 GB of RAM, a LSI RAID controller, with exactly 2 system
disks of 220 to 250 GB, and 2 to 4 data disks of 800 to 1800 GB. When the
RAID profile is applied, it will provision 2 RAID1 arrays, one for the
system with the smaller drives, and another bigger one that will later be in use
in /var/lib/nova/instances.

What is in machine-set are ocicli commands to issue when the hardware
profile is recognized. On the above example, we can see that we're
setting-up a CPU model according to the hardware profile. Obviously, one can
set another hardware profile for "PowerEdge R6525" (this is an AMD machine)
with a different CPU model for it, for example.

What is in after-puppet-controller-command will be
issued after the first puppet run is successful. Feel free to add any
OpenStack command in there, knowing that %%HOSTNAME%% will be replaced by
the actual FQDN of the provisioned server, and %%COMPUTE_AGGREGATE%% will
be replaced by whatever is set in the auto-racking.json. Here, we use the
hardware profile to set the machine in an INTEL_COMPUTE aggregate, as this
cluster also has AMD compute nodes. We're also using %%COMPUTE_AGGREGATE%%
to set the correct availability zone automatically.

To check what hardware profile is matching a given server, one can type:

```
ocicli machine-guessed-profile SERIAL
```

It is also possible to manually apply a RAID profile with:

```
ocicli machine-megacli-reset-raid SERIAL
ocicli machine-megacli-apply SERIAL
```

Beware not to do the above on a server running in production.

## DNS plugin

OCI can call a custom script of your own to publish the node hostnames in
your DNS. Up to you to write it. The script will be called whenever servers
are added to a cluster (automatically or manually).

To test the DNS plugin, it is possible to manually call it using:

```
ocicli machine-to-dns HOSTNAME
```

## Root password plugin

When a machine is declared as installed, it is possible to automatically
set a password for it. That password can be saved somewhere (for example
using hashicorp vault, or a simple text file), using the plugin script.

To test the root password plugin, once a machine is installed, it is
possible to manually call it using:

```
ocicli machine-gen-root-pass HOSTNAME
```

## Monitoring plugin

OCI doesn't provide monitoring, but if you have such a service, for example
Zabbix, you can call a plugin script to register machines in the monitoring.

To manually call the monitoring registration plugin, one can type:

```
ocicli machine-to-monitoring HOSTHANE
```

# Managing the OpenStack deployment

## DNS inside OpenStack VMs

Different options for DNS resolution inside VMs are outlined at
https://docs.openstack.org/neutron/latest/admin/config-dns-res.html

### Case 1 - Each virtual network uses unique DNS resolvers

This is supported out-of-the box and requires no configuration in OCI.

Note that when using Case 1, because VMs are using a DNS resolver which resides
outside of their project, resolving the IPs of other VMs in the same subnet can
only be achieved using mDNS (which is enabled by default in Debian's
genericcloud image since bookworm), or by publishing DNS records somewhere that
the external DNS server can reach them (e.g. by using designate).

To use Case 1 ensure that no Neturon dnsmasq DNS servers have been set

```
# ocicli cluster-set swift01 --neutron-dnsmasq-dns-servers none
```

### Case 2a - DHCP agents forward queries to configured DNS servers

This is enabled by setting the 'Neutron dnsmasq\_dns\_servers' option on the
cluster. In this scenario VMs will send DNS queries to the subnet's dnsmasq
instance (which is also the DHCP server for the subnet). This will in turn
forward queries for external domains to the configured DNS servers. Note that if
the user specifies DNS servers when creating a subnet then these will be
assigned on the VM instead, which will then function as Case 1.

```
# ocicli cluster-set swift01 --neutron-dnsmasq-dns-servers '9.9.9.9;149.112.112.112'
```

Note that when using Case 2a care should be taken when choosing the DNS servers,
because the queries are sent from the dnsmasq process which is running on the
OpenStack node itself (which is inside the OpenStack management network).

You should also set the DHCP domain:

```
# ocicli cluster-set swift01 --dhcp-domain openstack.internal
```

This way DNS queries for `othervm` and `othervm.openstack.internal` will both
resolved to IPs

## Enabling cloudkitty rating

First, add the rating role to the cloudkitty user:

```
openstack role add --user cloudkitty --project services rating
```

Then, enable the hashmap module:

```
cloudkitty module enable hashmap
cloudkitty module set priority hashmap 100
```

Note that the error 503 may be just ignored, it still works, as "module
list" shows. Now, let's add rating for instances:

```
cloudkitty hashmap group create instance_uptime_flavor
cloudkitty hashmap service create compute
cloudkitty hashmap field create 96a34245-83ae-406b-9621-c4dcd627fb8e flavor
```

The above ID is the one of the hashmap service create. Then we reuse the ID
of the field create we just had for the -f parameter, and the group ID for
the -g parameter below:
```
cloudkitty hashmap mapping create --field-id ce85c041-00a9-4a6a-a25d-9ebf028692b6 --value demo-flavor -t flat -g 2a986ce8-60a3-4f09-911e-c9989d875187 0.03
```

## Writing custom pollsters to bill specific things

In this example, we'll prentend we want to bill any port on a specific
network called "ext-net1" which holds public IP addresses. To do this,
we need to have ceilometer-polling, in the 3 controllers, to query the
Neutron API every 5 minutes, and ask for all ports using the network
"ext-net1". Each port associated with an OpenStack project will need
a custom record in the Gnocchi time series.

So, first, we need to design our pollster (ie: the thing which will
query the API). Let's say that when we do this:

```
openstack port list --network ext-net1 --long --debug
```

the debug mode shows that we can translate this into this curl query:

```
curl -g -X GET "https://pub1-api.cloud.infomaniak.ch/network/v2.0/ports?network_id=5a7f5f53-627c-4d0e-be89-39efad5ac54d" \
	-H "Accept: application/json" -H "User-Agent: openstacksdk/0.50.0 keystoneauth1/4.2.1 python-requests/2.23.0 CPython/3.7.3" \
	-H "X-Auth-Token: "$(openstack token issue --format value -c id) | jq .
```

the OpenStack API repling this way:

```
{
  "ports": [
    {
      "id": "c558857c-d010-41ba-8f93-08c3cb876ebe",
      "name": "",
      "network_id": "5a7f5f53-627c-4d0e-be89-39efad5ac54d",
      "tenant_id": "ac4fafd60021431585bbb23470119557",
      "mac_address": "fa:16:3e:d5:3f:13",
      "admin_state_up": true,
      "status": "ACTIVE",
      "device_id": "0c2b0e8f-0a59-4d81-9545-fd90dc7fee73",
      "device_owner": "compute:b4",
      "fixed_ips": [
        {
          "subnet_id": "615ddc30-2ed5-4b0a-aba7-acb19b843276",
          "ip_address": "203.0.113.14"
        },
        {
          "subnet_id": "2c7d6ee4-d317-4749-b6a5-339803ac01f2",
          "ip_address": "2001:db8:1:1::2e8"
        }
      ],
      "allowed_address_pairs": [],
      "extra_dhcp_opts": [],
      "security_groups": [
        "5d9b69fb-2dae-4ed2-839c-91f645d53eeb",
        "c901c534-fd90-4738-aa6b-007cd7a5081b"
      ],
      "description": "",
      "binding:vnic_type": "normal",
      "binding:profile": {},
      "binding:host_id": "cl1-compute-8.example.com",
      "binding:vif_type": "ovs",
      "binding:vif_details": {
        "connectivity": "l2",
        "port_filter": true,
        "ovs_hybrid_plug": true,
        "datapath_type": "system",
        "bridge_name": "br-int"
      },
      "port_security_enabled": true,
      "qos_policy_id": null,
      "qos_network_policy_id": null,
      "resource_request": null,
      "ip_allocation": "immediate",
      "tags": [],
      "created_at": "2021-02-25T08:57:30Z",
      "updated_at": "2021-02-25T09:42:47Z",
      "revision_number": 8,
      "project_id": "ac4fafd60021431585bbb23470119557"
    }
  ]
}
```

We then create the matching resource-type in Gnocchi:

TODO: this isn't clear yet what to do...

```
gnocchi resource-type create -a status:string:true:max_length=3 -a device_id:uuid:false -a mac_address:string:true:max_length=20  network.ports.ext-net1
gnocchi resource-type create -a status:string:false:max_length=3 -a mac_address:string:false:max_length=20 public_ip
gnocchi resource-type create -a cidr:string:false:max_length=4 -a network_id:uuid:false -a description:string:false:max_length=64 public_subnet
```

In /etc/openstack-cluster-installer/pollsters.d, we simply write a new file
that looks like this:

```
---

- name: "network.ports.ext-net1"
  sample_type: "gauge"
  unit: "ip"
  endpoint_type: "network"
  url_path: "/network/v2.0/ports?network_id=5a7f5f53-627c-4d0e-be89-39efad5ac54d"
  value_attribute: "status"
  response_entries_key: "ports"
  project_id_attribute: "project_id"
  value_mapping:
    ACTIVE: "1"
  metadata_fields:
    - "mac_address"
    - "device_id"
    - "device_owner"
    - "fixed_ips"
    - "binding:vnic_type"
    - "binding:host_id"
    - "binding:vif_type"
    - "created_at"
    - "updated_at"
```

The url_path above matches what we write in the curl query. The response_entries_key
is the name of the toplevel object the json object that Neutron replies.
Writing this in /etc/openstack-cluster-installer/pollsters.d/ext-net-ports.yaml
is the only thing that's necessary. OCI will automatically write this file
in /etc/ceilometer/pollsters.d in the controller nodes, and list this
pollster in /etc/ceilometer/polling.yaml.

:warning: Warning: Your custome pollster file must be readable by _www-data_
user, or it will break Ceilometer as OCI will not be able to read file content
and will push an empty pollster (and this cause Ceilometer crash on start).

## Installing a first OpenStack image

```
wget http://cdimage.debian.org/cdimage/openstack/current-9/debian-9-openstack-amd64.qcow2
openstack image create \
	--container-format bare --disk-format qcow2 \
	--file debian-9-openstack-amd64.qcow2 \
	debian-9-openstack-amd64
```

## Setting-up networking

There's many ways to handle networking in OpenStack. This documentation only
quickly covers one way, and it is out of the scope of this doc to explain
all of OpenStack networking. However, the reader must know that OCI is
setting-up compute nodes using DVR (Distributed Virtual Routers), which
means a Neutron router is installed on every compute nodes. Also,
OpenVSwitch is used, using VXLan between the compute nodes. Anyway, here's
one way to setup networking. Something like this may do it:

```
# Create external network
openstack network create --external --provider-physical-network external --provider-network-type flat ext-net
openstack subnet create --network ext-net --allocation-pool start=192.168.105.100,end=192.168.105.199 --dns-nameserver 84.16.67.69 --gateway 192.168.105.1 --subnet-range 192.168.105.0/24 --no-dhcp ext-subnet

# Create internal network
openstack network create --share demo-net
openstack subnet create --network demo-net --subnet-range 192.168.200.0/24 --dns-nameserver 84.16.67.69 demo-subnet

# Create router, add it to demo-subnet and set it as gateway
openstack router create demo-router
openstack router add subnet demo-router demo-subnet
openstack router set demo-router --external-gateway ext-net

# Create a few floating IPs
openstack floating ip create ext-net
openstack floating ip create ext-net
openstack floating ip create ext-net
openstack floating ip create ext-net
openstack floating ip create ext-net

# Add rules to the admin's security group to allow ping and ssh
SECURITY_GROUP=$(openstack security group list --project admin --format=csv | q -d , -H 'SELECT ID FROM -')
openstack security group rule create --ingress --protocol tcp --dst-port 22 ${SECURITY_GROUP}
openstack security group rule create --protocol icmp --ingress ${SECURITY_GROUP}
```

## Adding an ssh key

```
openstack keypair create --public-key ~/.ssh/id_rsa.pub demo-keypair
```

## Creating flavor

```
openstack flavor create --ram 2048 --disk 5 --vcpus 1 demo-flavor
openstack flavor create --ram 6144 --disk 20 --vcpus 2 cpu2-ram6-disk20
openstack flavor create --ram 12288 --disk 40 --vcpus 4 cpu4-ram12-disk40
```

## Boot a VM

```
#!/bin/sh

set -e
set -x

NETWORK_ID=$(openstack network list --name demo-net -c ID -f value)
IMAGE_ID=$(openstack image list -f csv 2>/dev/null | q -H -d , "SELECT ID FROM - WHERE Name LIKE 'debian-10%.qcow2'")
FLAVOR_ID=$(openstack flavor show demo-flavor -c id -f value)

openstack server create --image ${IMAGE_ID} --flavor ${FLAVOR_ID} \
	--key-name demo-keypair --nic net-id=${NETWORK_ID} --availability-zone nova:z-compute-1.example.com demo-server
```

## Add Octavia service
### Scripted setup
All of what's done below can be done with 2 helper scripts:

```
oci-octavia-amphora-secgroups-sshkey-lbrole-and-network
oci-octavia-certs
```

First, edit /usr/bin/oci-octavia-amphora-secgroups-sshkey-lbrole-and-network
header. There, you'll find these values:

```
# Set to either flat or vlan
OCTAVIA_NETWORK_TYPE=flat
# Set to the ID of the Octavia VLAN if the above is set to vlan
OCTAVIA_NETWORK_VLAN=876
# Set this to a value that matches something listed in /etc/neutron/plugins/ml2/ml2_conf.ini
# either in [ml2_type_flat]/flat_networks or in [ml2_type_vlan]/network_vlan_ranges
OCTAVIA_PHYSNET_NAME=external1

OCTAVIA_SUBNET_RANGE=192.168.104.0/24
OCTAVIA_SUBNET_START=192.168.104.4
OCTAVIA_SUBNET_END=192.168.104.250
OCTAVIA_SUBNET_GW=192.168.104.1
OCTAVIA_SUBNET_DNS1=84.16.67.69
OCTAVIA_SUBNET_DNS2=84.16.67.70
```

Edit them to your taste. If you're running with vlan, then the value for
OCTAVIA_NETWORK_TYPE must be vlan, and the value for OCTAVIA_PHYSNET_NAME
must be "external". The IPs described above must be routable from the
controller nodes.

Once edit is done, run the first script, then tell OCI what security group
and network boot to use like this:

```
ocicli cluster-set CLUSTER_NAME --amp-secgroup-list SECGROUP_ID_1,SECGROUP_ID_2d5681bb2-044c-4de2-9f81-c3ca7d91abb6
ocicli cluster-set ver1 --amp-boot-network-list LOAD_BALANCER_NETWORK_ID
```

These IDs may be found in the logs when running
oci-octavia-amphora-secgroups-sshkey-lbrole-and-network, or in
/etc/octavia/octavia.conf under amp_secgroup_list and amp_boot_network_list.

Now, run oci-octavia-certs on one of the controllers, then
copy over /etc/octavia/.ssh and /etc/octavia/certs to the
other controllers.

```
rsync -e 'ssh -o UserKnownHostsFile=/dev/null -o StrictHostKeyChecking=no' -avz --delete /etc/octavia/certs/ root@z-controller-2:/etc/octavia/certs/
rsync -e 'ssh -o UserKnownHostsFile=/dev/null -o StrictHostKeyChecking=no' -avz --delete /etc/octavia/certs/ root@z-controller-3:/etc/octavia/certs/
rsync -e 'ssh -o UserKnownHostsFile=/dev/null -o StrictHostKeyChecking=no' -avz --delete /etc/octavia/.ssh/ root@z-controller-2:/etc/octavia/.ssh/
rsync -e 'ssh -o UserKnownHostsFile=/dev/null -o StrictHostKeyChecking=no' -avz --delete /etc/octavia/.ssh/ root@z-controller-3:/etc/octavia/.ssh/
```

Now, restart octavia-worker, octavia-health-manager
and octavia-housekeeping. The copy can be done this way:

That's it, it should work now!

### Manual setup
If you wish to do things manually, here's how it works.

Create the Amphora image. This can be done with DIB (Disk Image Builder)
like this:

```
sudo apt-get install openstack-debianimages
/usr/share/doc/openstack-debian-images/examples/octavia/amphora-build
openstack image create --container-format bare --disk-format qcow2 --file debian-buster-octavia-amphora-2019.09.11-11.52-amd64.qcow2 --tag amphora debian-buster-octavia-amphora-2019.09.11-11.52-amd64.qcow2
```

Create the Octavia network. If, like in the PoC package, you are
running with a specific br-lb bridge bound to an external network called
external1, something like this will do:

```
openstack network create --external --provider-physical-network external1 --provider-network-type flat lb-mgmt-net
openstack subnet create --network lb-mgmt-net --allocation-pool start=192.168.104.4,end=192.168.104.250 --dns-nameserver 84.16.67.69 --dns-nameserver 84.16.67.70 --gateway 192.168.104.1 --subnet-range 192.168.104.0/24 lb-mgmt-subnet
```

The above example is for when you're not running with vlan, but have
a specific network card for the Octavia network.

Then we need s specific security groups for Octavia (make sure to use
/root/octavia-openrc, not the admin's one):

```
openstack security group create lb-mgmt-sec-grp
openstack security group rule create --protocol icmp lb-mgmt-sec-grp
openstack security group rule create --protocol tcp --dst-port 22 lb-mgmt-sec-grp
openstack security group rule create --protocol tcp --dst-port 9443 lb-mgmt-sec-grp
openstack security group rule create --protocol icmpv6 --ethertype IPv6 --remote-ip ::/0 lb-mgmt-sec-grp
openstack security group rule create --protocol tcp --dst-port 22 --ethertype IPv6 --remote-ip ::/0 lb-mgmt-sec-grp
openstack security group rule create --protocol tcp --dst-port 9443 --ethertype IPv6 --remote-ip ::/0 lb-mgmt-sec-grp

openstack security group create lb-health-mgr-sec-grp
openstack security group rule create --protocol udp --dst-port 5555 lb-health-mgr-sec-grp
openstack security group rule create --protocol udp --dst-port 5555 --ethertype IPv6 --remote-ip ::/0 lb-health-mgr-sec-grp
```

Then we create an ssh keypair:

```
mkdir /etc/octavia/.ssh
ssh-keygen -t rsa -f /etc/octavia/.ssh/octavia_ssh_key
chown -R octavia:octavia /etc/octavia/.ssh
rsync -e 'ssh -o UserKnownHostsFile=/dev/null -o StrictHostKeyChecking=no' -avz --delete /etc/octavia/.ssh/ root@z-controller-2:/etc/octavia/.ssh/
rsync -e 'ssh -o UserKnownHostsFile=/dev/null -o StrictHostKeyChecking=no' -avz --delete /etc/octavia/.ssh/ root@z-controller-3:/etc/octavia/.ssh/
. /root/octavia-openrc
openstack keypair create --public-key /etc/octavia/.ssh/octavia_ssh_key.pub octavia-ssh-key
```

Make the certs as per the upstream tutorial at https://docs.openstack.org/octavia/latest/admin/guides/certificates.html

Rsync the certs to the other 2 controllers:

```
rsync -e 'ssh -o UserKnownHostsFile=/dev/null -o StrictHostKeyChecking=no' -avz --delete /etc/octavia/certs/ root@z-controller-2:/etc/octavia/certs/
rsync -e 'ssh -o UserKnownHostsFile=/dev/null -o StrictHostKeyChecking=no' -avz --delete /etc/octavia/certs/ root@z-controller-3:/etc/octavia/certs/
```

Edit octavia.conf and set amp_boot_network_list and amp_secgroup_list IDs.

Then restart all Octavia services on all controllers.

Create the load-balancer_admin role and assign it:

```
openstack role create load-balancer_admin
openstack role add --project admin --user admin load-balancer_admin
```

Now, one must set, with ocicli, the boot network and security group list for
the amphora:

```
ocicli cluster-set swift01 \
	--amp-boot-network-list 0c50875f-368a-4f43-802a-8350b330c127 \
	--amp-secgroup-list b94afddb-4fe1-4450-a1b8-25f36a354b7d,012584cd-ffde-483b-a55a-a1afba52bc20
```

Then we can start using Octavia:

```
openstack loadbalancer create --name lb-test-1 --vip-subnet-id ext-subnet
```
How to use the load balancer is described here:

https://docs.openstack.org/octavia/latest/user/guides/basic-cookbook.html

Don't forget to create the flavor:

```
openstack flavor create --ram 2048 --disk 4 --vcpus 2 --id 65 --private --project services octavia_65
```

### Using Octavia as an HTTPS load balancer for 2 web servers

The OpenStack documentation has all what you need at:
https://docs.openstack.org/octavia/latest/user/guides/basic-cookbook.html

However, here's an example creating a loadbalancer with an HTTPS
certificate.

Creating the load balancer for the "foo" service:
```
openstack loadbalancer create \
    --name lb-foo \
    --vip-subnet-id pub01-subnet2
```

Create the certificate and store it in Barbican. First, create a normal
x509 certificate, with the key, crt and ca-chain files. Then convert it
to a pkcs12 cert using this command:

```
openssl pkcs12 -export -inkey server.key -in server.crt -certfile ca-chain.crt -passout pass: -out server.p12
```

Then we store it in Barbican, and keep its resulting address:
```
openstack secret store --name='tls_secret1' -t 'application/octet-stream' -e 'base64' --payload="$(base64 < server.p12)"
```

Creating the listener:
```
openstack loadbalancer listener create \
    --name lb-foo-https \
    --protocol TERMINATED_HTTPS \
    --protocol-port 443 \
    --default-tls-container-ref https://z-api.example.com/keymanager/v1/secrets/e2e590a4-08b7-40e7-ab52-c06fd3a0a2dd \
    lb-foo
```

Creating the pool:
```
openstack loadbalancer pool create \
    --name pool-foo-https \
    --protocol TERMINATED_HTTPS \
    --listener lb-foo-https \
    --lb-algorithm ROUND_ROBIN
```

Creating the pool members:
```
openstack loadbalancer member create \
    --name foo-member-1-https \
    --address 10.4.42.10 \
    --protocol-port 443 \
    --subnet-id e499c943-09bb-46b7-8463-8d83ce51e830 \
    pool-foo-https
openstack loadbalancer member create \
    --name foo-member-2-https \
    --address 10.4.42.4 \
    --protocol-port 443 \
    --subnet-id e499c943-09bb-46b7-8463-8d83ce51e830 \
    pool-foo-https
```

## Setting-up no limits for services resources

As some services may spawn instances, like for example Octavia or Magnum, it
may be desirable to set no limit for some resources of the services project:

```
openstack quota set --secgroup-rules -1 --secgroups -1 --instances -1 --ram -1 --cores -1 --ports -1 services
```

The quota will apply for the virtual resources the services project will
create, for example, use openstack loadbalancer quota show PROJECT_NAME to
set the max number of loadbalancer for a project.

## Add Magnum service

First, upload the coreos image and set the property correctly:

```
openstack image create --file coreos_production_openstack_image.img coreos_production_openstack_image.img
openstack image set --property os_distro=coreos coreos_production_openstack_image.img
```

Then create the COE template:

```
openstack coe cluster template create k8s-cluster-template \
    --image coreos_production_openstack_image.img --keypair demo-keypair \
    --external-network ext-net --dns-nameserver 84.16.67.69 --flavor demo-flavor \
    --docker-volume-size 5 --network-driver flannel --coe kubernetes
```

Then create the Magnum cluster:

```
openstack coe cluster create k8s-cluster \
                      --cluster-template k8s-cluster-template \
                      --master-count 1 \
                      --node-count 2
```

Looks like coreos wouldn't work for k8s. Instead:

```
wget https://download.fedoraproject.org/pub/alt/atomic/stable/Fedora-Atomic-27-20180419.0/CloudImages/x86_64/images/Fedora-Atomic-27-20180419.0.x86_64.qcow2
openstack image create \
                      --disk-format=qcow2 \
                      --container-format=bare \
                      --file=Fedora-Atomic-27-20180419.0.x86_64.qcow2 \
                      --property os_distro='fedora-atomic' \
                      fedora-atomic-latest
openstack coe cluster template create kubernetes-cluster-template \
	--image fedora-atomic-latest --keypair demo-keypair \
	--external-network ext-net --dns-nameserver 84.16.67.69 \
	--master-flavor demo-flavor --flavor demo-flavor \
	--docker-volume-size 5 --network-driver flannel \
	--coe kubernetes
```

## Replacing a broken server

Sometimes, hardware fail. In such situation, you may want to simply
replace a server by a new one. Though the new server comes with a new
serial number, and will probably boot up in live, and show up in OCI.
Here's how to do.

If you've put the old server's SSD / HDD in the new one, and told the
BIOS to boot on them, it will boot with the old server's hostname
configured. What we should do now, is simply clean-up the OCI db entries.

First, let's remove the new server:

```
ocicli machine-destroy SERIAL
```

Now, let's update the old broken server serial number in the OCI db:

```
mysql -Doci -e "UPDATE machines SET serial='6B12345' WHERE hostname='cl1-compute-62.example.com'"
```

Let's now set the IPMI of the new server with the config of the old one:

```
ocicli machine-apply-ipmi cl1-compute-62.example.com
```

Finally, the server counter may have increased when the new server
booted in live. If the auto-provisionning was on, it was added
as a new compute. In this case, simply set the counter:

```
ocicli cluster-rolecounts-set cl1 compute 84
```

## Secure boot and dkms

If necessary (up to you), it is possible to enable secure boot, which is
fully supported by OCI. Though there's still the issue that kernel modules
needs to be signed to be able to load them. OCI offers the facility to
configure servers for DKMS auto-signing. To do so, on each server, it
is necessary to create a MOK (Machine Onwer Key):

```
# mkdir -p /var/lib/shim-signed/mok/
# cd /var/lib/shim-signed/mok/
# openssl req -nodes -new -x509 -newkey rsa:2048 -keyout MOK.priv -outform DER -out MOK.der -days 36500 -subj "/CN=My Name/"
# openssl x509 -inform der -in MOK.der -out MOK.pem
```

Once the key is created, it must be enrolled in SHIM:

```
# mokutil --import /var/lib/shim-signed/mok/MOK.der
```

this will prompt for a one time password. Then reboot the server, and
when the SHIM screen shows up, press any key, then select "Enroll key".
This will prompt for the enroll password entered when doing --import
just above. It will then show a "reboot" option (choose that one).

Once rebooted with the new key enrolled, it is possible to check if
the key is correctly in:

```
# mokutil --test-key /var/lib/shim-signed/mok/MOK.der
/var/lib/shim-signed/mok/MOK.der is already enrolled
```

if the output is just like above, then it's done. There's only one
thing to do now, which is to tell OCI we want DKMS configured on that
server:

```
ocicli machine-set cl1-compute-3.example.com --configure-dkms yes
```

On next puppet run, dkms, linux-kebuild and linux-headers will be
installed, and /etc/dkms/framework.conf will be configured with:

```
mok_signing_key=/var/lib/shim-signed/mok/MOK.priv
mok_certificate=/var/lib/shim-signed/mok/MOK.der
sign_tool=/etc/dkms/sign_helper.sh
```

with sign_helper.sh containing:

```
#!/bin/sh

/lib/modules/"$1"/build/scripts/sign-file sha512 /root/.mok/client.priv /root/.mok/client.der "$2"
```

which should be enough to get the server ready to sign DKMS modules
automatically with this new MOK key. Enjoy secure-boot! :)

# Using Telemetry and Rating

## How it works

The Ceilometer project is responsible for collecting raw metrics. For
example, on the compute nodes, ceilometer-polling is deployed using the
compute namespace (ie: DEFAULT/polling_namespaces=compute). On the
controllers, Ceilometer uses the central namespace (ie: it does polling
on the OpenStack API).

All of the collected data (from ceilometer-polling on compute and controller
as explained above, or from all the different OpenStack services like
ceilometermiddleware, glance, nova, neutron-metering, etc.) are sent to the
rabbitmq notification bus. If You've setup 3 messaging nodes with OCI, then
the notification bus will be on a separate rabbitmq cluster.

Then ceilometer-notification-agent (setup on the controller nodes) will
gather the metrics it sees on the rabbitmq bus, and send them to Gnocchi
that will store it in its timeseries database. OCI setups Gnocchi with
Galera cluster + Ceph as a backend. If you have messaging nodes, Gnocchi
will use the Galera cluster on these nodes, otherwise, the controller nodes
are used. If you've setup billosd + billmon nodes Gnocchi will use them for
the time series database, otherwise a unique Ceph is used (the same as for
the Cinder volume service). At scale, it is strongly recommended to setup
the 3 billing node types (ie: messaging, billmon and billosd nodes),
otherwise your controlle plane may be affected by constant billing operations.

Once the data has reached Gnocchi, the cloudkitty-processor daemon starts
a task every hour to process all of the raw metrics of every  project,
and attempts to rate them according to Cloudkitty configuration.

:warning: Warning: if Gnocchi is down on messaging nodes, ceilometer-notification-agent could quickly fill RabbitMQ service (dedicated one, but still). There is a switch in OCI to disable notifications from ceilometer :

```
ocicli cluster-set cl1 --disable-notifications
```

## Add billing of instances

The below script will rate "demo-flavor" at 0.01:

```
cloudkitty module enable hashmap
cloudkitty module set priority hashmap 100
cloudkitty hashmap group create instance_uptime_flavor_id
GROUP_ID=$(cloudkitty hashmap group list -f value -c "Group ID")

cloudkitty hashmap service create instance
SERVICE_ID=$(cloudkitty hashmap service list -f value -c "Service ID")

cloudkitty hashmap field create ${SERVICE_ID} flavor_id
FIELD_ID=$(cloudkitty hashmap field list ${SERVICE_ID} -f value -c "Field ID")

FLAVOR_ID=$(openstack flavor show demo-flavor -f value -c id)

cloudkitty hashmap mapping create 0.01 --field-id ${FIELD_ID} --value ${FLAVOR_ID} -g ${GROUP_ID} -t flat
```

The rest may be found here: https://docs.openstack.org/cloudkitty/latest/user/rating/hashmap.html

Also, add the role rating to the admin:

```
openstack role add --user admin --project admin rating
```

Note: currently, after installing the cluster, all ceilometer agents must be
restarted in order to obtain metrics, even though they appear to be well
configured.

## Configuring a custom metric and billing

Let's pretend that we have a custom public network doing direct attach to VMs.
In such case, customers will simply reserve a port on that network and will
attach them to VMs. These public IPs will not be accounted as floating IPs,
and therefore, will not be accounted in the billing, unless we do something
about it. Here is how. Let's call this network "external-network".

First, we need to get ceilometer-polling to poll the Neutron API for the
ports used on external-network. This is done using a "dynamic pollster": this is an
API pollster that is custom to our setup. To do so, we simply edit a new
file in /etc/openstack-cluster-installer/pollsters.d and that's it. OCI
will then copy its content in all the controller of the cluster, and
configure ceilometer-polling to use the custom dynamic pollster. Here
is an example of such a pollster:

```
cat ports.yaml
---

- name: "external-network-public-ip"
  sample_type: "gauge"
  unit: "ip"
  endpoint_type: "network"
  url_path: "/network/v2.0/ports?network_id=e060d063-c73c-4022-b92a-1d025c5f7107"
  value_attribute: "status"
  response_entries_key: "ports"
  project_id_attribute: "project_id"
  value_mapping:
    ACTIVE: "1"
  metadata_fields:
    - "mac_address"
    - "device_id"
```

The url_path above can be found using a simple OpenStack command:

```
openstack --debug port list --network e060d063-c73c-4022-b92a-1d025c5f7107
```

Best is to even add the --format json to the above command, as this is how
the Ceilometer pollster will see it (that way, it is easier to see what kind
of metadata_fields there could be).

Once that's done, a new resource type external-network-public-ip will be used
by ceilometer-polling to store the raw metrics. This will not work unless
we create such a resource type (ie: ceilometer-notification-agent will
complain that the resource type doesn't exist and will not store anything).
This can be done this way:

```
gnocchi resource-type create -a status:string:true:max_length=3 -a device_id:uuid:false -a mac_address:string:true:max_length=20 external-network-public-ip
```

Note that Gnocchi understands only the types string, uuid and date. The
"false" at the end of a metric type tells that the field isn't mandatory.

Note that it's also possible to edit /etc/openstack-cluster-installer/gnocchi_resources.yaml
instead, and run ceilometer-upgrade which will also create the resource
types (this is how Ceilometer initializes all of the "standard" resource
types there is in Gnocchi).

If we wait a little while, the new metrics should appear in Gnocchi. If they
do not, no need to read further: you need to fix your Ceilometer and Gnocchi
settings. Best is probably to read the ceilometer-notification-agent.log
files, as this is where the Ceilometer data will be recorded in Gnocchi
(sent by either ceilometer-polling in the controllers, or maybe
ceilometer-polling in a compute node, or by different daemons, like for
example ceilometer-middleware in a swift proxy, Glance itself, etc.).

Once you have raw metrics, it's time to tell Cloudkitty about them, so
it can rate them. This is done in the metrics.yml file of
cloudkitty-processor, which can be edited in /etc/openstack-cluster-installer/metrics.yml
(it is read there, and transported by puppet on your 3 controller (or
messaging nodes if you have some)).

Here's an example metrics.yaml entry for our external-network network:

```
grep -A8 external-network /etc/openstack-cluster-installer/metrics.yml
  external-network-public-ip:
    unit: ip
    groupby:
      - id
      - project_id
    extra_args:
      aggregation_method: mean
      resource_type: public_ip
      force_granularity: 300
```

Once that is done, puppet will install the new metrics.yml in your
controller/messaging nodes, and restart cloudkitty-processor. That
is enough to see the entry in a "openstack rating dataframes get"
command, but not enough to have it rated: we must add a price to
this type of resource. Here's how to do that:

```
#!/bin/sh

set -e

get_or_create_hashmap_group () {
        GROUP_NAME=$1
        # Create group:
        echo "---> Searching for hashmap group ${GROUP_NAME}"
        if ! cloudkitty hashmap group list --format value -c Name | grep -E '^'${GROUP_NAME}'$' ; then
                echo "-> Didn't find: creating..."
                cloudkitty hashmap group create ${GROUP_NAME}
        fi
        echo -n "-> Getting ID: "
        HASHMAP_GROUP=$(cloudkitty hashmap group list --format csv -c Name -c 'Group ID' | q -H -d, "SELECT \`Group ID\` FROM - WHERE Name='${GROUP_NAME}'")
        echo ${HASHMAP_GROUP}
}

get_or_create_hashmap_service () {
        SERVICE_NAME=$1
        echo "---> Searching for hashmap service ${SERVICE_NAME}"
        if ! cloudkitty hashmap service list --format value -c Name | grep -E '^'${SERVICE_NAME}'$' ; then
                cloudkitty hashmap service create ${SERVICE_NAME}
        fi
        echo -n "-> Getting ID: "
        HASHMAP_SERVICE=$(cloudkitty hashmap service list --format csv -c Name -c 'Service ID' | q -H -d, "SELECT \`Service ID\` FROM - WHERE Name='${SERVICE_NAME}'")
        echo ${HASHMAP_SERVICE}
}

get_or_create_hashmap_group public_ip
get_or_create_hashmap_service external-network-public-ip
set_hashmap_mapping_price 0.01
```

Like this, we have any port on external-network-public-ip priced at 0.01
cloudkitty unit per hour.

## Other metrics billing

### Generalities

Every other type of metric should be setup the way described above. However,
since this is a complex task to find out how to do it, we'll see here
specific examples, giving the deployer the direct solution.

Basically, you will find below examples for billing:
- Load balancers
- Router floating IPs
- Self-service subnets

and each time, giving you the dynamic pollster file (for Ceilometer API
polling) and the matching extract of metrics.yaml (for Cloudkitty rating).

### Gnocchi resource types

Before setting-up new metrics, one needs to create the Gnocchi resource
types. Here's how:

```
gnocchi resource-type create -a status:string:false:max_length=3 -a device_id:uuid:false -a mac_address:string:false:max_length=20 public_ip
gnocchi resource-type create -a status:string:false:max_length=3 -a device_id:uuid:false -a mac_address:string:false:max_length=20 router_public_ip
gnocchi resource-type create -a status:string:true:max_length=3 -a device_id:uuid:false -a mac_address:string:true:max_length=20 external-network-public-ip
gnocchi resource-type create -a status:string:true:max_length=3 -a device_id:uuid:false -a mac_address:string:true:max_length=20 router-gateway-public-ip
gnocchi resource-type create -a cidr:string:false:max_length=4 -a network_id:uuid:false -a description:string:false:max_length=64 public_subnet
gnocchi resource-type create -a name:string:false:max_length=255 -a description:string:false:max_length=255 -a vip_address:string:false:max_length=32 loadbalancer
```

What's above MUST match the field resource_type defined in the yaml dynamic
pollsters below, otherwise ceilometer-notification-agent will simply crash.
So take a big care about this.

### Load balancers

my_loadbalancer.yaml:

```
---

- name: "my_loadbalancer"
  sample_type: "gauge"
  unit: "loadbalancer"
  endpoint_type: "load-balancer"
  url_path: "/loadbalance/v2.0/lbaas/loadbalancers"
  value_attribute: "provisioning_status"
  response_entries_key: "loadbalancers"
  project_id_attribute: "project_id"
  value_mapping:
    ACTIVE: "1"
    ERROR:  "0"
  metadata_fields:
    - "name"
    - "description"
    - "vip_address"
```

metrics.yaml:

```
  my_loadbalancer:
    alt_name: network.services.lb.loadbalancer
    unit: loadbalancer
    groupby:
      - id
      - project_id
    extra_args:
      aggregation_method: mean
      resource_type: loadbalancer
      force_granularity: 300
```

### Rating the public IP of a Router gateway

router-floating.yaml:

```
---

- name: "router-gateway-public-ip"
  sample_type: "gauge"
  unit: "ip"
  endpoint_type: "network"
  url_path: "network/v2.0/routers?fields=id&fields=project_id&fields=external_gateway_info"
  value_attribute: "external_gateway_info | 1 if value and 'network_id' in value and value['network_id'] == 'be472268-cb1b-435c-9735-bc7c7e46c9b0' else 0"
  response_entries_key: "routers"
  project_id_attribute: "project_id"
```

Please note that above, the network be472268-cb1b-435c-9735-bc7c7e46c9b0 is
used as a filter, so that only router gateways using that network are rated.
The value_attribute is constructed to have 1 if the network ID is the public
network, and zero otherwise. This way, a router with an external_gateway_info
pointing to a non-public IP address will not be included in the rating.

metrics.yaml:

```
  router-gateway-public-ip:
    alt_name: network.ports.router-gateway
    unit: ip
    groupby:
      - id
      - project_id
    extra_args:
      aggregation_method: mean
      resource_type: router_public_ip
      force_granularity: 300
```

### Self service public IP subnets

In this example, we're having a subnet pool that holds public IPs, and
clients can decide to reserve a subnet of public IPs directly assigned to
their VMs. So, what should be billed, is the size of the subnet reserved by
the client.

subnet-selfservice1.yaml:

```
---

- name: "network-subnet-public-ip"
  sample_type: "gauge"
  unit: "ip"
  endpoint_type: "network"
  url_path: "/network/v2.0/subnets?subnetpool_id=110203aa-89a9-4a9c-a57b-f849d7fb89a6"
  value_attribute: "cidr | 2**(32 - int(value.split('/')[1]))"
  response_entries_key: "subnets"
  project_id_attribute: "project_id"
  metadata_fields:
    - "network_id"
    - "description"
```

As you may see above, the value 110203aa-89a9-4a9c-a57b-f849d7fb89a6 is used to filter
subnets comming from the subnetpool. The value_attribute field above, has
the Python code to calculate the number of IPs from the CIDR of the rated
subnet.

metrics.yaml:

```
  network-subnet-public-ip:
    unit: ip
    groupby:
      - id
      - project_id
    extra_args:
      aggregation_method: mean
      resource_type: public_subnet
      force_granularity: 300
```

### Swift storage rating

On all swiftproxies, ceilometermiddleware is used for collecting the raw
metrics. Here's the matching Cloudkitty metrics.yaml:

```
  storage.objects.size:
    unit: Gib
    factor: 1/1073741824
    groupby:
      - id
      - project_id
    extra_args:
      aggregation_method: mean
      resource_type: swift_account
      force_granularity: 300
```

### Windows billing

If using telemetry, OCI will automatically install the
ceilometer-instance-poller package on every compute nodes. This package
uses libvirt and libguestfs to check the running OS type inside each compute.

To add the metric, edit /etc/openstack-cluster-installer/gnocchi_resources.yaml.
Under the resource_type: instance, add the metrics: os.type.is_windows:

```
  - resource_type: instance
    metrics:
      [...]
      os.type.is_windows:
    attributes:
      [...]
```

This way, when ceilometer-upgrade will run, the os.type.is_windows metric
will be added to the instance resource-type.

Then in cloudkitty's metrics.yml what's below should be added:

```
  os.type.is_windows:
    unit: instance
    alt_name: windows_license
    groupby:
      - id
      - project_id
    extra_args:
      aggregation_method: mean
      resource_type: instance
      force_granularity: 300
```

Then the new cloudkitty service, group and mapping for OS billing:

```
openstack rating hashmap service create windows_license
openstack rating hashmap group create os_license
openstack rating hashmap mapping create -s windows_license -g os_license -t flat 10
```


# Deploying Designate

## Used domain in this chapter

In this chapter, we will pretend that the cluster will be setup
using cluster1.example.com. The matching ns1/ns2.cluster.example.com
will be setup.

## Add 2 nodes for publishing DNS records from Designate mDNS

The principle is that Designate will push zones from designate-mdns
to your satelite dns nodes (using AXFR and the special Designate
key that OCI will provision for you).

```
ocicli machine-add SERIAL CLUSTER_NAME dns zone-1
```

Note that these 2 machines must have public IPs that will reply
to the queries on port 53. So it is advised to provision them
on a separate (public) management network.

## Create glue records

Create 2 glue records that will match the public IPs of the
servers added to the cluster just above. Example:

```
ns1.cluster1.example.com
ns2.cluster1.example.com
```

Also, A pointers with the same IP must be set.

## What OCI will activate

OCI will activate the scenario 3b described here:
https://docs.openstack.org/neutron/latest/admin/config-dns-int-ext-serv.html#use-case-3b-the-dns-domain-ports-extension

## VNI requirements

As per the Designate documentation at the above URL:
"For network types VLAN, GRE, VXLAN or GENEVE, the segmentation ID must be outside the ranges assigned to project
networks."

Therefore, to use Designate, one must do:

```
ocicli cluster-set preprod --neutron-vxlan-vni-min 1005
```

so that it doesn't overlap.

## Check the neutron domain name

Simply do:

```
ocicli cluster-set cluster1 --neutron-dns-domain cluster1.example.com
```

## Create the main Designate zone

```
openstack zone create cluster1.example.com. --email admin@example.com
```

## Test that everyting is working:

```
openstack zone create my-test-zone.example.com. --email admin@example.com
openstack port create --network NETWOKR_ID --dns-name dns-entry-for-the-port --dns-domain my-test-zone.example.com. my-port-name
```

This will create a port on NETWOKR_ID with a DNS "IN A" record
"dns-entry-for-the-port.my-test-zone.example.com" that will point
to the IP address of the port.

## Populate the Designate TLD list

To avoid zone squatting, OCI populates (and maintain) the list of
TLDs using a special package called "designate-tlds". It is setup
to update the list from Mozilla every week (using a cron). However,
it's probably nicer to call the script immediately after the DNSaaS
setup.

Note that the package is installed only in one of your controllers
(the OCI "first master):

```
# designate-tlds
```


# Using multi region with an external keystone

## General external keystone and multi region considerations

There are multiple ways to do multi region, like using SAML2, Keystone
federation and so on. In OCI, it was decided to use a single Keystone
deployment for all region. This way, connecting to Horizon shows all
possible regions, and the setup is quite simple to achieve.

The way it is achieved in OCI, is that for a given cluster, it is
possible to tell that Keystone should not be setup, and that instead,
the cluster should be using a Keystone server that is setup externally.
This external Keystone server can be a standalone deployment, or be part of
another OpenStack cluster setup with OCI.

## Setting-up the external Keystone instance

As OCI will manage everything, including services, users and endpoints
in Keystone, it is mandatory that the existing external Keystone server
is configure to accept incomming connections from puppet running on the
controllers of the cluster that is to be setup using an external Keystone.
Namely, this means the external Keystone server must have:
- the project "services" added
- the Keystone endpoint for the region to be setup

For example, if the new region to be setup is called "blueregion", then
type the below commands in the external Keystone server:

```
openstack endpoint create --region blueregion identity public http://192.168.110.2:5000/
openstack endpoint create --region blueregion identity internal http://192.168.110.2:5000/
openstack endpoint create --region blueregion identity admin http://192.168.110.2:5000/
```

Note that the above example shows a setup without TLS, but it's of course
stringly recommended to use endpoints over HTTPS.

## Configuring a cluster to use an external keystone

Simply do something like this:

```
ocicli cluster-set cl1 --region-name blueregion --external-keystone-activate yes --external-keystone-admin-password EXTERNAL_KEYSTONE_PASSWORD --external-keystone-region-prefixed-users yes --external-keystone-url http://192.168.110.2:5000
```

Note that, with the above, if your cluster has a region name called "blueregion",
then all system users for services will be postfixed with the region name.
For example, that makes it "nova-blueregion", "neutron-blueregion" and son
on. There's no need to create these users, the puppet manifests of OCI will
connect to the external Keystone server and create them for you.

# Upgrading the OCI PKI setup

## How is the OCI PKI done

There are 2 CA generated by the oci-root-ca-gen commands. The first one is
the root CA, which is used to sign the intermediary CA. Then that 2nd CA
is used to sign each individual server certificates.

ROOT CA => OCI CA 2 => Server certs

These CA files are stored in /etc/openstack-cluster-installer/pki/ca
(a copy of the certs is also present in /var/lib/oci/ssl/ca), and that
is used to sign individual server certificates (for TLS authentication)
under /var/lib/oci/ssl/slave-nodes.

All of the PKI materials are installed at provisioning time, but ALSO
they are transported through puppet to the servers, so they can be
automatically updated.

Within a cluster, all servers can trust each other, because the OCI
root CAs are installed in the global /etc/ssl/certs/ca-certificates.crt.
In fact, the 2 CAs of OCI are first stored under /usr/share/ca-certificates/oci
(OCI_1_selfsigned-root-ca.crt and OCI_2_oci-ca.crt), added to the
/etc/ca-certificates.conf, and then update-ca-certificates --fresh
is called.

## Result with the new setup

Since 1st of December 2021 (somewhere in the development cycle of OCI
version 42), the PKI setup of OCI has been fixed, so that servers can really
trust each other, without specifying a root CA. For example, connecting to
keystone directly from any host in the cluster will work out of the box
without a root CA file:

```
openssl s_client -connect cluster1-controller-1.example.com:5000
```

This can also be checked with curl that don't require a root CA chain
certificate anymore:

```
curl https://cluster1-controller-1.example.com:5000/v3
```

The reason why it works is because the root CA of OCI is now installed
properly as described above. However, this wasn't the case previously,
and the system was kind of half broken.

The only time where one needs the OCI root CA chain certificates, is
when using the OpenStack from outside of a cluster.

## What got fixed

There was numerous defect in previous setup:
- The root CA and intermediate CA options were not set properly
- The server certificates were not signed with the correct options
- The root CA and OCI CA where not properly installed in the system

As a consequence, authentication couldn't be done properly, and the
OCI root ca chain had to be specified.

## How to upgrade

First, the OCI root CA and intermediate CA must be regenerated with the
correct options. Simply regen it with this command:

```
oci-root-ca-gen
```

Then all of the certificates for servers must be regenerated again.
This can be done with a one liner command:

```
cd /var/lib/oci/ssl/slave-nodes
for i in $(ls -d *) ; do rm -r $i ; oci-gen-slave-node-cert $i ; done
```

Note that if you are using a "real" certificate (ie: not self-signed)
for your API, you must preserve it in the command above. Therefore,
it may become:

```
cd /var/lib/oci/ssl/slave-nodes
for i in $(ls -d * | grep -v api) ; do rm -r $i ; oci-gen-slave-node-cert $i ; done
```

Once this is done, simply apply puppet on all of the controllers of
your cluster. All of the certificates will be updated, including the
root CA and the OCI intermediate CA. Nearly all services will be
restarted, however, a few have to be manually restarted by hand after
the puppet run on the 3 controllers:

- cinder-api
- heat-api
- heat-api-cfn
- nova-api

It is strongly advise to look-up for API services that haproxy do not see
as up using the haproxy statshttp monitoring page, on the port 8088 of
your controllers (simply point your web browser to the IP of your controller
on port 8088, and lookup for the generated password in
/etc/haproxy/haproxy.cfg).

# Using OCI PoC Package for Fun and Profit

## Installation of the PoC package

Because setting-up hardware is complicated and time consuming, it is
possible to test and develop OCI using a fully virtualized environment. This
is done using the openstack-cluster-installer-poc package. A lot of memory
is needed to run it (512 GB advised).

To install it, one may use extrepo:

```
apt-get install extrepo
extrepo enable openstack_epoxy
apt-get update
apt-get install openstack-cluster-installer-poc
```

Once installed, edit /etc/oci-poc/oci-poc.conf to match your network
environment and hardware capability.

## Dependency on ikvswitch

Since early 2024, openstack-cluster-installer-poc is using ikvswitch
to emulate a complex network setup using bgp-2-the-host. The project
is also packaged and available in Debian. A full description of the
project ikvswitch is available here:

https://salsa.debian.org/openstack-team/debian/ikvswitch

Basically, edit /etc/ikvswitch/ikvswitch.conf and set NUM_U= to a
big enough value for the PoC (as of writting: 22), edit the mirror
address (if the default to deb.debian.org is not reachable), and
set MY_IP to your host IP address (so NAT can be performed). Then
to start the virtual switch environment, one simply does:

```
ikvswitch-host-networking start
ikvswitch-setup start
```

This will, with the first command, provision all the networking
bridges and interfaces, and the 2nd command will start 9 VMs (using
512 MB of RAM each) acting as virtual switches. The OCI-PoC VMs
will then plug on these virtual switches.

## Configuring the host to access OCI

As ocicli is remote (setup on the host, but connecting to the "oci"
VM), it wont be authenticated by default. Simply add this to your
/root/.bashrc to solve this:

```
export OCI_API_URL="http://192.168.100.2/oci/api.php?"
export OCI_LOGIN=poc
export OCI_PASS=poc
```

Before doing anything else, make sure oci resolves. On the host server,
edit /etc/hosts and add:

```
192.168.100.2   oci
```

To avoid ssh to prompt about host keys, add to /root/.ssh/config:

```
Host *
	StrictHostKeyChecking no
	HashKnownHosts no
	GlobalKnownHostsFile /dev/null
	UserKnownHostsFile /dev/null
```

Last, if your PoC host cannot access internet, but only your local
network, it is necessary for the the cl1-controller-1 to wget the
official Debian image from the internet. In such case, fill-up
/etc/oci-poc/oci-poc.conf with tne neccessary:

```
USE_HTTP_PROXY=yes
HTTP_PROXY_ADDR=http-proxy.example.com:3128
```

It is also important to have the host be able to ssh the VMs
of the PoC.

```
# ssh-keygen -t rsa
[...]
# cat .ssh/id_rsa.pub >.ssh/authorized_keys
```

Inded, whatever is in /root/.ssh/authorized_keys of the host
will be copied into all VMs.

## Fully automated run

Simply run this command you're good to go:

```
oci-poc-ci
```

this takes approximately 5 hours to install all and run tempest.

If you still want to run things manually, continue reading on.

## Creating the oci-PoC image

Before starting-up the virtualized environment, a VM image needs to be
created. This is done using the command:

```
oci-setup
```

This will create an image in
/var/lib/openstack-cluster-installer-poc/templates/pxe-server-node.qcow2
that will contain a Debian system with OCI, and the live image of OCI in it.

## Starting-up VMs


Then, to start VMs, simply do this:

```
oci-poc-vms start
```

This will produce the below screen output, showing what's going on:

```
===> Copying all template files to runtime folder
==> Starting OCI/PXE/puppet-master server
-> Starting OCI VM
-> Waiting 5 seconds
-> Waiting for ssh: ...ok.
===> Configuring PXE server
-> Enabling OCI vhost
-> Reloading apache
-> Configuring OCI db
-> Creating OCI db
-> Granting OCI db privileges
-> Installing php-cli
-> Running db_sync.php
-> Fixing config file rights
-> Copying tftp folder to web root
-> Restarting tftp-hpa
-> Generating root CA
-> Configuring oci-userdb
-> Fixing connection= line
-> Restarting DHCPd
===> Starting OpenStack cluster VMs
=> Starting VM 1 with 1xHDD and 32 GB RAM (controllers: C1)
=> Starting VM 2 with 1xHDD and 32 GB RAM (controllers: C2)
=> Starting VM 3 with 1xHDD and 32 GB RAM (controllers: C3)
=> Starting VM 4 with 1xHDD and 5 GB RAM (network: C4)
=> Starting VM 5 with 1xHDD and 5 GB RAM (network: C5)
=> Starting VM 6 with 1xHDD and 3 GB RAM (swiftproxy: C6)
=> Starting VM 7 with 1xHDD and 4 GB RAM (cephmon: C7)
=> Starting VM 8 with 1xHDD and 4 GB RAM (cephmon: C8)
=> Starting VM 9 with 1xHDD and 4 GB RAM (cephmon: C9)
=> Starting VM 10 with 2xHDD and 60 GB RAM (Compute + ceph OSD: CA)
=> Starting VM 11 with 2xHDD and 60 GB RAM (Compute + ceph OSD: CB)
=> Starting VM 12 with 2xHDD and 60 GB RAM (Compute + ceph OSD: CC)
=> Starting VM 13 with 4xHDD and 5 GB RAM (swiftstore: CD)
=> Starting VM 14 with 4xHDD and 5 GB RAM (swiftstore: CE)
=> Starting VM 15 with 4xHDD and 5 GB RAM (swiftstore: CF)
=> Starting VM 16 with 4xHDD and 5 GB RAM (swiftstore: D0)
=> Starting VM 17 with 4xHDD and 5 GB RAM (swiftstore: D1)
=> Starting VM 18 with 4xHDD and 3 GB RAM (volume: D2)
=> Starting VM 19 with 4xHDD and 3 GB RAM (volume: D3)
=> Starting VM 20 with 1xHDD and 16 GB RAM (messaging: D4)
=> Starting VM 21 with 1xHDD and 16 GB RAM (messaging: D5)
=> Starting VM 22 with 1xHDD and 16 GB RAM (messaging: D6)
=> Starting VM 23 with 1xHDD and 4 GB RAM (tempest: D7)
=> Starting VM 24 with 1xHDD and 4 GB RAM (billmon: D8)
=> Starting VM 25 with 1xHDD and 4 GB RAM (billmon: D9)
=> Starting VM 26 with 1xHDD and 4 GB RAM (billmon: DA)
=> Starting VM 27 with 3xHDD and 8 GB RAM (billosd: DB)
=> Starting VM 28 with 3xHDD and 8 GB RAM (billosd: DC)
=> Starting VM 29 with 3xHDD and 8 GB RAM (billosd: DD)
=> Starting VM 30 with 3xHDD and 10 GB RAM (Ceph OSD: DE)
=> Starting VM 31 with 3xHDD and 10 GB RAM (Ceph OSD: DF)
=> Starting VM 32 with 3xHDD and 10 GB RAM (Ceph OSD: E0)
=> Starting VM 33 with 3xHDD and 10 GB RAM (Ceph OSD: E1)
=> Starting VM 34 with 3xHDD and 10 GB RAM (Ceph OSD: E2)
=> Starting VM 35 with 3xHDD and 10 GB RAM (Ceph OSD: E3)
-> Waiting 30 seconds for VMs to start:..............................ok.
===> Waiting for VMs to be up: .28.29.30.32.33.34ok.
```

Note that if there is not enough memory on the host, it is possible to edit
the number of started VMs in /etc/oci-poc/oci-poc.conf. The directive is
NUMBER_OF_GUESTS=35 by default.

Once it is done, it is possible to see VMs with the ocicli command:

```
ocicli machine-list
```

## Installing the PoC cluster

Simply create a cluster with a single command:

```
oci-poc-install-cluster-bgp
```

Once done, ocicli machine-list will show machines added to the cluster with
the correct role.

To effectively install every VM:

```
ocicli cluster-install cl1
```

then wait ... It takes roughly 3 hours to get your cluster ready.

## Provisionning images, flavors, octavia, networking and all, inside OpenStack

On the host, there's a simple script to do all the necessary provisionning.
It will configure:

* A Debian image downloaded from cdimage.debian.org
* Networking with an exeternal network and a internal network (VM direct-attach)
* 3 VM Flavors for Nova
* 3 availability zones for all the compute nodes
* All the octavia setup (image, sec-groups, certs, ssh-key, networking...)
* A tempest node to do functional testing of the cluster

## Running the oci-poc-ci

A single script runs all of the above. Simply do:

```
oci-poc-ci
```

wait 3 hours, and your cluster is ready.

## Running tempest functional tests

Simply ssh the tempest host (run ocicli machine-list to get its IP address),
and then do:

```
cd /var/lib/tempest
stestr init
tempest_debian_shell_wrapper | tee bobcat-tests.txt
```

It is also possible to run a single test this way:

```
tempest_debian_shell_wrapper 'tempest\.api\.compute\.servers\.test_server_actions\.ServerActionsTestJSON\.test_resize_server_revert_with_volume_attached'
```

The full run takes a bit less than 3 hours. Note that the Debian wrapper
for tempest will take its tests exclude list from /etc/tempest/exclude.conf
that you may enrich with your own banned tests.

Note that tempest is designed as a CI for gating commits in OpenStack upstream
Gerrit. It's not really meant for a CI for something like OCI. Even if its
huge list of tests is very helpful, it's expected that many tests will fail,
either because the test environment is different from the one used in
upstream Zuul/Gerrit, because it needs more configuration of the test
environment to have the test pass, or simply because some tests aren't
deterministic (and sometimes fail, sometimes don't). That's the reason why
there's a huge number of tests in this exclude file by default.

However, contribution and debugging to reduce the number of excluded tests
is aways welcome.

## Testing OCI patches

Now that your host is ready, it is possible to test any change using:

```
./sync-poc your-oci-poc-hostname
```

This will synchronize all of the PHP, puppet and shell scripts to your PoC.

## Cluster save and restore

Because it is kind of long to install a full OpenStack cluster made of so
many machines, oci-poc has a save and restore state for clusters. This will
simply shutdown mysql, then all VMs, and copy the .qcow2 disk of all VMs
in /var/lib/openstack-cluster-installer-poc/saved:

```
oci-poc-save cl1
```

Once saved, it is ok to just rename the folders, so one can keep multiple
copies. Then restore is done with the folder name:

```
oci-poc-restore cl1
```

# Hardware compatibility list
## Dell servers

OCI has been tested with these types of PowerEdge servers:

- DSS 1500
- DSS 1510
- DSS 2500
- PowerEdge R410
- PowerEdge R420
- PowerEdge R430
- PowerEdge R440
- PowerEdge R610 (as compute, swiftproxy)
- PowerEdge R620
- PowerEdge R630 (as compute, controller)
- PowerEdge R640 (as compute, controller)
- PowerEdge R720xd (as swiftstore)
- PowerEdge R740xd (as swiftstore)
- PowerEdge R6525 (AMD CPUs)
- PowerEdge R7525 (AMD CPUs)

Support for Dell's racadm is included, and OCI makes an extensive use of it.

## Gigabyte

OCI has been tested and supports:

- R182-Z93-00 (as compute)

## HP servers

OCI has been tested with these types of Cloud Line servers (used as
swiftstores or Ceph OSD):

- CL2600 Gen10 (as cephosd)
- CL2800 Gen10 (as swiftstore)

Unfortunately, there's no way we have found to configure the BIOS of these
servers, so some manual work has to be done to configure the BIOS manually,
for example to set the HDD hotplug flag. This can be very annoying when
setting-up a large amount of servers.

OCI has also been tested with these servers (used as swiftstores):

- ProLiant DL365 Gen10 Plus (as swiftstore, compute)
- ProLiant DL385 Gen10
- ProLiant DL385 Gen10 Plus (as swiftstore)
- ProLiant DL345 Gen11 (as swiftstore)

OCI also is capable of setting-up ARM-based servers, and produce a
dual-arch (x86 and ARM) PXE boot process. It supports:

- ProLiant RL300 (tested as CephOSD and compute)

OCI can automatically install hponcfg, ssacli and storcli, directly from
the HP Debian repository. OCI uses hponcfg to automatically activate IPMI
over LAN (which is off by default in these servers).

## Lenovo

These systems have been used in production:

- ThinkSystem SR645 (as compute)
- ThinkSystem SR665 (as swift store)

However, for IPMI to work correctly, it is needed to package onecli from
Lenovo: Lenovo doesn't ship a Debian package, and it is impossible to
redistribute the package (non-free license). Please get in touch if you
want the Debian source package (without the proprietary binaries).

Note that OCI set these machines using UEFI and Secure boot.

## Supermicro

A user reported he's using Supermicro. Though I couldn't test it myself. A
few patches were added in OCI to support them. I don't have much details
on what model(s) though.

# Upgrading
## From stretch-rocky to buster-rocky

### Upgrading compute nodes

First, switch the apt/sources.list to buster, and remove upstream's Ceph
backport repositories. Then remove all traces of Ceph from uptream:

```apt-get purge libcephfs2 librados2 librbd1 python3-rgw python3-rbd python3-rados python3-cephfs librgw2```

This probably will remove some Nova component, do it anyways. Then do the
dist-upgrade. Just hit entry on any prompt, or run in non-interactive mode
for Debconf prompts. Then just run puppet.

### Upgrading volume nodes

Nothing special here, just upgrade them with apt, reboot, and apply puppet.
It may be of course desirable to live-migrate volumes before rebooting.

### Upgrading your controllers

Upgrading controllers from Stretch to Buster isn't an easy task, so OCI
includes a script to automate the task:

```
oci-cluster-upgrade-stretch-to-buster CLUSTER_NAME
```

It's going to do all for you. It's strongly advise to test this before
doing it on a live cluster. The upgrade takes about 1 hour if running
with 3 controllers.

## Upgrading from one OpenStack release to the next

OCI comes with a shell script that helps you to do the OpenStack upgrades in
a fully automated way:

```
oci-cluster-upgrade-openstack-release CLUSTER_NAME FROM TO
```

For example, if you want to upgrade your cluster named "cl1" from Rocky to
Stein, simply do:

```
oci-cluster-upgrade-openstack-release cl1 rocky stein
```

Note that you cannot skip OpenStack release. If you wish to upgrade from
Rocky to Victoria, then you must do:

```
oci-cluster-upgrade-openstack-release cl1 rocky stein
oci-cluster-upgrade-openstack-release cl1 stein train
oci-cluster-upgrade-openstack-release cl1 train ussuri
oci-cluster-upgrade-openstack-release cl1 ussuri victoria
```

Note that, after upgrading to buster-victoria, you then must upgrade your
cluster to Bullseye the way described above (still keeping victoria), and
hopefully, you'll be able to upgrade to Wallby:

```
oci-cluster-upgrade-openstack-release cl1 victoria wallby
```

## From bullseye-zed to bookworm-zed

### Make sure the latest version of OCI is running

Especially on controller and messaging nodes, OCI will need to run
/root/reset-rabbitmq-credentials. This comes with fairly recent versions
of OCI, therefore, make sure you're running a version of OCI that has it,
and run oci-puppet on the first controller and messaging nodes so that
the script is created.

### Preparing the upgrade: configure GRUB

If servers were installed with OCI, it's possible that upgrading grub
doesn't know where to install itself uppon upgrades. To fix this, and
only if using non-UEFI setup:

```
dpkg-reconfigure grub-pc
```

and select the drive where Grub should go.

### Upgrade script

Simply run the upgrade script:

```
oci-cluster-upgrade-bullseye-to-bookworm cl1
```

Note that it will upgrade all of the cluster including compute and
network nodes. If that's not what you want, edit the script and
remove that part, it can be be processed manually.

## Upgrading to libvirt and NoVNC over TLS

### What is this about ?

Previously, OCI was setting-up libvirt over TCP, without any encryption.
There was also no VNC authentication, and anyone could connect to the VNC
port of a VM, provided an access to the management network of the compute
nodes.

The feature was added to use libvirt over TLS instead of just TCP, so that
live-migrations can be done with everything encrypted on the wire.

The same way, the NoVNC console now uses server/client SSL certificates, so
that the Nova NoVNC proxy verifies the VMs NoVNC identity, plus the VMs
integrated VNC server only allow the NoVNC proxy to connect.

Libvirt over TLS and NoVNC are using client and server certificates. The PKI
for this has to be done right, but unfortunately, OCI had a slightly wrong
setup of its PKI, with missing intermediate CA certificates attributes, so
it could sign client certificates.

As a consequence, to upgrade to a newer version of OCI, it is necessary to
completely re-do the internal PKI. This is painful and mandates some
operation that *WILL* make some downtime on your cluster.

However, a script to automate all of this has been written (and is currently
being worked on: please hold...).

### When is such an upgraded needed?

If the deployed cluster doesn't have the pki infrastructure for qemu+tls
and novnc, you need to run this scripted upgrade. In a normal situation,
a compute node should have these files:

```
cluster1-compute-1 # find /etc/pki/
/etc/pki/
/etc/pki/libvirt-vnc
/etc/pki/libvirt-vnc/server-cert.pem
/etc/pki/libvirt-vnc/ca-cert.pem
/etc/pki/libvirt-vnc/server-key.pem
/etc/pki/qemu
/etc/pki/qemu/server-cert.pem
/etc/pki/qemu/client-cert.pem
/etc/pki/qemu/client-key.pem
/etc/pki/qemu/ca-cert.pem
/etc/pki/qemu/server-key.pem
/etc/pki/CA
/etc/pki/CA/cacert.pem
/etc/pki/libvirt
/etc/pki/libvirt/clientcert.pem
/etc/pki/libvirt/servercert.pem
/etc/pki/libvirt/private
/etc/pki/libvirt/private/clientkey.pem
/etc/pki/libvirt/private/serverkey.pem
```

If it is already the case if your deployment, skip reading below.
If now, you need to run the script.

### How to perform the upgrade

All of the upgrade is scripted, and has been sucessfully tested
on a very busy (moderately large) compute cluster.

Get the 2 scripts from the OCI git without deploying the OCI
upgrade yet, and scp it to your OCI/puppet server:

```
openstack-cluster-installer (debian/zed)$ scp bin/oci-renew-intermediate-ca bin/oci-disable-puppet root@cluster1-puppet-1:/usr/bin
```

Then simply run the script:

```
# oci-renew-intermediate-ca
```

During this process, OCI itself will be upgraded to the latest
release (ie: apt-get dist-upgrade).

### Trick to keep networking agent running

During the upgrade, the network nodes will, in some situation,
not be able to reach rabbitmq (because they may contain the old
root-ca, when rabbit has been restarted with the new one). To
prevent this, one can simply continuously update the Neutron DB
to fake that network agents are always up:

```
while [ 1 ] ; do
   mysql -D neutrondb -e "UPDATE agents SET heartbeat_timestamp=NOW()"
   sleep 10
done

This will also avoid that the agents do a "full resync" that may
trigger some network disconnections. Once the oci-renew-intermediate-ca
script has finish to run, you can stop running this script.

### Libvirtd check on compute nodes

On compute nodes, we make sure libvirtd runs with TLS:

```
systemctl status libvirtd
```

If not, we restart libvirt with the correct socket activated:

```
systemctl stop libvirtd.service
systemctl stop libvirtd.socket
systemctl stop libvirtd-ro.socket
systemctl stop libvirtd-admin.socket
systemctl stop libvirtd-tcp.socket
systemctl start libvirtd-tls.socket
systemctl start libvirtd-ro.socket
systemctl start libvirtd-admin.socket
systemctl start libvirtd.service
```

Note this will only work if we have the new certs from puppet.

One can check that TLS is working using:

```
virsh -c qemu+tls://$(hostname --fqdn)/system list
```

Every compute node must be able to list instances of all other nodes,
and must also be able to ssh as root (from root).

### Live-migrating all VMs to enable the VNC client certificate checks

Once you're done with the upgrade, your VMs will continue to bind
their VNC server on the local compute without any kind of authentication.
To fix this, a new Qemu process must be started, so that it includes
the client and server TLS checks. To do so, there's 2 ways: either
stop and start the VM, or live migrate it. One easy way is probably
to do a nova host-evacuate on every compute nodes. A simple script
like this can do such trick:

```
for HOST in $(openstack compute service list --service nova-compute --format value -c Host) ; do
    echo "---> starting to evacuate $HOST" ;
    nova host-evacuate-live $i
    echo "---> Waiting 20 minutes between evacuate runs"
    sleep 1200
done
```
