Gdk::Pixmap Class Reference

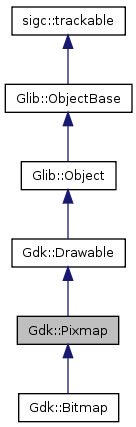

Inheritance diagram for Gdk::Pixmap:

[legend]List of all members.

---

Detailed Description

Pixmaps are offscreen drawables.

They can be drawn upon with the standard drawing primitives, then copied to another drawable (such as a Gdk::Window) with Gdk::Drawable::draw_drawable(). The depth of a pixmap is the number of bits per pixels. Bitmaps are simply pixmaps with a depth of 1. (That is, they are monochrome bitmaps - each pixel can be either on or off).

Public Member Functions
const GdkPixmap*	gobj () const
	Provides access to the underlying C GObject.
GdkPixmap*	gobj ()
	Provides access to the underlying C GObject.
GdkPixmap*	gobj_copy ()
	Provides access to the underlying C instance. The caller is responsible for unrefing it. Use when directly setting fields in structs.
virtual	~Pixmap ()
Static Public Member Functions
static Glib::RefPtr<Pixmap>	create (const Glib::RefPtr<Display>& display, NativeWindow anid)
static Glib::RefPtr<Pixmap>	create (const Glib::RefPtr<Drawable>& drawable, const char* data, int width, int height, int depth, const Color& fg, const Color& bg)
static Glib::RefPtr<Pixmap>	create (const Glib::RefPtr<Drawable>& drawable, int width, int height, int depth=-1)
static Glib::RefPtr<Pixmap>	create_from_data (const Glib::RefPtr<const Drawable>& drawable, const char* data, int width, int height, int depth, const Color& fg, const Color& bg)
static Glib::RefPtr<Pixmap>	create_from_xpm (const Glib::RefPtr<Colormap>& colormap, Glib::RefPtr<Bitmap>& mask, const char* const* data)
static Glib::RefPtr<Pixmap>	create_from_xpm (const Glib::RefPtr<Colormap>& colormap, Glib::RefPtr<Bitmap>& mask, const Color& transparent_color, const char* const* data)
static Glib::RefPtr<Pixmap>	create_from_xpm (const Glib::RefPtr<const Drawable>& drawable, const Glib::RefPtr<Colormap>& colormap, Glib::RefPtr<Bitmap>& mask, const Color& transparent_color, const char* const* data)
static Glib::RefPtr<Pixmap>	create_from_xpm (const Glib::RefPtr<const Drawable>& drawable, Glib::RefPtr<Bitmap>& mask, const Color& transparent_color, const char* const* data)
static Glib::RefPtr<Pixmap>	create_from_xpm (const Glib::RefPtr<const Drawable>& drawable, const Glib::RefPtr<Colormap>& colormap, Glib::RefPtr<Bitmap>& mask, const Color& transparent_color, const std::string& filename)
	Create a Pixmap from a xpm file with colormap.
static Glib::RefPtr<Pixmap>	create_from_xpm (const Glib::RefPtr<const Drawable>& drawable, Glib::RefPtr<Bitmap>& mask, const Color& transparent_color, const std::string& filename)
static Glib::RefPtr<Pixmap>	create_from_xpm (const Glib::RefPtr<const Drawable>& drawable, const Color& transparent_color, const std::string& filename)
	Create a Pixmap from a xpm file.
Protected Member Functions
	Pixmap (const Glib::RefPtr<Display>& display, NativeWindow anid)
	Pixmap (const Glib::RefPtr<Drawable>& drawable, const char* data, int width, int height, int depth, const Color& fg, const Color& bg)
	Initialize a Pixmap from data.
	Pixmap (const Glib::RefPtr<Drawable>& drawable, int width, int height, int depth=-1)
	Pixmap ()
Related Functions
(Note that these are not member functions.)
Glib::RefPtr<Gdk::Pixmap>	wrap (GdkPixmapObject* object, bool take_copy=false)
	A Glib::wrap() method for this object.

---

Constructor & Destructor Documentation

virtual Gdk::Pixmap::~Pixmap

(

)

[virtual]

Gdk::Pixmap::Pixmap

(

)

[protected]

Gdk::Pixmap::Pixmap	(	const Glib::RefPtr<Drawable>&	drawable,
		int	width,
		int	height,
		int	depth = -1
	)			[protected]

Gdk::Pixmap::Pixmap	(	const Glib::RefPtr<Drawable>&	drawable,
		const char *	data,
		int	width,
		int	height,
		int	depth,
		const Color&	fg,
		const Color&	bg
	)			[protected]

Initialize a Pixmap from data.

Gdk::Pixmap::Pixmap	(	const Glib::RefPtr<Display>&	display,
		NativeWindow	anid
	)			[protected]

---

Member Function Documentation

static Glib::RefPtr<Pixmap> Gdk::Pixmap::create	(	const Glib::RefPtr<Display>&	display,
		NativeWindow	anid
	)			[static]

static Glib::RefPtr<Pixmap> Gdk::Pixmap::create	(	const Glib::RefPtr<Drawable>&	drawable,
		const char *	data,
		int	width,
		int	height,
		int	depth,
		const Color&	fg,
		const Color&	bg
	)			[static]

static Glib::RefPtr<Pixmap> Gdk::Pixmap::create	(	const Glib::RefPtr<Drawable>&	drawable,
		int	width,
		int	height,
		int	depth = -1
	)			[static]

static Glib::RefPtr<Pixmap> Gdk::Pixmap::create_from_data	(	const Glib::RefPtr<const Drawable>&	drawable,
		const char *	data,
		int	width,
		int	height,
		int	depth,
		const Color&	fg,
		const Color&	bg
	)			[static]

static Glib::RefPtr<Pixmap> Gdk::Pixmap::create_from_xpm	(	const Glib::RefPtr<Colormap>&	colormap,
		Glib::RefPtr<Bitmap>&	mask,
		const char *const *	data
	)			[static]

static Glib::RefPtr<Pixmap> Gdk::Pixmap::create_from_xpm	(	const Glib::RefPtr<Colormap>&	colormap,
		Glib::RefPtr<Bitmap>&	mask,
		const Color&	transparent_color,
		const char *const *	data
	)			[static]

static Glib::RefPtr<Pixmap> Gdk::Pixmap::create_from_xpm	(	const Glib::RefPtr<const Drawable>&	drawable,
		const Glib::RefPtr<Colormap>&	colormap,
		Glib::RefPtr<Bitmap>&	mask,
		const Color&	transparent_color,
		const char *const *	data
	)			[static]

static Glib::RefPtr<Pixmap> Gdk::Pixmap::create_from_xpm	(	const Glib::RefPtr<const Drawable>&	drawable,
		Glib::RefPtr<Bitmap>&	mask,
		const Color&	transparent_color,
		const char *const *	data
	)			[static]

static Glib::RefPtr<Pixmap> Gdk::Pixmap::create_from_xpm	(	const Glib::RefPtr<const Drawable>&	drawable,
		const Glib::RefPtr<Colormap>&	colormap,
		Glib::RefPtr<Bitmap>&	mask,
		const Color&	transparent_color,
		const std::string &	filename
	)			[static]

Create a Pixmap from a xpm file with colormap.

static Glib::RefPtr<Pixmap> Gdk::Pixmap::create_from_xpm	(	const Glib::RefPtr<const Drawable>&	drawable,
		Glib::RefPtr<Bitmap>&	mask,
		const Color&	transparent_color,
		const std::string &	filename
	)			[static]

static Glib::RefPtr<Pixmap> Gdk::Pixmap::create_from_xpm	(	const Glib::RefPtr<const Drawable>&	drawable,
		const Color&	transparent_color,
		const std::string &	filename
	)			[static]

Create a Pixmap from a xpm file.

const GdkPixmap* Gdk::Pixmap::gobj

(

)

const [inline]

Provides access to the underlying C GObject.

Reimplemented from Gdk::Drawable.

GdkPixmap* Gdk::Pixmap::gobj

(

)

[inline]

Provides access to the underlying C GObject.

Reimplemented from Gdk::Drawable.

GdkPixmap* Gdk::Pixmap::gobj_copy

(

)

Provides access to the underlying C instance. The caller is responsible for unrefing it. Use when directly setting fields in structs.

Reimplemented from Gdk::Drawable.

---

Friends And Related Function Documentation

Glib::RefPtr<Gdk::Pixmap> wrap	(	GdkPixmapObject *	object,
		bool	take_copy = false
	)			[related]

A Glib::wrap() method for this object.

Parameters:

	object	The C instance.
	take_copy	False if the result should take ownership of the C instance. True if it should take a new copy or ref.

Returns:

A C++ instance that wraps this C instance.

---

The documentation for this class was generated from the following file:

• pixmap.h

---
