Gtk::IconView Class Reference
[Widgets, Container Widgets]

The IconView provides an alternative view of a list model. More...

Inherits Gtk::Container.

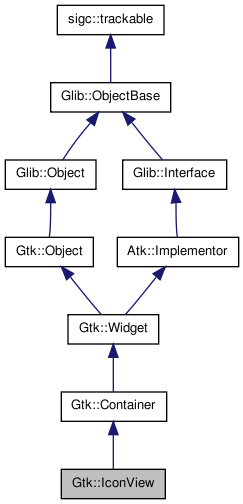

Collaboration diagram for Gtk::IconView:
Collaboration graph
[legend]

List of all members.

Public Types

typedef sigc::slot< void,
const TreeModel::Path& > 		SlotForeach
 For instance, void on_foreach(const Gtk::TreeModel::Path& path);.
typedef Glib::ListHandle
< TreePath, TreePathTraits > 		ArrayHandle_TreePaths

Public Member Functions

virtual ~IconView ()
GtkIconView* gobj ()
 Provides access to the underlying C GtkObject.
const GtkIconView* gobj () const
 Provides access to the underlying C GtkObject.
 IconView ()
 IconView (const Glib::RefPtr< TreeModel >& model)
void set_model (const Glib::RefPtr< TreeModel >& model)
 Sets the model for a Gtk::IconView.
Glib::RefPtr< TreeModel > get_model ()
 Returns the model the Gtk::IconView is based on.
Glib::RefPtr< const TreeModel > get_model () const
 Returns the model the Gtk::IconView is based on.
void unset_model ()
 Remove the model from the IconView.
void set_text_column (int column)
 Sets the column with text for icon_view to be column.
void set_text_column (const TreeModelColumnBase& model_column)
 Sets the column with text for icon_view to be column.
int get_text_column () const
 Returns the column with text for icon_view.
void set_markup_column (int column)
 Sets the column with markup information for icon_view to be column.
void set_markup_column (const TreeModelColumnBase& column)
 Sets the column with markup information for icon_view to be column.
int get_markup_column () const
 Returns the column with markup text for icon_view.
void set_pixbuf_column (int column)
 Sets the column with pixbufs for icon_view to be column.
void set_pixbuf_column (const TreeModelColumnBase& column)
 Sets the column with pixbufs for icon_view to be column.
int get_pixbuf_column () const
 Returns the column with pixbufs for icon_view.
void set_orientation (Orientation orientation)
 Sets the orientation property which determines whether the labels are drawn beside the icons instead of below.
Orientation get_orientation () const
 Returns the value of the orientation property which determines whether the labels are drawn beside the icons instead of below.
void set_columns (int columns)
 Sets the columns property which determines in how many columns the icons are arranged.
int get_columns () const
 Returns the value of the columns property.
void set_item_width (int item_width)
 Sets the item-width property which specifies the width to use for each item.
int get_icon_width () const
 Returns the value of the item-width property.
void set_spacing (int spacing)
 Sets the spacing property which specifies the space which is inserted between the cells (i.e. the icon and the text) of an item.
int get_spacing () const
 Returns the value of the spacing property.
void set_row_spacing (int row_spacing)
 Sets the row-spacing property which specifies the space which is inserted between the rows of the icon view.
gint get_row_spacing () const
 Returns the value of the row-spacing property.
void set_column_spacing (int column_spacing)
 Sets the column-spacing property which specifies the space which is inserted between the columns of the icon view.
int get_column_spacing () const
 Returns the value of the column-spacing property.
void set_margin (int margin)
 Sets the margin property which specifies the space which is inserted at the top, bottom, left and right of the icon view.
int get_margin () const
 Returns the value of the margin property.
TreeModel::Path get_path_at_pos (int x, int y) const
 Finds the path at the point ( x, y), relative to bin_window coordinates.
bool get_item_at_pos (int x, int y, TreeModel::Path& path, CellRenderer*& cell) const
 Finds the path at the point (x, y), relative to widget coordinates.
bool get_item_at_pos (int x, int y, TreeModel::Path& path) const
 Finds the path at the point (x, y), relative to widget coordinates.
bool get_item_at_pos (int x, int y, CellRenderer*& cell) const
 Finds the path at the point (x, y), relative to widget coordinates.
bool get_visible_range (TreeModel::Path& start_path, TreeModel::Path& end_path) const
void selected_foreach (const SlotForeach& slot)
 Calls a function for each selected icon.
void set_selection_mode (SelectionMode mode)
 Sets the selection mode of the icon_view.
SelectionMode get_selection_mode () const
 Gets the selection mode of the icon_view.
void select_path (const TreeModel::Path& path)
 Selects the row at path.
void unselect_path (const TreeModel::Path& path)
 Unselects the row at path.
bool path_is_selected (const TreeModel::Path& path) const
 Returns true if the icon pointed to by path is currently selected.
ArrayHandle_TreePaths get_selected_items () const
 Creates a list of paths of all selected items.
void select_all ()
 Selects all the icons.
void unselect_all ()
 Unselects all the icons.
void item_activated (const TreeModel::Path& path)
 Activates the item determined by path.
void set_cursor (const TreeModel::Path& path, CellRenderer& cell, bool start_editing)
 Sets the current keyboard focus to be at path, and selects it.
bool get_cursor (TreeModel::Path& path, CellRenderer*& cell) const
 Fills in path and cell with the current cursor path and cell.
bool get_cursor (TreeModel::Path& path) const
 Fills in path and cell with the current cursor path and cell.
bool get_cursor (CellRenderer*& cell) const
 Fills in path and cell with the current cursor path and cell.
void scroll_to_path (const TreeModel::Path& path, bool use_align, gfloat row_align, gfloat col_align)
 Moves the alignments of icon_view to the position specified by path.
void enable_model_drag_source (const ArrayHandle_TargetEntry& targets, Gdk::ModifierType start_button_mask=Gdk::MODIFIER_MASK, Gdk::DragAction actions=Gdk::ACTION_COPY|Gdk::ACTION_MOVE)
 Turns the IconView into a drag source for automatic DND.
void enable_model_drag_dest (const ArrayHandle_TargetEntry& targets, Gdk::DragAction actions=Gdk::ACTION_COPY|Gdk::ACTION_MOVE)
 Turns the IconView into a drop destination for automatic DND.
void unset_model_drag_source ()
 Undoes the effect of enable_model_drag_source().
void unset_model_drag_dest ()
 Undoes the effect of enable_model_drag_dest().
void set_reorderable (bool reorderable=true)
 This function is a convenience function to allow you to reorder models that support the Gtk::TreeDragSourceIface and the Gtk::TreeDragDestIface.
bool get_reorderable () const
 Retrieves whether the user can reorder the list via drag-and-drop.
void set_drag_dest_item (const TreeModel::Path& path, IconViewDropPosition pos)
 Sets the item that is highlighted for feedback.
void get_drag_dest_item (TreeModel::Path& path, IconViewDropPosition& pos) const
 Gets information about the item that is highlighted for feedback.
void get_drag_dest_item (TreeModel::Path& path) const
 Gets information about the item that is highlighted for feedback.
void get_drag_dest_item (IconViewDropPosition& pos) const
 Gets information about the item that is highlighted for feedback.
bool get_dest_item_at_pos (int drag_x, int drag_y, TreeModel::Path& path, IconViewDropPosition& pos) const
 Determines the destination item for a given position.
bool get_dest_item_at_pos (int drag_x, int drag_y, TreeModel::Path& path) const
 Determines the destination item for a given position.
bool get_dest_item_at_pos (int drag_x, int drag_y, IconViewDropPosition& pos) const
 Determines the destination item for a given position.
Glib::RefPtr< Gdk::Pixmap > create_drag_icon (const TreeModel::Path& path)
 Creates a Gdk::Pixmap representation of the item at path.
void convert_widget_to_bin_window_coords (int wx, int wy, int& bx, int& by) const
 Converts widget coordinates to coordinates for the bin_window, as expected by e.g. get_path_at_pos().
void set_tooltip_item (const Glib::RefPtr< Tooltip >& tooltip, const TreeModel::Path& path)
 Sets the tip area of tooltip to be the area covered by the item at path.
void set_tooltip_cell (const Glib::RefPtr< Tooltip >& tooltip, const TreeModel::Path& path, CellRenderer& cell)
 Sets the tip area of tooltip to the area which cell occupies in the item pointed to by path.
void set_tooltip_cell (const Glib::RefPtr< Tooltip >& tooltip, const TreeModel::Path& path)
 Sets the tip area of tooltip to the area occupied by the item pointed to by path.
bool get_tooltip_context_path (int& x, int& y, bool keyboard_tip, TreeModel::Path& path)
bool get_tooltip_context_iter (int& x, int& y, bool keyboard_tip, Gtk::TreeModel::iterator& iter)
void set_tooltip_column (int column)
 If you only plan to have simple (text-only) tooltips on full items, you can use this function to have Gtk::IconView handle these automatically for you.
int get_tooltip_column () const
 Returns the column of icon_view's model which is being used for displaying tooltips on icon_view's rows.
Glib::SignalProxy2< void,
Adjustment*, Adjustment* > 		signal_set_scroll_adjustments ()
Glib::SignalProxy1< void,
const TreeModel::Path& > 		signal_item_activated ()
Glib::SignalProxy0< void > signal_selection_changed ()
Glib::PropertyProxy< int > property_pixbuf_column ()
 Model column used to retrieve the icon pixbuf from.
Glib::PropertyProxy_ReadOnly< int > property_pixbuf_column () const
 Model column used to retrieve the icon pixbuf from.
Glib::PropertyProxy< int > property_text_column ()
 Model column used to retrieve the text from.
Glib::PropertyProxy_ReadOnly< int > property_text_column () const
 Model column used to retrieve the text from.
Glib::PropertyProxy< int > property_markup_column ()
 Model column used to retrieve the text if using Pango markup.
Glib::PropertyProxy_ReadOnly< int > property_markup_column () const
 Model column used to retrieve the text if using Pango markup.
Glib::PropertyProxy
< SelectionMode > 		property_selection_mode ()
 The selection mode.
Glib::PropertyProxy_ReadOnly
< SelectionMode > 		property_selection_mode () const
 The selection mode.
Glib::PropertyProxy< Orientation > property_orientation ()
 How the text and icon of each item are positioned relative to each other.
Glib::PropertyProxy_ReadOnly
< Orientation > 		property_orientation () const
 How the text and icon of each item are positioned relative to each other.
Glib::PropertyProxy
< Glib::RefPtr< TreeModel > > 		property_model ()
 The model for the icon view.
Glib::PropertyProxy_ReadOnly
< Glib::RefPtr< TreeModel > > 		property_model () const
 The model for the icon view.
Glib::PropertyProxy< int > property_columns ()
 Number of columns to display.
Glib::PropertyProxy_ReadOnly< int > property_columns () const
 Number of columns to display.
Glib::PropertyProxy< int > property_item_width ()
 The width used for each item.
Glib::PropertyProxy_ReadOnly< int > property_item_width () const
 The width used for each item.
Glib::PropertyProxy< int > property_spacing ()
 Space which is inserted between cells of an item.
Glib::PropertyProxy_ReadOnly< int > property_spacing () const
 Space which is inserted between cells of an item.
Glib::PropertyProxy< int > property_row_spacing ()
 Space which is inserted between grid rows.
Glib::PropertyProxy_ReadOnly< int > property_row_spacing () const
 Space which is inserted between grid rows.
Glib::PropertyProxy< int > property_column_spacing ()
 Space which is inserted between grid columns.
Glib::PropertyProxy_ReadOnly< int > property_column_spacing () const
 Space which is inserted between grid columns.
Glib::PropertyProxy< int > property_margin ()
 Space which is inserted at the edges of the icon view.
Glib::PropertyProxy_ReadOnly< int > property_margin () const
 Space which is inserted at the edges of the icon view.

Protected Member Functions

virtual void on_set_scroll_adjustments (Adjustment* hadjustment, Adjustment* vadjustment)
virtual void on_item_activated (const TreeModel::Path& path)
virtual void on_selection_changed ()

Related Functions

(Note that these are not member functions.)



Gtk::IconView* wrap (GtkIconView* object, bool take_copy=false)
 A Glib::wrap() method for this object.

Detailed Description

The IconView provides an alternative view of a list model.

It displays the model as a grid of icons with labels. Like the TreeView, it allows the user to select one or multiple items (depending on the selection mode - see set_selection_mode()). In addition to selection with the arrow keys, the IconView supports rubberband selection, by dragging the pointer.

Member Typedef Documentation

typedef Glib::ListHandle<TreePath, TreePathTraits> Gtk::IconView::ArrayHandle_TreePaths
typedef sigc::slot<void, const TreeModel::Path&> Gtk::IconView::SlotForeach

For instance, void on_foreach(const Gtk::TreeModel::Path& path);.

Constructor & Destructor Documentation

virtual Gtk::IconView::~IconView (  )  [virtual]
Gtk::IconView::IconView (  )
Gtk::IconView::IconView ( const Glib::RefPtr< TreeModel >&  model  )  [explicit]

Member Function Documentation

void Gtk::IconView::convert_widget_to_bin_window_coords ( int  wx,
int  wy,
int &  bx,
int &  by
) const

Converts widget coordinates to coordinates for the bin_window, as expected by e.g. get_path_at_pos().

Since gtkmm 2.12:
Parameters:
wx X coordinate relative to the widget.
wy Y coordinate relative to the widget.
bx Return location for bin_window X coordinate.
by Return location for bin_window Y coordinate.
Glib::RefPtr<Gdk::Pixmap> Gtk::IconView::create_drag_icon ( const TreeModel::Path&  path  )

Creates a Gdk::Pixmap representation of the item at path.

This image is used for a drag icon.

Since gtkmm 2.8:
Parameters:
path A Gtk::TreePath in icon_view.
Returns:
A newly-allocated pixmap of the drag icon.
void Gtk::IconView::enable_model_drag_dest ( const ArrayHandle_TargetEntry &  targets,
Gdk::DragAction  actions = Gdk::ACTION_COPY|Gdk::ACTION_MOVE
)

Turns the IconView into a drop destination for automatic DND.

Parameters:
targets The table of targets that the drag will support.
actions The bitmask of possible actions for a drag from this widget.
void Gtk::IconView::enable_model_drag_source ( const ArrayHandle_TargetEntry &  targets,
Gdk::ModifierType  start_button_mask = Gdk::MODIFIER_MASK,
Gdk::DragAction  actions = Gdk::ACTION_COPY|Gdk::ACTION_MOVE
)

Turns the IconView into a drag source for automatic DND.

Parameters:
targets Standard container of targets that the drag will support.
start_button_mask Mask of allowed buttons to start drag.
actions The bitmask of possible actions for a drag from this widget.
int Gtk::IconView::get_column_spacing (  )  const

Returns the value of the column-spacing property.

Since gtkmm 2.6:
Returns:
The space between columns.
int Gtk::IconView::get_columns (  )  const

Returns the value of the columns property.

Since gtkmm 2.6:
Returns:
The number of columns, or -1.
bool Gtk::IconView::get_cursor ( CellRenderer*&  cell  )  const

Fills in path and cell with the current cursor path and cell.

If the cursor isn't currently set, then path will be empty. If no cell currently has focus, then cell will be NULL.

Parameters:
cell The current focus cell.
Returns:
true if the cursor is set.
Since gtkmm 2.8:
bool Gtk::IconView::get_cursor ( TreeModel::Path&  path  )  const

Fills in path and cell with the current cursor path and cell.

If the cursor isn't currently set, then path will be empty. If no cell currently has focus, then cell will be NULL.

Parameters:
path The current cursor path.
Returns:
true if the cursor is set.
Since gtkmm 2.8:
bool Gtk::IconView::get_cursor ( TreeModel::Path&  path,
CellRenderer*&  cell
) const

Fills in path and cell with the current cursor path and cell.

If the cursor isn't currently set, then path will be empty. If no cell currently has focus, then cell will be NULL.

Parameters:
path The current cursor path.
cell The current focus cell.
Returns:
true if the cursor is set.
Since gtkmm 2.8:
bool Gtk::IconView::get_dest_item_at_pos ( int  drag_x,
int  drag_y,
IconViewDropPosition&  pos
) const

Determines the destination item for a given position.

Parameters:
drag_x The position to determine the destination item for.
drag_y the position to determine the destination item for.
pos,: The drop position.
Returns:
whether there is an item at the given position.
Since gtkmm 2.10:
bool Gtk::IconView::get_dest_item_at_pos ( int  drag_x,
int  drag_y,
TreeModel::Path&  path
) const

Determines the destination item for a given position.

Parameters:
drag_x The position to determine the destination item for.
drag_y the position to determine the destination item for.
path The path of the item.
Returns:
whether there is an item at the given position.
Since gtkmm 2.10:
bool Gtk::IconView::get_dest_item_at_pos ( int  drag_x,
int  drag_y,
TreeModel::Path&  path,
IconViewDropPosition&  pos
) const

Determines the destination item for a given position.

Parameters:
drag_x The position to determine the destination item for.
drag_y the position to determine the destination item for.
path The path of the item.
pos,: The drop position.
Returns:
whether there is an item at the given position.
Since gtkmm 2.10:
void Gtk::IconView::get_drag_dest_item ( IconViewDropPosition&  pos  )  const

Gets information about the item that is highlighted for feedback.

The drop position.

Since gtkmm 2.10:
void Gtk::IconView::get_drag_dest_item ( TreeModel::Path&  path  )  const

Gets information about the item that is highlighted for feedback.

Parameters:
path The highlighted item.
Since gtkmm 2.10:
void Gtk::IconView::get_drag_dest_item ( TreeModel::Path&  path,
IconViewDropPosition&  pos
) const

Gets information about the item that is highlighted for feedback.

Parameters:
path The highlighted item. The drop position.
Since gtkmm 2.10:
int Gtk::IconView::get_icon_width (  )  const

Returns the value of the item-width property.

Since gtkmm 2.6:
Returns:
The width of a single item, or -1.
bool Gtk::IconView::get_item_at_pos ( int  x,
int  y,
CellRenderer*&  cell
) const

Finds the path at the point (x, y), relative to widget coordinates.

Parameters:
x The x position to be identified.
y The y position to be identified.
path The path.
Returns:
true if an item exists at the specified position.
Since gtkmm 2.6:
bool Gtk::IconView::get_item_at_pos ( int  x,
int  y,
TreeModel::Path&  path
) const

Finds the path at the point (x, y), relative to widget coordinates.

Parameters:
x The x position to be identified.
y The y position to be identified.
path The path.
Returns:
true if an item exists at the specified position.
Since gtkmm 2.6:
bool Gtk::IconView::get_item_at_pos ( int  x,
int  y,
TreeModel::Path&  path,
CellRenderer*&  cell
) const

Finds the path at the point (x, y), relative to widget coordinates.

Parameters:
x The x position to be identified.
y The y position to be identified.
path The path.
cell The renderer responsible for the cell at (x, y).
Returns:
true if an item exists at the specified position.
Since gtkmm 2.6:
int Gtk::IconView::get_margin (  )  const

Returns the value of the margin property.

Since gtkmm 2.6:
Returns:
The space at the borders.
int Gtk::IconView::get_markup_column (  )  const

Returns the column with markup text for icon_view.

Since gtkmm 2.6:
Returns:
The markup column, or -1 if it's unset.
Glib::RefPtr<const TreeModel> Gtk::IconView::get_model (  )  const

Returns the model the Gtk::IconView is based on.

Returns 0 if the model is unset.

Since gtkmm 2.6:
Returns:
A Gtk::TreeModel, or 0 if none is currently being used.
Glib::RefPtr<TreeModel> Gtk::IconView::get_model (  )

Returns the model the Gtk::IconView is based on.

Returns 0 if the model is unset.

Since gtkmm 2.6:
Returns:
A Gtk::TreeModel, or 0 if none is currently being used.
Orientation Gtk::IconView::get_orientation (  )  const

Returns the value of the orientation property which determines whether the labels are drawn beside the icons instead of below.

Since gtkmm 2.6:
Returns:
The relative position of texts and icons.
TreeModel::Path Gtk::IconView::get_path_at_pos ( int  x,
int  y
) const

Finds the path at the point ( x, y), relative to bin_window coordinates.

See get_item_at_pos(), if you are also interested in the cell at the specified position. See convert_widget_to_bin_window_coords() for converting widget coordinates to bin_window coordinates.

Since gtkmm 2.6:
Parameters:
x The x position to be identified.
y The y position to be identified.
Returns:
The Gtk::TreePath corresponding to the icon or 0 if no icon exists at that position.
int Gtk::IconView::get_pixbuf_column (  )  const

Returns the column with pixbufs for icon_view.

Since gtkmm 2.6:
Returns:
The pixbuf column, or -1 if it's unset.
bool Gtk::IconView::get_reorderable (  )  const

Retrieves whether the user can reorder the list via drag-and-drop.

See set_reorderable().

Since gtkmm 2.8:
Returns:
true if the list can be reordered.
gint Gtk::IconView::get_row_spacing (  )  const

Returns the value of the row-spacing property.

Since gtkmm 2.6:
Returns:
The space between rows.
ArrayHandle_TreePaths Gtk::IconView::get_selected_items (  )  const

Creates a list of paths of all selected items.

Additionally, if you are planning on modifying the model after calling this function, you may want to convert the returned list into a list of Gtk::TreeRowReferences. To do this, you can use Gtk::Tree::row_reference_new().

To free the return value, use: |[ g_list_foreach (list, (GFunc)gtk_tree_path_free, 0); g_list_free (list); ]|

Since gtkmm 2.6:
Returns:
A List containing a Gtk::TreePath for each selected row.
SelectionMode Gtk::IconView::get_selection_mode (  )  const

Gets the selection mode of the icon_view.

Since gtkmm 2.6:
Returns:
The current selection mode.
int Gtk::IconView::get_spacing (  )  const

Returns the value of the spacing property.

Since gtkmm 2.6:
Returns:
The space between cells.
int Gtk::IconView::get_text_column (  )  const

Returns the column with text for icon_view.

Since gtkmm 2.6:
Returns:
The text column, or -1 if it's unset.
int Gtk::IconView::get_tooltip_column (  )  const

Returns the column of icon_view's model which is being used for displaying tooltips on icon_view's rows.

Since gtkmm 2.12:
Returns:
The index of the tooltip column that is currently being used, or -1 if this is disabled.
bool Gtk::IconView::get_tooltip_context_iter ( int &  x,
int &  y,
bool  keyboard_tip,
Gtk::TreeModel::iterator&  iter
)
Parameters:
x,: the x coordinate (relative to widget coordinates)
y,: the y coordinate (relative to widget coordinates)
keyboard_tip,: whether this is a keyboard tooltip or not
iter,: a pointer to receive a Gtk::TreeIter

This function is supposed to be used in a Gtk::Widget::query-tooltip signal handler for Gtk::IconView. The x, y and keyboard_tip values which are received in the signal handler, should be passed to this function without modification.

The return value indicates whether there is an icon view item at the given coordinates (true) or not (false) for mouse tooltips. For keyboard tooltips the item returned will be the cursor item. When true, then the iter which has been provided will be set to point to that row and the corresponding model. x and y will always be converted to be relative to IconView's bin_window if keyboard_tooltip is false.

Return value: whether or not the given tooltip context points to a item.

Since gtkmm 2.12:
bool Gtk::IconView::get_tooltip_context_path ( int &  x,
int &  y,
bool  keyboard_tip,
TreeModel::Path&  path
)
Parameters:
x,: the x coordinate (relative to widget coordinates)
y,: the y coordinate (relative to widget coordinates)
keyboard_tip,: whether this is a keyboard tooltip or not
path,: a reference to receive a Gtk::TreePath

This function is supposed to be used in a Gtk::Widget::query-tooltip signal handler for Gtk::IconView. The x, y and keyboard_tip values which are received in the signal handler, should be passed to this function without modification.

The return value indicates whether there is an icon view item at the given coordinates (true) or not (false) for mouse tooltips. For keyboard tooltips the item returned will be the cursor item. When true, then the path which has been provided will be set to point to that row and the corresponding model. x and y will always be converted to be relative to IconView's bin_window if keyboard_tooltip is false.

Return value: whether or not the given tooltip context points to a item.

Since gtkmm 2.12:
bool Gtk::IconView::get_visible_range ( TreeModel::Path&  start_path,
TreeModel::Path&  end_path
) const
const GtkIconView* Gtk::IconView::gobj (  )  const [inline]

Provides access to the underlying C GtkObject.

Reimplemented from Gtk::Container.

GtkIconView* Gtk::IconView::gobj (  )  [inline]

Provides access to the underlying C GtkObject.

Reimplemented from Gtk::Container.

void Gtk::IconView::item_activated ( const TreeModel::Path&  path  )

Activates the item determined by path.

Since gtkmm 2.6:
Parameters:
path The Gtk::TreePath to be activated.
virtual void Gtk::IconView::on_item_activated ( const TreeModel::Path&  path  )  [protected, virtual]
virtual void Gtk::IconView::on_selection_changed (  )  [protected, virtual]
virtual void Gtk::IconView::on_set_scroll_adjustments ( Adjustment*  hadjustment,
Adjustment*  vadjustment
) [protected, virtual]
bool Gtk::IconView::path_is_selected ( const TreeModel::Path&  path  )  const

Returns true if the icon pointed to by path is currently selected.

If path does not point to a valid location, false is returned.

Since gtkmm 2.6:
Parameters:
path A Gtk::TreePath to check selection on.
Returns:
true if path is selected.
Glib::PropertyProxy_ReadOnly<int> Gtk::IconView::property_column_spacing (  )  const

Space which is inserted between grid columns.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.
Glib::PropertyProxy<int> Gtk::IconView::property_column_spacing (  )

Space which is inserted between grid columns.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.
Glib::PropertyProxy_ReadOnly<int> Gtk::IconView::property_columns (  )  const

Number of columns to display.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.
Glib::PropertyProxy<int> Gtk::IconView::property_columns (  )

Number of columns to display.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.
Glib::PropertyProxy_ReadOnly<int> Gtk::IconView::property_item_width (  )  const

The width used for each item.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.
Glib::PropertyProxy<int> Gtk::IconView::property_item_width (  )

The width used for each item.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.
Glib::PropertyProxy_ReadOnly<int> Gtk::IconView::property_margin (  )  const

Space which is inserted at the edges of the icon view.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.
Glib::PropertyProxy<int> Gtk::IconView::property_margin (  )

Space which is inserted at the edges of the icon view.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.
Glib::PropertyProxy_ReadOnly<int> Gtk::IconView::property_markup_column (  )  const

Model column used to retrieve the text if using Pango markup.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.
Glib::PropertyProxy<int> Gtk::IconView::property_markup_column (  )

Model column used to retrieve the text if using Pango markup.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.
Glib::PropertyProxy_ReadOnly< Glib::RefPtr<TreeModel> > Gtk::IconView::property_model (  )  const

The model for the icon view.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.
Glib::PropertyProxy< Glib::RefPtr<TreeModel> > Gtk::IconView::property_model (  )

The model for the icon view.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.
Glib::PropertyProxy_ReadOnly<Orientation> Gtk::IconView::property_orientation (  )  const

How the text and icon of each item are positioned relative to each other.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.
Glib::PropertyProxy<Orientation> Gtk::IconView::property_orientation (  )

How the text and icon of each item are positioned relative to each other.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.
Glib::PropertyProxy_ReadOnly<int> Gtk::IconView::property_pixbuf_column (  )  const

Model column used to retrieve the icon pixbuf from.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.
Glib::PropertyProxy<int> Gtk::IconView::property_pixbuf_column (  )

Model column used to retrieve the icon pixbuf from.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.
Glib::PropertyProxy_ReadOnly<int> Gtk::IconView::property_row_spacing (  )  const

Space which is inserted between grid rows.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.
Glib::PropertyProxy<int> Gtk::IconView::property_row_spacing (  )

Space which is inserted between grid rows.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.
Glib::PropertyProxy_ReadOnly<SelectionMode> Gtk::IconView::property_selection_mode (  )  const

The selection mode.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.
Glib::PropertyProxy<SelectionMode> Gtk::IconView::property_selection_mode (  )

The selection mode.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.
Glib::PropertyProxy_ReadOnly<int> Gtk::IconView::property_spacing (  )  const

Space which is inserted between cells of an item.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.
Glib::PropertyProxy<int> Gtk::IconView::property_spacing (  )

Space which is inserted between cells of an item.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.
Glib::PropertyProxy_ReadOnly<int> Gtk::IconView::property_text_column (  )  const

Model column used to retrieve the text from.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.
Glib::PropertyProxy<int> Gtk::IconView::property_text_column (  )

Model column used to retrieve the text from.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.
void Gtk::IconView::scroll_to_path ( const TreeModel::Path&  path,
bool  use_align,
gfloat  row_align,
gfloat  col_align
)

Moves the alignments of icon_view to the position specified by path.

row_align determines where the row is placed, and col_align determines where column is placed. Both are expected to be between 0.0 and 1.0. 0.0 means left/top alignment, 1.0 means right/bottom alignment, 0.5 means center.

If use_align is false, then the alignment arguments are ignored, and the tree does the minimum amount of work to scroll the item onto the screen. This means that the item will be scrolled to the edge closest to its current position. If the item is currently visible on the screen, nothing is done.

This function only works if the model is set, and path is a valid row on the model. If the model changes before the icon_view is realized, the centered path will be modified to reflect this change.

Since gtkmm 2.8:
Parameters:
path The path of the item to move to.
use_align Whether to use alignment arguments, or false.
row_align The vertical alignment of the item specified by path.
col_align The horizontal alignment of the item specified by path.
void Gtk::IconView::select_all (  )

Selects all the icons.

icon_view must has its selection mode set to Gtk::SELECTION_MULTIPLE.

Since gtkmm 2.6:
void Gtk::IconView::select_path ( const TreeModel::Path&  path  )

Selects the row at path.

Since gtkmm 2.6:
Parameters:
path The Gtk::TreePath to be selected.
void Gtk::IconView::selected_foreach ( const SlotForeach &  slot  )

Calls a function for each selected icon.

Note that the model or selection cannot be modified from within this function.

Parameters:
slot The callback to call for each selected icon.
void Gtk::IconView::set_column_spacing ( int  column_spacing  )

Sets the column-spacing property which specifies the space which is inserted between the columns of the icon view.

Since gtkmm 2.6:
Parameters:
column_spacing The column spacing.
void Gtk::IconView::set_columns ( int  columns  )

Sets the columns property which determines in how many columns the icons are arranged.

If columns is -1, the number of columns will be chosen automatically to fill the available area.

Since gtkmm 2.6:
Parameters:
columns The number of columns.
void Gtk::IconView::set_cursor ( const TreeModel::Path&  path,
CellRenderer&  cell,
bool  start_editing
)

Sets the current keyboard focus to be at path, and selects it.

This is useful when you want to focus the user's attention on a particular item. If cell is not 0, then focus is given to the cell specified by it. Additionally, if start_editing is true, then editing should be started in the specified cell.

This function is often followed by <literal>gtk_widget_grab_focus (icon_view)</literal> in order to give keyboard focus to the widget. Please note that editing can only happen when the widget is realized.

Since gtkmm 2.8:
Parameters:
path A Gtk::TreePath.
cell One of the cell renderers of icon_view, or 0.
start_editing true if the specified cell should start being edited.
void Gtk::IconView::set_drag_dest_item ( const TreeModel::Path&  path,
IconViewDropPosition  pos
)

Sets the item that is highlighted for feedback.

Since gtkmm 2.8:
Parameters:
path The path of the item to highlight, or 0.
pos Specifies where to drop, relative to the item.
void Gtk::IconView::set_item_width ( int  item_width  )

Sets the item-width property which specifies the width to use for each item.

If it is set to -1, the icon view will automatically determine a suitable item size.

Since gtkmm 2.6:
Parameters:
item_width The width for each item.
void Gtk::IconView::set_margin ( int  margin  )

Sets the margin property which specifies the space which is inserted at the top, bottom, left and right of the icon view.

Since gtkmm 2.6:
Parameters:
margin The margin.
void Gtk::IconView::set_markup_column ( const TreeModelColumnBase&  column  )

Sets the column with markup information for icon_view to be column.

The markup column must be of type TYPE_STRING. If the markup column is set to something, it overrides the text column set by set_text_column().

Since gtkmm 2.6:
Parameters:
column A column in the currently used model, or -1 to display no text.
void Gtk::IconView::set_markup_column ( int  column  )

Sets the column with markup information for icon_view to be column.

The markup column must be of type TYPE_STRING. If the markup column is set to something, it overrides the text column set by set_text_column().

Since gtkmm 2.6:
Parameters:
column A column in the currently used model, or -1 to display no text.
void Gtk::IconView::set_model ( const Glib::RefPtr< TreeModel >&  model  )

Sets the model for a Gtk::IconView.

If the icon_view already has a model set, it will remove it before setting the new model. Use unset_model() to unset the old model.

Since gtkmm 2.6:
Parameters:
model The model.
void Gtk::IconView::set_orientation ( Orientation  orientation  )

Sets the orientation property which determines whether the labels are drawn beside the icons instead of below.

Since gtkmm 2.6:
Parameters:
orientation The relative position of texts and icons.
void Gtk::IconView::set_pixbuf_column ( const TreeModelColumnBase&  column  )

Sets the column with pixbufs for icon_view to be column.

The pixbuf column must be of type Gdk::TYPE_PIXBUF

Since gtkmm 2.6:
Parameters:
column A column in the currently used model, or -1 to disable.
void Gtk::IconView::set_pixbuf_column ( int  column  )

Sets the column with pixbufs for icon_view to be column.

The pixbuf column must be of type Gdk::TYPE_PIXBUF

Since gtkmm 2.6:
Parameters:
column A column in the currently used model, or -1 to disable.
void Gtk::IconView::set_reorderable ( bool  reorderable = true  )

This function is a convenience function to allow you to reorder models that support the Gtk::TreeDragSourceIface and the Gtk::TreeDragDestIface.

Both Gtk::TreeStore and Gtk::ListStore support these. If reorderable is true, then the user can reorder the model by dragging and dropping rows. The developer can listen to these changes by connecting to the model's row_inserted and row_deleted signals. The reordering is implemented by setting up the icon view as a drag source and destination. Therefore, drag and drop can not be used in a reorderable view for any other purpose.

This function does not give you any degree of control over the order -- any reordering is allowed. If more control is needed, you should probably handle drag and drop manually.

Since gtkmm 2.8:
Parameters:
reorderable true, if the list of items can be reordered.
void Gtk::IconView::set_row_spacing ( int  row_spacing  )

Sets the row-spacing property which specifies the space which is inserted between the rows of the icon view.

Since gtkmm 2.6:
Parameters:
row_spacing The row spacing.
void Gtk::IconView::set_selection_mode ( SelectionMode  mode  )

Sets the selection mode of the icon_view.

Since gtkmm 2.6:
Parameters:
mode The selection mode.
void Gtk::IconView::set_spacing ( int  spacing  )

Sets the spacing property which specifies the space which is inserted between the cells (i.e. the icon and the text) of an item.

Since gtkmm 2.6:
Parameters:
spacing The spacing.
void Gtk::IconView::set_text_column ( const TreeModelColumnBase&  model_column  )

Sets the column with text for icon_view to be column.

The text column must be of type TYPE_STRING.

Since gtkmm 2.6:
Parameters:
column A column in the currently used model, or -1 to display no text.
void Gtk::IconView::set_text_column ( int  column  )

Sets the column with text for icon_view to be column.

The text column must be of type TYPE_STRING.

Since gtkmm 2.6:
Parameters:
column A column in the currently used model, or -1 to display no text.
void Gtk::IconView::set_tooltip_cell ( const Glib::RefPtr< Tooltip >&  tooltip,
const TreeModel::Path&  path
)

Sets the tip area of tooltip to the area occupied by the item pointed to by path.

See also Tooltip::set_tip_area().

Since gtkmm 2.12:
Parameters:
tooltip A Gtk::Tooltip.
path A Gtk::TreePath.
void Gtk::IconView::set_tooltip_cell ( const Glib::RefPtr< Tooltip >&  tooltip,
const TreeModel::Path&  path,
CellRenderer&  cell
)

Sets the tip area of tooltip to the area which cell occupies in the item pointed to by path.

See also Tooltip::set_tip_area().

Since gtkmm 2.12:
Parameters:
tooltip A Gtk::Tooltip.
path A Gtk::TreePath.
cell A Gtk::CellRenderer.
void Gtk::IconView::set_tooltip_column ( int  column  )

If you only plan to have simple (text-only) tooltips on full items, you can use this function to have Gtk::IconView handle these automatically for you.

column should be set to the column in icon_view's model containing the tooltip texts, or -1 to disable this feature.

When enabled, Gtk::Widget::has-tooltip will be set to true and icon_view will connect a Gtk::Widget::query-tooltip signal handler.

Since gtkmm 2.12:
Parameters:
column An integer, which is a valid column number for icon_view's model.
void Gtk::IconView::set_tooltip_item ( const Glib::RefPtr< Tooltip >&  tooltip,
const TreeModel::Path&  path
)

Sets the tip area of tooltip to be the area covered by the item at path.

See also Tooltip::set_tip_area().

Since gtkmm 2.12:
Parameters:
tooltip A Gtk::Tooltip.
path A Gtk::TreePath.
Glib::SignalProxy1< void,const TreeModel::Path& > Gtk::IconView::signal_item_activated (  )
Prototype:
void on_my_item_activated(const TreeModel::Path& path)
Glib::SignalProxy0< void > Gtk::IconView::signal_selection_changed (  )
Prototype:
void on_my_selection_changed()
Glib::SignalProxy2< void,Adjustment*,Adjustment* > Gtk::IconView::signal_set_scroll_adjustments (  )
Prototype:
void on_my_set_scroll_adjustments(Adjustment* hadjustment, Adjustment* vadjustment)
void Gtk::IconView::unselect_all (  )

Unselects all the icons.

Since gtkmm 2.6:
void Gtk::IconView::unselect_path ( const TreeModel::Path&  path  )

Unselects the row at path.

Since gtkmm 2.6:
Parameters:
path The Gtk::TreePath to be unselected.
void Gtk::IconView::unset_model (  )

Remove the model from the IconView.

See also:
set_model().
Since gtkmm 2.16:
void Gtk::IconView::unset_model_drag_dest (  )

Undoes the effect of enable_model_drag_dest().

Calling this method sets Gtk::IconView:reorderable to false.

Since gtkmm 2.8:
void Gtk::IconView::unset_model_drag_source (  )

Undoes the effect of enable_model_drag_source().

Calling this method sets Gtk::IconView:reorderable to false.

Since gtkmm 2.8:

Friends And Related Function Documentation

Gtk::IconView* wrap ( GtkIconView *  object,
bool  take_copy = false
) [related]

A Glib::wrap() method for this object.

Parameters:
object The C instance.
take_copy False if the result should take ownership of the C instance. True if it should take a new copy or ref.
Returns:
A C++ instance that wraps this C instance.
The documentation for this class was generated from the following file:
Generated on Tue May 4 13:21:53 2010 for gtkmm by  doxygen 1.6.1
