Gtk::Image Class Reference

A widget displaying an image. More...

Inheritance diagram for Gtk::Image:

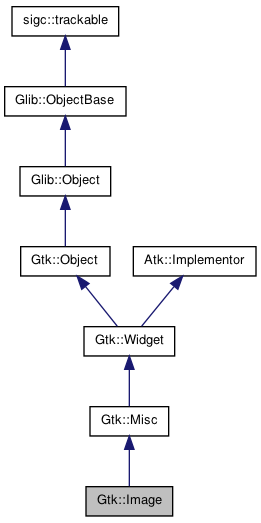

Collaboration diagram for Gtk::Image:

List of all members.

Public Member Functions
virtual	~Image ()
GtkImage*	gobj ()
	Provides access to the underlying C GtkObject.
const GtkImage*	gobj () const
	Provides access to the underlying C GtkObject.
	Image ()
	Image (const Glib::RefPtr< Gdk::Pixmap >& pixmap, const Glib::RefPtr< Gdk::Bitmap >& mask)
	Creates an Image widget displaying pixmap with a mask.
	Image (const Glib::RefPtr< Gdk::Image >& image, const Glib::RefPtr< Gdk::Bitmap >& mask)
	Creates an Image widget displaying an image with a mask.
	Image (const std::string& file)
	Creates an Image widget displaying the file filename.
	Image (const Glib::RefPtr< Gdk::Pixbuf >& pixbuf)
	Creates a new Image widget displaying pixbuf.
	Image (const IconSet& icon_set, IconSize icon_size)
	Creates a new Image displaying an icon set.
	Image (IconSet& icon_set, IconSize icon_size)
	Image (const Gtk::StockID& stock_id, IconSize size)
	Creates am Image displaying a stock icon.
	Image (const Glib::RefPtr< Gdk::PixbufAnimation >& animation)
void	set (const Glib::RefPtr< Gdk::Pixmap >& pixmap, const Glib::RefPtr< Gdk::Bitmap >& mask)
	See the Image::Image(const Glib::RefPtr<Gdk::Pixmap>& pixmap, const Glib::RefPtr<Gdk::Bitmap>& mask) constructor for details.
void	set (const Glib::RefPtr< Gdk::Image >& gdk_image, const Glib::RefPtr< Gdk::Bitmap >& mask)
	See the Image::Image(const Glib::RefPtr<Gdk::Image>& image, const Glib::RefPtr<Gdk::Bitmap>& mask) constructor for details.
void	set (const std::string& filename)
	See the Image::Image(const std::string& file) constructor for details.
void	set (const Glib::RefPtr< Gdk::Pixbuf >& pixbuf)
	See the Image::Image(const Glib::RefPtr<Gdk::Pixbuf>& pixbuf) constructor for details.
void	set (const Gtk::StockID& stock_id, IconSize size)
	See the Image::Image(const Gtk::StockID& stock_id, IconSize size) constructor for details.
void	set (IconSet& icon_set, IconSize size)
	See new_from_icon_set() for details.
void	set (const IconSet& icon_set, IconSize size)
	See new_from_icon_set() for details.
void	set (const Glib::RefPtr< Gdk::PixbufAnimation >& animation)
	Causes the Gtk::Image to display the given animation (or display nothing, if you set the animation to 0).
void	set (const Glib::RefPtr< const Gio::Icon >& icon, IconSize size)
	See new_from_gicon() for details.
void	set_from_icon_name (const Glib::ustring& icon_name, IconSize size)
	Causes the Image to display an icon from the current icon theme.
void	clear ()
	Resets the image to be empty.
ImageType	get_storage_type () const
	Gets the type of representation being used by the Gtk::Image to store image data.
void	get_pixmap (Glib::RefPtr< Gdk::Pixmap >& pixmap, Glib::RefPtr< Gdk::Bitmap >& mask) const
void	get_image (Glib::RefPtr< Gdk::Image >& gdk_image, Glib::RefPtr< Gdk::Bitmap >& mask) const
Glib::RefPtr< Gdk::Pixbuf >	get_pixbuf ()
	Gets the Gdk::Pixbuf being displayed by the Gtk::Image.
Glib::RefPtr< const Gdk::Pixbuf >	get_pixbuf () const
	Gets the Gdk::Pixbuf being displayed by the Gtk::Image.
void	get_stock (Gtk::StockID& stock_id, IconSize&size) const
void	get_icon_set (IconSet& icon_set, IconSize&size) const
Glib::RefPtr < Gdk::PixbufAnimation >	get_animation ()
	Gets the Gdk::PixbufAnimation being displayed by the Gtk::Image.
Glib::RefPtr< const Gdk::PixbufAnimation >	get_animation () const
	Gets the Gdk::PixbufAnimation being displayed by the Gtk::Image.
Glib::RefPtr< Gio::Icon >	get_gicon (Gtk::IconSize& icon_size)
	Gets the Gio::Icon and size being displayed by the Gtk::Image.
Glib::RefPtr< const Gio::Icon >	get_gicon (Gtk::IconSize& icon_size) const
	Gets the Gio::Icon and size being displayed by the Gtk::Image.
Glib::ustring	get_icon_name () const
Glib::ustring	get_icon_name (IconSize&size)
int	get_pixel_size () const
	Gets the pixel size used for named icons.
void	set_pixel_size (int pixel_size)
	Sets the pixel size to use for named icons.
Glib::PropertyProxy < Glib::RefPtr< Gdk::Pixbuf > >	property_pixbuf ()
	A GdkPixbuf to display.
Glib::PropertyProxy_ReadOnly < Glib::RefPtr< Gdk::Pixbuf > >	property_pixbuf () const
	A GdkPixbuf to display.
Glib::PropertyProxy < Glib::RefPtr< Gdk::Pixmap > >	property_pixmap ()
	A GdkPixmap to display.
Glib::PropertyProxy_ReadOnly < Glib::RefPtr< Gdk::Pixmap > >	property_pixmap () const
	A GdkPixmap to display.
Glib::PropertyProxy < Glib::RefPtr< Gdk::Image > >	property_image ()
	A GdkImage to display.
Glib::PropertyProxy_ReadOnly < Glib::RefPtr< Gdk::Image > >	property_image () const
	A GdkImage to display.
Glib::PropertyProxy < Glib::RefPtr< Gdk::Pixmap > >	property_mask ()
	Mask bitmap to use with GdkImage or GdkPixmap.
Glib::PropertyProxy_ReadOnly < Glib::RefPtr< Gdk::Pixmap > >	property_mask () const
	Mask bitmap to use with GdkImage or GdkPixmap.
Glib::PropertyProxy < Glib::ustring >	property_file ()
	Filename to load and display.
Glib::PropertyProxy_ReadOnly < Glib::ustring >	property_file () const
	Filename to load and display.
Glib::PropertyProxy < Glib::ustring >	property_stock ()
	Stock ID for a stock image to display.
Glib::PropertyProxy_ReadOnly < Glib::ustring >	property_stock () const
	Stock ID for a stock image to display.
Glib::PropertyProxy< Gtk::IconSet >	property_icon_set ()
	Icon set to display.
Glib::PropertyProxy_ReadOnly < Gtk::IconSet >	property_icon_set () const
	Icon set to display.
Glib::PropertyProxy< int >	property_icon_size ()
	Symbolic size to use for stock icon, icon set or named icon.
Glib::PropertyProxy_ReadOnly< int >	property_icon_size () const
	Symbolic size to use for stock icon, icon set or named icon.
Glib::PropertyProxy< int >	property_pixel_size ()
	Pixel size to use for named icon.
Glib::PropertyProxy_ReadOnly< int >	property_pixel_size () const
	Pixel size to use for named icon.
Glib::PropertyProxy < Glib::RefPtr < Gdk::PixbufAnimation > >	property_pixbuf_animation ()
	GdkPixbufAnimation to display.
Glib::PropertyProxy_ReadOnly < Glib::RefPtr < Gdk::PixbufAnimation > >	property_pixbuf_animation () const
	GdkPixbufAnimation to display.
Glib::PropertyProxy < Glib::ustring >	property_icon_name ()
	The name of the icon from the icon theme.
Glib::PropertyProxy_ReadOnly < Glib::ustring >	property_icon_name () const
	The name of the icon from the icon theme.
Glib::PropertyProxy_ReadOnly < ImageType >	property_storage_type () const
	The representation being used for image data.
Glib::PropertyProxy < Glib::RefPtr< Gio::Icon > >	property_gicon ()
	The GIcon being displayed.
Glib::PropertyProxy_ReadOnly < Glib::RefPtr< Gio::Icon > >	property_gicon () const
	The GIcon being displayed.
Related Functions
(Note that these are not member functions.)
Gtk::Image*	wrap (GtkImage* object, bool take_copy=false)
	A Glib::wrap() method for this object.

---

Detailed Description

A widget displaying an image.

The Gtk::Image widget displays an image. Various kinds of object can be displayed as an image; most typically, you would load a Gdk::Pixbuf ("pixel buffer") from a file, and then display that.

Gtk::Image is a subclass of Gtk::Misc, which implies that you can align it (center, left, right) and add padding to it, using Gtk::Misc methods.

Gtk::Image is a "no window" widget (has no Gdk::Window of its own), so by default does not receive events. If you want to receive events on the image, such as button clicks, place the image inside a Gtk::EventBox, then connect to the event signals on the event box.

The Image widget looks like this:

---

Constructor & Destructor Documentation

virtual Gtk::Image::~Image

(

)

[virtual]

Gtk::Image::Image

(

)

Gtk::Image::Image	(	const Glib::RefPtr< Gdk::Pixmap >&	pixmap,
		const Glib::RefPtr< Gdk::Bitmap >&	mask
	)		[explicit]

Creates an Image widget displaying pixmap with a mask.

A Gdk::Pixmap is a server-side image buffer in the pixel format of the current display.

Parameters:

pixmap	A Gdk::Pixmap
mask	A Gdk::Bitmap

Gtk::Image::Image	(	const Glib::RefPtr< Gdk::Image >&	image,
		const Glib::RefPtr< Gdk::Bitmap >&	mask
	)		[explicit]

Creates an Image widget displaying an image with a mask.

A Gdk::Image is a client-side image buffer in the pixel format of the current display.

Gtk::Image::Image

(

const std::string &

file

)

[explicit]

Creates an Image widget displaying the file filename.

If the file isn't found or can't be loaded, the resulting Gtk::Image will display a "broken image" icon.

If the file contains an animation, the image will contain an animation.

If you need to detect failures to load the file, use Gdk::Pixbuf::create_from_file() to load the file yourself, then create the GtkImage from the pixbuf. (Or for animations, use Gdk::PixbufAnimation::create_from_file()).

The storage type (get_storage_type()) of the returned image is not defined. It will be whatever is appropriate for displaying the file.

Gtk::Image::Image

(

const Glib::RefPtr< Gdk::Pixbuf >&

pixbuf

)

[explicit]

Creates a new Image widget displaying pixbuf.

Note that this just creates an GtkImage from the pixbuf. The Gtk::Image created will not react to state changes. Should you want that, you should use the constructor that takes an IconSet.

Gtk::Image::Image	(	const IconSet&	icon_set,
		IconSize	icon_size
	)		[explicit]

Creates a new Image displaying an icon set.

Sample stock sizes are ICON_SIZE_MENU, ICON_SIZE_SMALL_TOOLBAR. Instead of using this function, usually it's better to create an IconFactory, put your icon sets in the icon factory, add the icon factory to the list of default factories with IconFactory::add_default(), and then use the constructor that takes a StockID. This will allow themes to override the icon you ship with your application.

Parameters:

icon_set	An IconSet
size	A stock icon size.

Since gtkmm 2.24:

Gtk::Image::Image	(	IconSet&	icon_set,
		IconSize	icon_size
	)		[explicit]

Deprecated:

Use the constructor that takes a const IconSet& icon_set instead.

Gtk::Image::Image	(	const Gtk::StockID&	stock_id,
		IconSize	size
	)

Creates am Image displaying a stock icon.

Sample stock icon identifiers are Gtk::Stock::OPEN, Gtk::Stock::EXIT. Sample stock sizes are Gtk::ICON_SIZE_MENU, Gtk::ICON_SIZE_SMALL_TOOLBAR. If the stock icon name isn't known, a "broken image" icon will be displayed instead. You can register your own stock icon names - see Gtk::IconFactory::add().

Parameters:

stock_id	A stock icon.
size	A stock icon size.

Gtk::Image::Image

(

const Glib::RefPtr< Gdk::PixbufAnimation >&

animation

)

---

Member Function Documentation

void Gtk::Image::clear

(

)

Resets the image to be empty.

Since gtkmm 2.8:

Glib::RefPtr<Gdk::PixbufAnimation> Gtk::Image::get_animation

(

)

Gets the Gdk::PixbufAnimation being displayed by the Gtk::Image.

The storage type of the image must be Gtk::IMAGE_EMPTY or Gtk::IMAGE_ANIMATION (see get_storage_type()). The caller of this function does not own a reference to the returned animation.

Returns:

The displayed animation, or 0 if the image is empty.

Glib::RefPtr<const Gdk::PixbufAnimation> Gtk::Image::get_animation

(

)

const

Gets the Gdk::PixbufAnimation being displayed by the Gtk::Image.

The storage type of the image must be Gtk::IMAGE_EMPTY or Gtk::IMAGE_ANIMATION (see get_storage_type()). The caller of this function does not own a reference to the returned animation.

Returns:

The displayed animation, or 0 if the image is empty.

Glib::RefPtr<Gio::Icon> Gtk::Image::get_gicon

(

Gtk::IconSize&

icon_size

)

Gets the Gio::Icon and size being displayed by the Gtk::Image.

The storage type of the image must be IMAGE_EMPTY or IMAGE_GICON (see get_storage_type()).

Parameters:

icon_size

A place to store an icon size.

Since gtkmm 2.14:

Glib::RefPtr<const Gio::Icon> Gtk::Image::get_gicon

(

Gtk::IconSize&

icon_size

)

const

Gets the Gio::Icon and size being displayed by the Gtk::Image.

The storage type of the image must be IMAGE_EMPTY or IMAGE_GICON (see get_storage_type()).

Parameters:

icon_size

A place to store an icon size.

Since gtkmm 2.14:

Glib::ustring Gtk::Image::get_icon_name

(

)

const

Glib::ustring Gtk::Image::get_icon_name

(

IconSize&

size

)

void Gtk::Image::get_icon_set	(	IconSet&	icon_set,
		IconSize&	size
	)		const

void Gtk::Image::get_image	(	Glib::RefPtr< Gdk::Image >&	gdk_image,
		Glib::RefPtr< Gdk::Bitmap >&	mask
	)		const

Glib::RefPtr<Gdk::Pixbuf> Gtk::Image::get_pixbuf

(

)

Gets the Gdk::Pixbuf being displayed by the Gtk::Image.

The storage type of the image must be Gtk::IMAGE_EMPTY or Gtk::IMAGE_PIXBUF (see get_storage_type()). The caller of this function does not own a reference to the returned pixbuf.

Returns:

The displayed pixbuf, or 0 if the image is empty.

Glib::RefPtr<const Gdk::Pixbuf> Gtk::Image::get_pixbuf

(

)

const

Gets the Gdk::Pixbuf being displayed by the Gtk::Image.

The storage type of the image must be Gtk::IMAGE_EMPTY or Gtk::IMAGE_PIXBUF (see get_storage_type()). The caller of this function does not own a reference to the returned pixbuf.

Returns:

The displayed pixbuf, or 0 if the image is empty.

int Gtk::Image::get_pixel_size

(

)

const

Gets the pixel size used for named icons.

Since gtkmm 2.6:

Returns:

The pixel size used for named icons.

void Gtk::Image::get_pixmap	(	Glib::RefPtr< Gdk::Pixmap >&	pixmap,
		Glib::RefPtr< Gdk::Bitmap >&	mask
	)		const

void Gtk::Image::get_stock	(	Gtk::StockID&	stock_id,
		IconSize&	size
	)		const

ImageType Gtk::Image::get_storage_type

(

)

const

Gets the type of representation being used by the Gtk::Image to store image data.

If the Gtk::Image has no image data, the return value will be Gtk::IMAGE_EMPTY.

Returns:

Image representation being used.

const GtkImage* Gtk::Image::gobj

(

)

const [inline]

Provides access to the underlying C GtkObject.

Reimplemented from Gtk::Misc.

GtkImage* Gtk::Image::gobj

(

)

[inline]

Provides access to the underlying C GtkObject.

Reimplemented from Gtk::Misc.

Glib::PropertyProxy<Glib::ustring> Gtk::Image::property_file

(

)

Filename to load and display.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:

A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy_ReadOnly<Glib::ustring> Gtk::Image::property_file

(

)

const

Filename to load and display.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:

A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy_ReadOnly< Glib::RefPtr<Gio::Icon> > Gtk::Image::property_gicon

(

)

const

The GIcon being displayed.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:

A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy< Glib::RefPtr<Gio::Icon> > Gtk::Image::property_gicon

(

)

The GIcon being displayed.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:

A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy<Glib::ustring> Gtk::Image::property_icon_name

(

)

The name of the icon from the icon theme.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:

A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy_ReadOnly<Glib::ustring> Gtk::Image::property_icon_name

(

)

const

The name of the icon from the icon theme.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:

A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy<Gtk::IconSet> Gtk::Image::property_icon_set

(

)

Icon set to display.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:

A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy_ReadOnly<Gtk::IconSet> Gtk::Image::property_icon_set

(

)

const

Icon set to display.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:

A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy_ReadOnly<int> Gtk::Image::property_icon_size

(

)

const

Symbolic size to use for stock icon, icon set or named icon.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:

A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy<int> Gtk::Image::property_icon_size

(

)

Symbolic size to use for stock icon, icon set or named icon.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:

A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy< Glib::RefPtr<Gdk::Image> > Gtk::Image::property_image

(

)

A GdkImage to display.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:

A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy_ReadOnly< Glib::RefPtr<Gdk::Image> > Gtk::Image::property_image

(

)

const

A GdkImage to display.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:

A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy< Glib::RefPtr<Gdk::Pixmap> > Gtk::Image::property_mask

(

)

Mask bitmap to use with GdkImage or GdkPixmap.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:

A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy_ReadOnly< Glib::RefPtr<Gdk::Pixmap> > Gtk::Image::property_mask

(

)

const

Mask bitmap to use with GdkImage or GdkPixmap.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:

A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy< Glib::RefPtr<Gdk::Pixbuf> > Gtk::Image::property_pixbuf

(

)

A GdkPixbuf to display.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:

A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy_ReadOnly< Glib::RefPtr<Gdk::Pixbuf> > Gtk::Image::property_pixbuf

(

)

const

A GdkPixbuf to display.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:

A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy< Glib::RefPtr<Gdk::PixbufAnimation> > Gtk::Image::property_pixbuf_animation

(

)

GdkPixbufAnimation to display.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:

A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy_ReadOnly< Glib::RefPtr<Gdk::PixbufAnimation> > Gtk::Image::property_pixbuf_animation

(

)

const

GdkPixbufAnimation to display.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:

A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy_ReadOnly<int> Gtk::Image::property_pixel_size

(

)

const

Pixel size to use for named icon.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:

A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy<int> Gtk::Image::property_pixel_size

(

)

Pixel size to use for named icon.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:

A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy_ReadOnly< Glib::RefPtr<Gdk::Pixmap> > Gtk::Image::property_pixmap

(

)

const

A GdkPixmap to display.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:

A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy< Glib::RefPtr<Gdk::Pixmap> > Gtk::Image::property_pixmap

(

)

A GdkPixmap to display.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:

A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy<Glib::ustring> Gtk::Image::property_stock

(

)

Stock ID for a stock image to display.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:

A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy_ReadOnly<Glib::ustring> Gtk::Image::property_stock

(

)

const

Stock ID for a stock image to display.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:

A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy_ReadOnly<ImageType> Gtk::Image::property_storage_type

(

)

const

The representation being used for image data.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:

A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

void Gtk::Image::set

(

const std::string &

filename

)

See the Image::Image(const std::string& file) constructor for details.

Parameters:

filename

A filename.

void Gtk::Image::set	(	const Glib::RefPtr< const Gio::Icon > &	icon,
		IconSize	size
	)

See new_from_gicon() for details.

Since gtkmm 2.14:

Parameters:

icon	An icon.
size	An icon size.

void Gtk::Image::set	(	const Glib::RefPtr< Gdk::Pixmap >&	pixmap,
		const Glib::RefPtr< Gdk::Bitmap >&	mask
	)

See the Image::Image(const Glib::RefPtr<Gdk::Pixmap>& pixmap, const Glib::RefPtr<Gdk::Bitmap>& mask) constructor for details.

Parameters:

pixmap	A Gdk::Pixmap.
mask	A Gdk::Bitmap.

void Gtk::Image::set	(	const IconSet&	icon_set,
		IconSize	size
	)

See new_from_icon_set() for details.

Parameters:

icon_set	A Gtk::IconSet.
size	A stock icon size.

void Gtk::Image::set	(	const Glib::RefPtr< Gdk::Image >&	gdk_image,
		const Glib::RefPtr< Gdk::Bitmap >&	mask
	)

See the Image::Image(const Glib::RefPtr<Gdk::Image>& image, const Glib::RefPtr<Gdk::Bitmap>& mask) constructor for details.

Parameters:

gdk_image	A Gdk::Image.
mask	A Gdk::Bitmap.

void Gtk::Image::set

(

const Glib::RefPtr< Gdk::PixbufAnimation >&

animation

)

Causes the Gtk::Image to display the given animation (or display nothing, if you set the animation to 0).

Parameters:

animation

The Gdk::PixbufAnimation.

void Gtk::Image::set

(

const Glib::RefPtr< Gdk::Pixbuf >&

pixbuf

)

See the Image::Image(const Glib::RefPtr<Gdk::Pixbuf>& pixbuf) constructor for details.

Parameters:

pixbuf

A Gdk::Pixbuf.

void Gtk::Image::set	(	const Gtk::StockID&	stock_id,
		IconSize	size
	)

See the Image::Image(const Gtk::StockID& stock_id, IconSize size) constructor for details.

Parameters:

stock_id	A stock icon name.
size	A stock icon size.

void Gtk::Image::set	(	IconSet&	icon_set,
		IconSize	size
	)

See new_from_icon_set() for details.

Deprecated:

Use the method that takes a const IconSet& instead.

Parameters:

icon_set	A Gtk::IconSet.
size	A stock icon size.

void Gtk::Image::set_from_icon_name	(	const Glib::ustring &	icon_name,
		IconSize	size
	)

Causes the Image to display an icon from the current icon theme.

If the icon name isn't known, a "broken image" icon will be displayed instead. If the current icon theme is changed, the icon will be updated appropriately.

Since gtkmm 2.6:

Parameters:

icon_name	An icon name.
size	A stock icon size.

void Gtk::Image::set_pixel_size

(

int

pixel_size

)

Sets the pixel size to use for named icons.

If the pixel size is set to a value != -1, it is used instead of the icon size set by set_from_icon_name().

Since gtkmm 2.6:

Parameters:

pixel_size

The new pixel size.

---

Friends And Related Function Documentation

Gtk::Image* wrap	(	GtkImage *	object,
		bool	take_copy = false
	)		[related]

A Glib::wrap() method for this object.

Parameters:

object	The C instance.
take_copy	False if the result should take ownership of the C instance. True if it should take a new copy or ref.

Returns:

A C++ instance that wraps this C instance.

---

The documentation for this class was generated from the following file:

• gtkmm/image.h
