Gtk::ScaleButton Class Reference

A button which pops up a scale widget. More...

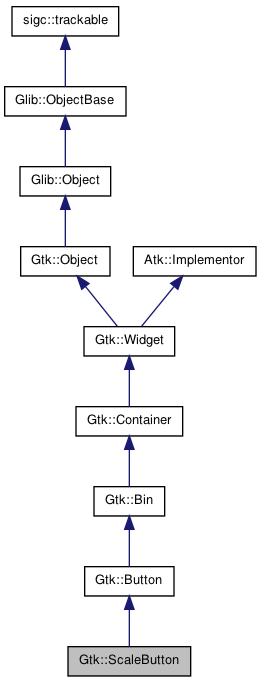

Inheritance diagram for Gtk::ScaleButton:

Collaboration diagram for Gtk::ScaleButton:

List of all members.

Public Member Functions
virtual	~ScaleButton ()
GtkScaleButton*	gobj ()
	Provides access to the underlying C GtkObject.
const GtkScaleButton*	gobj () const
	Provides access to the underlying C GtkObject.
	ScaleButton (IconSize size, double min, double max, double step, const Glib::StringArrayHandle& icons)
void	set_icons (const Glib::StringArrayHandle& icons)
	Sets the icons to be used by the scale button.
double	get_value () const
	Gets the current value of the scale button.
void	set_value (double value)
	Sets the current value of the scale; if the value is outside the minimum or maximum range values, it will be clamped to fit inside them.
Gtk::Adjustment*	get_adjustment ()
	Gets the Gtk::Adjustment associated with the Gtk::ScaleButton's scale.
Gtk::Adjustment*	get_adjustment () const
	Gets the Gtk::Adjustment associated with the Gtk::ScaleButton's scale.
void	set_adjustment (Gtk::Adjustment& adjustment)
	Sets the Gtk::Adjustment to be used as a model for the Gtk::ScaleButton's scale.
Orientation	get_orientation ()
	Gets the orientation of the Gtk::ScaleButton's popup window.
void	set_orientation (Orientation orientation)
	Sets the orientation of the Gtk::ScaleButton's popup window.
Widget*	get_plus_button ()
	Retrieves the plus button of the Gtk::ScaleButton.
const Widget*	get_plus_button () const
	Retrieves the plus button of the Gtk::ScaleButton.
Widget*	get_minus_button ()
	Retrieves the minus button of the Gtk::ScaleButton.
const Widget*	get_minus_button () const
	Retrieves the minus button of the Gtk::ScaleButton.
Gtk::Widget*	get_popup ()
	Retrieves the popup of the Gtk::ScaleButton.
const Gtk::Widget*	get_popup () const
	Retrieves the popup of the Gtk::ScaleButton.
Glib::SignalProxy1< void, double >	signal_value_changed ()
Glib::PropertyProxy< double >	property_value ()
	The value of the scale.
Glib::PropertyProxy_ReadOnly < double >	property_value () const
	The value of the scale.
Glib::PropertyProxy< IconSize >	property_size ()
	The icon size.
Glib::PropertyProxy_ReadOnly < IconSize >	property_size () const
	The icon size.
Glib::PropertyProxy< Adjustment* >	property_adjustment ()
	The GtkAdjustment that contains the current value of this scale button object.
Glib::PropertyProxy_ReadOnly < Adjustment* >	property_adjustment () const
	The GtkAdjustment that contains the current value of this scale button object.
Glib::PropertyProxy < Glib::StringArrayHandle >	property_icons ()
	List of icon names.
Glib::PropertyProxy_ReadOnly < Glib::StringArrayHandle >	property_icons () const
	List of icon names.
Glib::PropertyProxy< Orientation >	property_orientation ()
	The orientation of the orientable.
Glib::PropertyProxy_ReadOnly < Orientation >	property_orientation () const
	The orientation of the orientable.
Protected Member Functions
virtual void	on_value_changed (double value)
Related Functions
(Note that these are not member functions.)
Gtk::ScaleButton*	wrap (GtkScaleButton* object, bool take_copy=false)
	A Glib::wrap() method for this object.

---

Detailed Description

A button which pops up a scale widget.

This kind of widget is commonly used for volume controls in multimedia applications, and there is a Gtk::VolumeButton subclass that is tailored for this use case.

Since gtkmm 2.12:

---

Constructor & Destructor Documentation

virtual Gtk::ScaleButton::~ScaleButton

(

)

[virtual]

Gtk::ScaleButton::ScaleButton	(	IconSize	size,
		double	min,
		double	max,
		double	step,
		const Glib::StringArrayHandle &	icons
	)		[explicit]

---

Member Function Documentation

Gtk::Adjustment* Gtk::ScaleButton::get_adjustment

(

)

Gets the Gtk::Adjustment associated with the Gtk::ScaleButton's scale.

See Gtk::Range::get_adjustment() for details.

Since gtkmm 2.12:

Returns:

The adjustment associated with the scale.

Gtk::Adjustment* Gtk::ScaleButton::get_adjustment

(

)

const

Gets the Gtk::Adjustment associated with the Gtk::ScaleButton's scale.

See Gtk::Range::get_adjustment() for details.

Since gtkmm 2.12:

Returns:

The adjustment associated with the scale.

Widget* Gtk::ScaleButton::get_minus_button

(

)

Retrieves the minus button of the Gtk::ScaleButton.

Since gtkmm 2.14:

Returns:

The minus button of the Gtk::ScaleButton.

const Widget* Gtk::ScaleButton::get_minus_button

(

)

const

Retrieves the minus button of the Gtk::ScaleButton.

Since gtkmm 2.14:

Returns:

The minus button of the Gtk::ScaleButton.

Orientation Gtk::ScaleButton::get_orientation

(

)

Gets the orientation of the Gtk::ScaleButton's popup window.

Since gtkmm 2.14:

Deprecated: 2.16: Use Gtk::Orientable::get_orientation() instead.

Returns:

The Gtk::ScaleButton's orientation.

const Widget* Gtk::ScaleButton::get_plus_button

(

)

const

Retrieves the plus button of the Gtk::ScaleButton.

Since gtkmm 2.14:

Returns:

The plus button of the Gtk::ScaleButton.

Widget* Gtk::ScaleButton::get_plus_button

(

)

Retrieves the plus button of the Gtk::ScaleButton.

Since gtkmm 2.14:

Returns:

The plus button of the Gtk::ScaleButton.

Gtk::Widget* Gtk::ScaleButton::get_popup

(

)

Retrieves the popup of the Gtk::ScaleButton.

Since gtkmm 2.14:

Returns:

The popup of the Gtk::ScaleButton.

const Gtk::Widget* Gtk::ScaleButton::get_popup

(

)

const

Retrieves the popup of the Gtk::ScaleButton.

Since gtkmm 2.14:

Returns:

The popup of the Gtk::ScaleButton.

double Gtk::ScaleButton::get_value

(

)

const

Gets the current value of the scale button.

Since gtkmm 2.12:

Returns:

Current value of the scale button.

GtkScaleButton* Gtk::ScaleButton::gobj

(

)

[inline]

Provides access to the underlying C GtkObject.

Reimplemented from Gtk::Button.

Reimplemented in Gtk::VolumeButton.

const GtkScaleButton* Gtk::ScaleButton::gobj

(

)

const [inline]

Provides access to the underlying C GtkObject.

Reimplemented from Gtk::Button.

Reimplemented in Gtk::VolumeButton.

virtual void Gtk::ScaleButton::on_value_changed

(

double

value

)

[protected, virtual]

Glib::PropertyProxy<Adjustment*> Gtk::ScaleButton::property_adjustment

(

)

The GtkAdjustment that contains the current value of this scale button object.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:

A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy_ReadOnly<Adjustment*> Gtk::ScaleButton::property_adjustment

(

)

const

The GtkAdjustment that contains the current value of this scale button object.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:

A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy<Glib::StringArrayHandle> Gtk::ScaleButton::property_icons

(

)

List of icon names.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:

A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy_ReadOnly<Glib::StringArrayHandle> Gtk::ScaleButton::property_icons

(

)

const

List of icon names.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:

A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy_ReadOnly<Orientation> Gtk::ScaleButton::property_orientation

(

)

const

The orientation of the orientable.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:

A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy<Orientation> Gtk::ScaleButton::property_orientation

(

)

The orientation of the orientable.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:

A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy<IconSize> Gtk::ScaleButton::property_size

(

)

The icon size.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:

A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy_ReadOnly<IconSize> Gtk::ScaleButton::property_size

(

)

const

The icon size.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:

A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy_ReadOnly<double> Gtk::ScaleButton::property_value

(

)

const

The value of the scale.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:

A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy<double> Gtk::ScaleButton::property_value

(

)

The value of the scale.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:

A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

void Gtk::ScaleButton::set_adjustment

(

Gtk::Adjustment&

adjustment

)

Sets the Gtk::Adjustment to be used as a model for the Gtk::ScaleButton's scale.

See Gtk::Range::set_adjustment() for details.

Since gtkmm 2.12:

Parameters:

adjustment

A Gtk::Adjustment.

void Gtk::ScaleButton::set_icons

(

const Glib::StringArrayHandle &

icons

)

Sets the icons to be used by the scale button.

For details, see the Gtk::ScaleButton:icons property.

Since gtkmm 2.12:

Parameters:

icons

A 0-terminated array of icon names.

void Gtk::ScaleButton::set_orientation

(

Orientation

orientation

)

Sets the orientation of the Gtk::ScaleButton's popup window.

Since gtkmm 2.14:

Deprecated: 2.16: Use Gtk::Orientable::set_orientation() instead.

Parameters:

orientation

The new orientation.

void Gtk::ScaleButton::set_value

(

double

value

)

Sets the current value of the scale; if the value is outside the minimum or maximum range values, it will be clamped to fit inside them.

The scale button emits the Gtk::ScaleButton::value-changed signal if the value changes.

Since gtkmm 2.12:

Parameters:

value

New value of the scale button.

Glib::SignalProxy1< void,double > Gtk::ScaleButton::signal_value_changed

(

)

Prototype:

void on_my_value_changed(double value)

---

Friends And Related Function Documentation

Gtk::ScaleButton* wrap	(	GtkScaleButton *	object,
		bool	take_copy = false
	)		[related]

A Glib::wrap() method for this object.

Parameters:

object	The C instance.
take_copy	False if the result should take ownership of the C instance. True if it should take a new copy or ref.

Returns:

A C++ instance that wraps this C instance.

---

The documentation for this class was generated from the following file:

• gtkmm/scalebutton.h
