log4cpp::NTEventLogAppender Class Reference

NTEventLogAppender is an Appender that sends LoggingEvents to the Windows event log. More...

#include <NTEventLogAppender.hh>

Inheritance diagram for log4cpp::NTEventLogAppender:

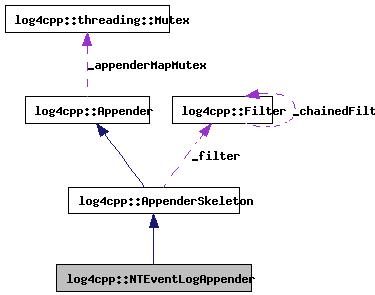

[legend]Collaboration diagram for log4cpp::NTEventLogAppender:

[legend]List of all members.

Public Member Functions
	NTEventLogAppender (const std::string &name, const std::string &sourceName)
	Instantiate an NTEventLogAppender with given name and source.
virtual	~NTEventLogAppender ()
virtual bool	reopen ()
	Calls open() and close().
virtual void	close ()
	Release any resources allocated within the appender such as file handles, network connections, etc.
virtual bool	requiresLayout () const
	The NTEventLogAppender does its own Layout.
virtual void	setLayout (Layout *layout)
	Set the Layout for this appender.
Protected Member Functions
WORD	getCategory (Priority::Value priority)
	Convert log4cpp Priority to an EventLog category.
WORD	getType (Priority::Value priority)
	Convert log4cpp Priority to an EventLog type.
HKEY	regGetKey (TCHAR *subkey, DWORD *disposition)
void	regSetString (HKEY hkey, TCHAR *name, TCHAR *value)
void	regSetDword (HKEY hkey, TCHAR *name, DWORD value)
void	addRegistryInfo (const char *source)
virtual void	open ()
virtual void	_append (const LoggingEvent &event)
	Sends a LoggingEvent to NT Event log.
Protected Attributes
HANDLE	_hEventSource
std::string	_strSourceName

---

Detailed Description

NTEventLogAppender is an Appender that sends LoggingEvents to the Windows event log.

Building log4cpp.dsp/log4cppDLL.dsp creates the resource DLL NTEventLogAppender.dll. Do not forget to place this DLL in a directory that is on the PATH of the Windows system. Otherwise, the category and message will not display correctly in Event Viewer.
NB: This class is only available on Win32 platforms.

---

Constructor & Destructor Documentation

log4cpp::NTEventLogAppender::NTEventLogAppender	(	const std::string &	name,
		const std::string &	sourceName
	)

Instantiate an NTEventLogAppender with given name and source.

Parameters:

	name	The name of the Appender
	sourceName	The source name to log

log4cpp::NTEventLogAppender::~NTEventLogAppender

(

)

[virtual]

---

Member Function Documentation

bool log4cpp::NTEventLogAppender::reopen

(

)

[virtual]

Calls open() and close().

Reimplemented from log4cpp::AppenderSkeleton.

void log4cpp::NTEventLogAppender::close

(

)

[virtual]

Release any resources allocated within the appender such as file handles, network connections, etc.

Implements log4cpp::AppenderSkeleton.

bool log4cpp::NTEventLogAppender::requiresLayout

(

)

const [virtual]

The NTEventLogAppender does its own Layout.

Returns:

false

Implements log4cpp::AppenderSkeleton.

void log4cpp::NTEventLogAppender::setLayout

(

Layout *

layout

)

[virtual]

Set the Layout for this appender.

Parameters:

layout

The layout to use.

Implements log4cpp::AppenderSkeleton.

WORD log4cpp::NTEventLogAppender::getCategory

(

Priority::Value

priority

)

[protected]

Convert log4cpp Priority to an EventLog category.

Each category is backed by a message resource so that proper category names will be displayed in the NT Event Viewer.

WORD log4cpp::NTEventLogAppender::getType

(

Priority::Value

priority

)

[protected]

Convert log4cpp Priority to an EventLog type.

The log4cpp package supports 8 defined priorites, but the NT EventLog only knows 3 event types of interest to us: ERROR, WARNING, and INFO.

HKEY log4cpp::NTEventLogAppender::regGetKey	(	TCHAR *	subkey,
		DWORD *	disposition
	)			[protected]

void log4cpp::NTEventLogAppender::regSetString	(	HKEY	hkey,
		TCHAR *	name,
		TCHAR *	value
	)			[protected]

void log4cpp::NTEventLogAppender::regSetDword	(	HKEY	hkey,
		TCHAR *	name,
		DWORD	value
	)			[protected]

void log4cpp::NTEventLogAppender::addRegistryInfo

(

const char *

source

)

[protected]

void log4cpp::NTEventLogAppender::open

(

)

[protected, virtual]

void log4cpp::NTEventLogAppender::_append

(

const LoggingEvent &

event

)

[protected, virtual]

Sends a LoggingEvent to NT Event log.

Parameters:

event

the LoggingEvent to log.

Implements log4cpp::AppenderSkeleton.

---

Member Data Documentation

HANDLE log4cpp::NTEventLogAppender::_hEventSource [protected]

std::string log4cpp::NTEventLogAppender::_strSourceName [protected]

---

The documentation for this class was generated from the following files:

• NTEventLogAppender.hh
• NTEventLogAppender.cpp

---
