#include <gtkdatabox_typedefs.h>
#include <gtkdatabox_graph.h>
#include <gtkdatabox_ruler.h>
#include <gtk/gtkwidget.h>
#include <gtk/gtkadjustment.h>

Include dependency graph for gtkdatabox.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	GtkDataboxValueRectangle
struct	_GtkDatabox
struct	_GtkDataboxClass
Defines
#define	GTK_TYPE_DATABOX (gtk_databox_get_type ())
#define	GTK_DATABOX(obj)
#define	GTK_DATABOX_CLASS(klass)
#define	GTK_IS_DATABOX(obj)
#define	GTK_IS_DATABOX_CLASS(klass)
#define	GTK_DATABOX_GET_CLASS(obj)
Typedefs
typedef struct _GtkDataboxClass	GtkDataboxClass
typedef struct _GtkDataboxPrivate	GtkDataboxPrivate
Functions
GType	gtk_databox_get_type (void)
GtkWidget *	gtk_databox_new (void)
gint	gtk_databox_graph_add (GtkDatabox box, GtkDataboxGraph graph)
gint	gtk_databox_graph_add_front (GtkDatabox box, GtkDataboxGraph graph)
gint	gtk_databox_graph_remove (GtkDatabox box, GtkDataboxGraph graph)
gint	gtk_databox_graph_remove_all (GtkDatabox *box)
gint	gtk_databox_auto_rescale (GtkDatabox *box, gfloat border)
gint	gtk_databox_calculate_extrema (GtkDatabox box, gfloat min_x, gfloat max_x, gfloat min_y, gfloat *max_y)
void	gtk_databox_set_total_limits (GtkDatabox *box, gfloat left, gfloat right, gfloat top, gfloat bottom)
void	gtk_databox_set_visible_limits (GtkDatabox *box, gfloat left, gfloat right, gfloat top, gfloat bottom)
void	gtk_databox_get_total_limits (GtkDatabox box, gfloat left, gfloat right, gfloat top, gfloat *bottom)
void	gtk_databox_get_visible_limits (GtkDatabox box, gfloat left, gfloat right, gfloat top, gfloat *bottom)
void	gtk_databox_set_adjustment_x (GtkDatabox box, GtkAdjustment adj)
void	gtk_databox_set_adjustment_y (GtkDatabox box, GtkAdjustment adj)
GtkAdjustment *	gtk_databox_get_adjustment_x (GtkDatabox *box)
GtkAdjustment *	gtk_databox_get_adjustment_y (GtkDatabox *box)
void	gtk_databox_set_ruler_x (GtkDatabox box, GtkDataboxRuler ruler)
void	gtk_databox_set_ruler_y (GtkDatabox box, GtkDataboxRuler ruler)
GtkDataboxRuler *	gtk_databox_get_ruler_x (GtkDatabox *box)
GtkDataboxRuler *	gtk_databox_get_ruler_y (GtkDatabox *box)
void	gtk_databox_set_scale_type_x (GtkDatabox *box, GtkDataboxScaleType scale_type)
void	gtk_databox_set_scale_type_y (GtkDatabox *box, GtkDataboxScaleType scale_type)
GtkDataboxScaleType	gtk_databox_get_scale_type_x (GtkDatabox *box)
GtkDataboxScaleType	gtk_databox_get_scale_type_y (GtkDatabox *box)
void	gtk_databox_set_enable_selection (GtkDatabox *box, gboolean enable)
void	gtk_databox_set_enable_zoom (GtkDatabox *box, gboolean enable)
void	gtk_databox_set_box_shadow (GtkDatabox *box, GtkShadowType which_shadow)
gboolean	gtk_databox_get_enable_selection (GtkDatabox *box)
gboolean	gtk_databox_get_enable_zoom (GtkDatabox *box)
GtkShadowType	gtk_databox__get_box_shadow (GtkDatabox *box)
void	gtk_databox_zoom_to_selection (GtkDatabox *box)
void	gtk_databox_zoom_out (GtkDatabox *box)
void	gtk_databox_zoom_home (GtkDatabox *box)
gint16	gtk_databox_value_to_pixel_x (GtkDatabox *box, gfloat value)
gint16	gtk_databox_value_to_pixel_y (GtkDatabox *box, gfloat value)
gfloat	gtk_databox_pixel_to_value_x (GtkDatabox *box, gint16 pixel)
gfloat	gtk_databox_pixel_to_value_y (GtkDatabox *box, gint16 pixel)
void	gtk_databox_values_to_pixels (GtkDatabox box, guint len, const gfloat values_x, const gfloat values_y, GdkPoint pixels)
void	gtk_databox_create_box_with_scrollbars_and_rulers (GtkWidget p_box, GtkWidget p_table, gboolean scrollbar_x, gboolean scrollbar_y, gboolean ruler_x, gboolean ruler_y)
void	gtk_databox_create_box_with_scrollbars_and_rulers_positioned (GtkWidget p_box, GtkWidget p_table, gboolean scrollbar_x, gboolean scrollbar_y, gboolean ruler_x, gboolean ruler_y, gboolean ruler_x_top, gboolean ruler_y_left)
GdkPixmap *	gtk_databox_get_backing_pixmap (GtkDatabox *box)

Define Documentation

#define GTK_DATABOX ( obj )

Value:

(G_TYPE_CHECK_INSTANCE_CAST ((obj), \
                                           GTK_TYPE_DATABOX, \
                                           GtkDatabox))

#define GTK_DATABOX_CLASS ( klass )

Value:

(G_TYPE_CHECK_CLASS_CAST ((klass), \
                                           GTK_TYPE_DATABOX, \
                                           GtkDataboxClass))

#define GTK_DATABOX_GET_CLASS ( obj )

Value:

(G_TYPE_INSTANCE_GET_CLASS ((obj), \
                                           GTK_TYPE_DATABOX, \
                                           GtkDataboxClass))

#define GTK_IS_DATABOX ( obj )

Value:

(G_TYPE_CHECK_INSTANCE_TYPE ((obj), \
                                           GTK_TYPE_DATABOX))

#define GTK_IS_DATABOX_CLASS ( klass )

Value:

(G_TYPE_CHECK_CLASS_TYPE ((klass), \
                                           GTK_TYPE_DATABOX))

#define GTK_TYPE_DATABOX (gtk_databox_get_type ())

SECTION:gtkdatabox : A GTK+ widget to display large amounts of numerical data quickly and easily. gtkdatabox.h : GtkDataboxGraph, GtkDataboxPoints, GtkDataboxLines, GtkDataboxMarkers, GtkDataboxGrid

GtkDatabox is a widget for the GTK+ library designed to display large amounts of numerical data quickly and easily. It allows for one or more data sets of thousands of data points (X and Y coordinates) to be displayed and updated in split seconds.

It offers the ability to zoom into and out of the data, and to navigate through your data by scrolling.

In addition to rulers and a simple coordinate cross, it allows you to add one (or even more) configurable grids like on an oscilloscope.

Data may be presented as dots, lines connecting the data, or vertical bars. The widget allows you to easily transform pixel coordinates into data coordinates, thus allowing you to easily create powerful applications for data analysis.

Typedef Documentation

typedef struct _GtkDataboxClass GtkDataboxClass

typedef struct _GtkDataboxPrivate GtkDataboxPrivate

GtkDataboxPrivate

A private data structure used by the GtkDatabox. It shields all internal things from developers who are just using the widget.

Function Documentation

GtkShadowType gtk_databox__get_box_shadow ( GtkDatabox * box )

gint gtk_databox_auto_rescale	(	GtkDatabox *	box,
		gfloat	border
	)

gtk_databox_auto_rescale: : A GtkDatabox widget : Relative border width (e.g. 0.1 means that the border on each side is 10% of the data area).

This function is similar to gtk_databox_set_total_limits(). It sets the total limits to match the data extrema (see gtk_databox_calculate_extrema()). If you do not like data pixels exactly at the widget's border, you can add modify the limits using the border parameter: The limits are extended by *(max-min) if max!=min. If max==min, they are extended by *max (otherwise the data could not be scaled to the pixel realm).

After calling this function, x values grow from left to right, y values grow from bottom to top.

Return value: 0 on success, -1 if is no GtkDatabox widget, -2 if no datasets are available

Here is the call graph for this function:

gint gtk_databox_calculate_extrema	(	GtkDatabox *	box,
		gfloat *	min_x,
		gfloat *	max_x,
		gfloat *	min_y,
		gfloat *	max_y
	)

gtk_databox_calculate_extrema: : A GtkDatabox widget : Will be filled with the lowest x value of all datasets : Will be filled with the highest x value of all datasets : Will be filled with the lowest y value of all datasets : Will be filled with the highest y value of all datasets

Determines the minimum and maximum x and y values of all GtkDataboxGraph objects which have been added to the GtkDatabox widget via gtk_databox_graph_add().

Return value: 0 on success, -1 if is no GtkDatabox widget, -2 if no datasets are available

Here is the call graph for this function:

Here is the caller graph for this function:

void gtk_databox_create_box_with_scrollbars_and_rulers	(	GtkWidget **	p_box,
		GtkWidget **	p_table,
		gboolean	scrollbar_x,
		gboolean	scrollbar_y,
		gboolean	ruler_x,
		gboolean	ruler_y
	)

gtk_databox_create_box_with_scrollbars_and_rulers: : Will contain a pointer to a GtkDatabox widget : Will contain a pointer to a #GtkTable widget : Whether to attach a horizontal scrollbar : Whether to attach a vertical scrollbar : Whether to attach a horizontal ruler : Whether to attach a vertical ruler

This is a convenience function which creates a GtkDatabox widget in a GtkTable widget optionally accompanied by scrollbars and rulers. You only have to fill in the data (gtk_databox_graph_add()) and adjust the limits (gtk_databox_set_total_limits() or gtk_databox_auto_rescale()).

This function produces the default databox with rulers at the top left and scroll bars at the bottom right.

: gtk_databox_new(), gtk_databox_set_adjustment_x(), gtk_databox_set_adjustment_y(), gtk_databox_set_ruler_x(), gtk_databox_set_ruler_y()

Here is the call graph for this function:

void gtk_databox_create_box_with_scrollbars_and_rulers_positioned	(	GtkWidget **	p_box,
		GtkWidget **	p_table,
		gboolean	scrollbar_x,
		gboolean	scrollbar_y,
		gboolean	ruler_x,
		gboolean	ruler_y,
		gboolean	ruler_x_top,
		gboolean	ruler_y_left
	)

gtk_databox_create_box_with_scrollbars_and_rulers_positioned: : Will contain a pointer to a GtkDatabox widget : Will contain a pointer to a #GtkTable widget : Whether to attach a horizontal scrollbar : Whether to attach a vertical scrollbar : Whether to attach a horizontal ruler : Whether to attach a vertical ruler : Whether to put the ruler_x up the top : Whether to put the ruler_y on the left

This is a convenience function which creates a GtkDatabox widget in a GtkTable widget optionally accompanied by scrollbars and rulers. You only have to fill in the data (gtk_databox_graph_add()) and adjust the limits (gtk_databox_set_total_limits() or gtk_databox_auto_rescale()).

This function produces the default databox with rulers at the top left and scroll bars at the bottom right.

: gtk_databox_new(), gtk_databox_set_adjustment_x(), gtk_databox_set_adjustment_y(), gtk_databox_set_ruler_x(), gtk_databox_set_ruler_y(), gtk_databox_create_box_with_scrollbars_and_rulers()

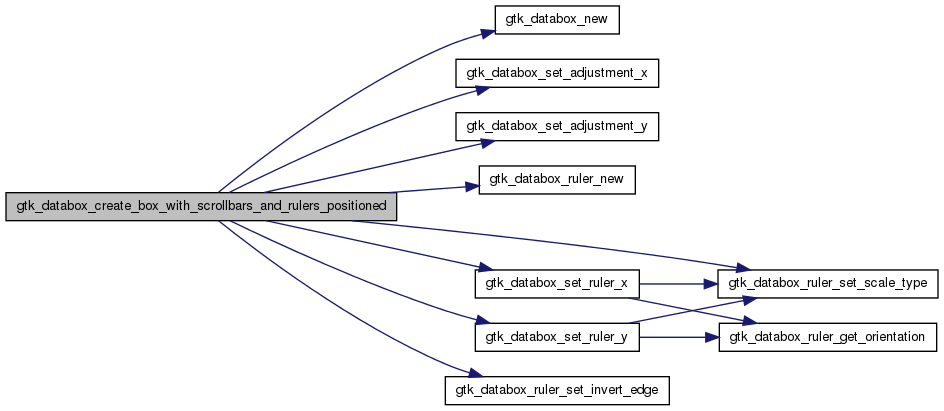

Here is the call graph for this function:

Here is the caller graph for this function:

GtkAdjustment* gtk_databox_get_adjustment_x ( GtkDatabox * box )

gtk_databox_get_adjustment_x : A GtkDatabox widget.

Getter function for the GtkDatabox:adjustment-x property.

Return value: The GtkDatabox:adjustment-x property value.

GtkAdjustment* gtk_databox_get_adjustment_y ( GtkDatabox * box )

gtk_databox_get_adjustment_y : A GtkDatabox widget.

Getter function for the GtkDatabox:adjustment-y property.

Return value: The GtkDatabox:adjustment-y property value.

GdkPixmap* gtk_databox_get_backing_pixmap ( GtkDatabox * box )

gtk_databox_get_backing_pixmap: : A GtkDatabox widget

This function returns the pixmap which is used by and its GtkDataboxGraph objects for drawing operations before copying the result to the screen.

The function is typically called by the GtkDataboxGraph objects.

Return value: Backing pixmap

gboolean gtk_databox_get_enable_selection ( GtkDatabox * box )

gtk_databox_get_enable_selection : A GtkDatabox widget.

Getter function for the GtkDatabox:enable-selection property.

Return value: The GtkDatabox:enable-selection property value.

gboolean gtk_databox_get_enable_zoom ( GtkDatabox * box )

gtk_databox_get_enable_zoom : A GtkDatabox widget.

Getter function for the GtkDatabox:enable-zoom property.

Return value: The GtkDatabox:enable-zoom property value.

GtkDataboxRuler* gtk_databox_get_ruler_x ( GtkDatabox * box )

gtk_databox_get_ruler_x : A GtkDatabox widget.

Getter function for the GtkDatabox:ruler-x property.

Return value: The GtkDatabox:ruler-x property value.

GtkDataboxRuler* gtk_databox_get_ruler_y ( GtkDatabox * box )

gtk_databox_get_ruler_y : A GtkDatabox widget.

Getter function for the GtkDatabox:ruler-y property.

Return value: The GtkDatabox:ruler-y property value.

GtkDataboxScaleType gtk_databox_get_scale_type_x ( GtkDatabox * box )

gtk_databox_get_scale_type_x : A GtkDatabox widget.

Getter function for the GtkDatabox:scale-type-x property.

Return value: The GtkDatabox:scale-type-x property value.

GtkDataboxScaleType gtk_databox_get_scale_type_y ( GtkDatabox * box )

gtk_databox_get_scale_type_y : A GtkDatabox widget.

Getter function for the GtkDatabox:scale-type-y property.

Return value: The GtkDatabox:scale-type-y property value.

void gtk_databox_get_total_limits	(	GtkDatabox *	box,
		gfloat *	left,
		gfloat *	right,
		gfloat *	top,
		gfloat *	bottom
	)

gtk_databox_get_total_limits: : A GtkDatabox widget : Space for total left value or #NULL : Space for total right value or #NULL : Space for total top value or #NULL : Space for total bottom value or #NULL

Gives the total limits (as set by gtk_databox_auto_rescale() or gtk_databox_set_total_limits()).

GType gtk_databox_get_type ( void )

void gtk_databox_get_visible_limits	(	GtkDatabox *	box,
		gfloat *	left,
		gfloat *	right,
		gfloat *	top,
		gfloat *	bottom
	)

gtk_databox_get_visible_limits: : A GtkDatabox widget : Space for visible left value or #NULL : Space for visible right value or #NULL : Space for visible top value or #NULL : Space for visible bottom value or #NULL

Gives the current visible limits. These differ from those given by gtk_databox_get_total_limits() if you zoomed into the data for instance by gtk_databox_zoom_to_selection() or gtk_databox_set_visible_limits() (these values can be changed by scrolling, of course).

gint gtk_databox_graph_add	(	GtkDatabox *	box,
		GtkDataboxGraph *	graph
	)

gtk_databox_graph_add: : A GtkDatabox widget : A graph, e.g. a GtkDataboxPoints or a GtkDataboxGrid object

Adds the to the . The next time the is re-drawn, the graph will be shown.

It might be becessary to modify the total_limits in order for the graph to be displayed properly (see gtk_databox_set_total_limits()).

Return value: 0 on success, -1 otherwise

gint gtk_databox_graph_add_front	(	GtkDatabox *	box,
		GtkDataboxGraph *	graph
	)

gtk_databox_graph_add_front: : A GtkDatabox widget : A graph, e.g. a GtkDataboxPoints or a GtkDataboxGrid object

Adds the to the and will be plotted on top. The next time the is re-drawn, the graph will be shown.

It might be becessary to modify the total_limits in order for the graph to be displayed properly (see gtk_databox_set_total_limits()).

Return value: 0 on success, -1 otherwise

gint gtk_databox_graph_remove	(	GtkDatabox *	box,
		GtkDataboxGraph *	graph
	)

gtk_databox_graph_remove: : A GtkDatabox widget : A graph, e.g. a GtkDataboxPoints or a GtkDataboxGrid object

Removes the from the once. The next time the is re-drawn, the graph will not be shown (unless it was added more than once).

Return value: 0 on success, -1 otherwise

gint gtk_databox_graph_remove_all ( GtkDatabox * box )

gtk_databox_graph_remove_all: : A GtkDatabox widget

Removes all graphs from the . The next time the is re-drawn, no graphs will be shown.

Return value: 0 on success, -1 otherwise

GtkWidget* gtk_databox_new ( void )

gtk_databox_new

Creates a new GtkDatabox widget.

Return value: The new GtkDatabox widget.

Here is the caller graph for this function:

gfloat gtk_databox_pixel_to_value_x	(	GtkDatabox *	box,
		gint16	pixel
	)

gtk_databox_pixel_to_value_x: : A GtkDatabox widget : A horizontal pixel coordinate

Calculates the x value which is represented by the horizontal coordinate. Pixel coordinates are relative to the top-left corner of the which is equivalent to (0,0).

Return value: x value

gfloat gtk_databox_pixel_to_value_y	(	GtkDatabox *	box,
		gint16	pixel
	)

gtk_databox_pixel_to_value_y: : A GtkDatabox widget : A vertical pixel coordinate

Calculates the y value which is represented by the vertical coordinate. Pixel coordinates are relative to the top-left corner of the which is equivalent to (0,0).

Return value: y value

void gtk_databox_set_adjustment_x	(	GtkDatabox *	box,
		GtkAdjustment *	adj
	)

gtk_databox_set_adjustment_x : A GtkDatabox widget : A #GtkAdjustment object

Setter function for the GtkDatabox:adjustment-x property. Normally, it should not be required to use this function, see property documentation.

Here is the caller graph for this function:

void gtk_databox_set_adjustment_y	(	GtkDatabox *	box,
		GtkAdjustment *	adj
	)

gtk_databox_set_adjustment_y : A GtkDatabox widget : A #GtkAdjustment object

Setter function for the GtkDatabox:adjustment-y property. Normally, it should not be required to use this function, see property documentation.

Here is the caller graph for this function:

void gtk_databox_set_box_shadow	(	GtkDatabox *	box,
		GtkShadowType	which_shadow
	)

gtk_databox_set_box_shadow: : a GtkDatabox widget. : How to render the box shadow on the GtkDatabox edges.

Sets the shadow type when using gtk_paint_box. This will draw the desired edge shadow.

void gtk_databox_set_enable_selection	(	GtkDatabox *	box,
		gboolean	enable
	)

gtk_databox_set_enable_selection : A GtkDatabox widget : Whether selection via mouse is enabled or not.

Setter function for the GtkDatabox:enable-selection property.

void gtk_databox_set_enable_zoom	(	GtkDatabox *	box,
		gboolean	enable
	)

gtk_databox_set_enable_zoom : A GtkDatabox widget : Whether zoom via mouse is enabled or not.

Setter function for the GtkDatabox:enable-zoom property.

void gtk_databox_set_ruler_x	(	GtkDatabox *	box,
		GtkDataboxRuler *	ruler
	)

gtk_databox_set_ruler_x : A GtkDatabox widget : A GtkDataboxRuler object

Setter function for the GtkDatabox:ruler-x property.

Here is the call graph for this function:

Here is the caller graph for this function:

void gtk_databox_set_ruler_y	(	GtkDatabox *	box,
		GtkDataboxRuler *	ruler
	)

gtk_databox_set_ruler_y : A GtkDatabox widget : An GtkDataboxRuler object

Setter function for the GtkDatabox:ruler-y property.

Here is the call graph for this function:

Here is the caller graph for this function:

void gtk_databox_set_scale_type_x	(	GtkDatabox *	box,
		GtkDataboxScaleType	scale_type
	)

gtk_databox_set_scale_type_x : A GtkDatabox widget : An GtkDataboxScaleType (linear or logarithmic)

Setter function for the GtkDatabox:scale-type-x property.

Here is the call graph for this function:

void gtk_databox_set_scale_type_y	(	GtkDatabox *	box,
		GtkDataboxScaleType	scale_type
	)

gtk_databox_set_scale_type_y : A GtkDatabox widget : An GtkDataboxScaleType (linear or logarithmic)

Setter function for the GtkDatabox:scale-type-y property.

Here is the call graph for this function:

void gtk_databox_set_total_limits	(	GtkDatabox *	box,
		gfloat	left,
		gfloat	right,
		gfloat	top,
		gfloat	bottom
	)

gtk_databox_set_total_limits: : A GtkDatabox widget : Left total limit : Right total limit : Top total limit : Bottom total limit

This function is used to set the limits of the total display area of . This function can be used to invert the orientation of the displayed graphs, e.g. =-1000 and =0.

Side effect: The also internally calls gtk_databox_set_visible_limits() with the same values.

Here is the call graph for this function:

Here is the caller graph for this function:

void gtk_databox_set_visible_limits	(	GtkDatabox *	box,
		gfloat	left,
		gfloat	right,
		gfloat	top,
		gfloat	bottom
	)

gtk_databox_set_visible_limits: : A GtkDatabox widget : Left visible limit : Right visible limit : Top visible limit : Bottom visible limit

This function is used to set the limits of the visible display area of . The visible display area can be section of the total area, i.e. the zooms in, showing only a part of the complete picture.

The orientation of the values have to be the same as in gtk_databox_set_total_limits() and the visible limits have to be within the total limits. The values will not be used otherwise.

Side effect: The emits #GtkDatabox::zoomed.

Here is the caller graph for this function:

gint16 gtk_databox_value_to_pixel_x	(	GtkDatabox *	box,
		gfloat	value
	)

gtk_databox_value_to_pixel_x: : A GtkDatabox widget : An x value

Calculates the horizontal pixel coordinate which represents the x . Pixel coordinates are relative to the top-left corner of the which is equivalent to (0,0).

Return value: Pixel coordinate

gint16 gtk_databox_value_to_pixel_y	(	GtkDatabox *	box,
		gfloat	value
	)

gtk_databox_value_to_pixel_y: : A GtkDatabox widget : A y value

Calculates the vertical pixel coordinate which represents the y . Pixel coordinates are relative to the top-left corner of the which is equivalent to (0,0).

Return value: Pixel coordinate

void gtk_databox_values_to_pixels	(	GtkDatabox *	box,
		guint	len,
		const gfloat *	values_x,
		const gfloat *	values_y,
		GdkPoint *	pixels
	)

gtk_databox_values_to_pixels: : A GtkDatabox widget : Number of values/pixels : Array of X values (length >= len) : Array of Y values (length >= len) : Array of pixel coordinates (length >= len)

Calculates the pixel equivalents of the given X/Y values and stores them in the array.

void gtk_databox_zoom_home ( GtkDatabox * box )

gtk_databox_zoom_home: : A GtkDatabox widget

This is equivalent to shift right-clicking into the .

This function works, if the attribute #enable-zoom is set to #TRUE. It is equivalent to calling the gtk_databox_set_visible_limits() with the total limits.

Here is the call graph for this function:

void gtk_databox_zoom_out ( GtkDatabox * box )

gtk_databox_zoom_out: : A GtkDatabox widget

This is equivalent to right-clicking into the .

This function works, if the attribute #enable-zoom is set to #TRUE. Calling the function then zooms out by a factor of 2 in both dimensions (the maximum is defined by the total limits, see gtk_databox_set_total_limits()).

Side effect: The emits #GtkDatabox::zoomed.

void gtk_databox_zoom_to_selection ( GtkDatabox * box )

gtk_databox_zoom_to_selection: : A GtkDatabox widget

This is equivalent to left-clicking into the selected area.

This function works, if the attribute #enable-zoom is set to #TRUE. Calling the function then zooms to the area selected with the mouse.

Side effect: The emits #GtkDatabox::zoomed.

Data Structures

Defines

Typedefs

Functions

Define Documentation

Typedef Documentation

Function Documentation
