GtkDatabox
A set of GTK+ widgets to display large amounts of numerical data quickly and easily.
|
|
GtkDatabox
A set of GTK+ widgets to display large amounts of numerical data quickly and easily.
|
| #define __GTK_DATABOX_RULER_C__ |
| #define FORMAT_LENGTH 20 /* the length of the label format string */ |
| #define LINEAR_FORMAT_MARKUP "%%-+%dg" |
| #define LOG_FORMAT_MARKUP "%%-%dg" |
| #define ROUND | ( | x | ) | ((int) ((x) + 0.5)) |
| #define RULER_SIZE 14 |
| anonymous enum |
| GtkShadowType gtk_databox_ruler_get_box_shadow | ( | GtkDataboxRuler * | ruler | ) |
gtk_databox_ruler_get_box_shadow: : a GtkDataboxRuler
Gets the type of shadow being rendered to the (GTK_SHADOW_NONE, GTK_SHADOW_IN, GTK_SHADOW_OUT, GTK_SHADOW_ETCHED_IN, GTK_SHADOW_ETCHED_OUT).
Return value: The currently used shadow type of the , -1 on failure.
| gboolean gtk_databox_ruler_get_draw_position | ( | GtkDataboxRuler * | ruler | ) |
gtk_databox_ruler_get_draw_position: : a GtkDataboxRuler
Gets the draw position arrows option from the (horizontal or vertical).
Return value: Position drawing option of the .
| gboolean gtk_databox_ruler_get_draw_subticks | ( | GtkDataboxRuler * | ruler | ) |
gtk_databox_ruler_get_draw_subticks: : a GtkDataboxRuler
Gets the draw subticks option from the (horizontal or vertical).
Return value: Subtick drawing option of the .
| gboolean gtk_databox_ruler_get_draw_ticks | ( | GtkDataboxRuler * | ruler | ) |
gtk_databox_ruler_get_draw_ticks: : a GtkDataboxRuler
Gets the draw ticks option from the (horizontal or vertical).
Return value: Tick drawing option of the .
| gboolean gtk_databox_ruler_get_invert_edge | ( | GtkDataboxRuler * | ruler | ) |
gtk_databox_ruler_get_invert_edge: : a GtkDataboxRuler
Gets the invert edge option from the (horizontal or vertical).
Return value: Edge inversion option of the .
| gchar* gtk_databox_ruler_get_linear_label_format | ( | GtkDataboxRuler * | ruler | ) |
gtk_databox_ruler_get_linear_label_format: : a GtkDataboxRuler
Gets the linear label meta format of the (horizontal or vertical).
Return value: The string meta format the NULL on failure.
| gchar* gtk_databox_ruler_get_log_label_format | ( | GtkDataboxRuler * | ruler | ) |
gtk_databox_ruler_get_log_label_format: : a GtkDataboxRuler
Gets the log label meta format of the (horizontal or vertical).
Return value: The string meta format the , NULL on failure.
| guint gtk_databox_ruler_get_manual_tick_cnt | ( | GtkDataboxRuler * | ruler | ) |
gtk_databox_grid_get_manual_tick_cnt: : a GtkDataboxRuler
Gets the number manual tick values for the .
Return value: The number of manual tick values for the .
| gchar** gtk_databox_ruler_get_manual_tick_labels | ( | GtkDataboxRuler * | ruler | ) |
gtk_databox_grid_get_manual_tick_labels: : a GtkDataboxRuler
Gets the pointer to the manual tick labels for the .
Return value: Pointer to the manual tick labels for the .
| gfloat* gtk_databox_ruler_get_manual_ticks | ( | GtkDataboxRuler * | ruler | ) |
gtk_databox_grid_get_manual_ticks: : a GtkDataboxRuler
Gets the pointer to the manual tick values for the .
Return value: Pointer to the manual tick values for the .
| guint gtk_databox_ruler_get_max_length | ( | GtkDataboxRuler * | ruler | ) |
gtk_databox_ruler_get_max_length: : A GtkDataboxRuler widget
This function returns the maximum number of digits to be used for each tick label of the .
Return value: The maximum length of the tick labels.
| GtkOrientation gtk_databox_ruler_get_orientation | ( | GtkDataboxRuler * | ruler | ) |
gtk_databox_ruler_get_orientation: : a GtkDataboxRuler
Gets the orientation of the (horizontal or vertical).
Return value: Orientation of the .
| void gtk_databox_ruler_get_range | ( | GtkDataboxRuler * | ruler, |
| gdouble * | lower, | ||
| gdouble * | upper, | ||
| gdouble * | position | ||
| ) |
gtk_databox_ruler_get_range: : a GtkDataboxRuler : location to store lower limit of the ruler, or NULL : location to store upper limit of the ruler, or NULL : location to store the current position of the mark on the ruler, or NULL
Retrieves values indicating the range and current position of a GtkDataboxRuler. See gtk_databox_ruler_set_range().
gtk_databox_ruler_get_scale_type: : A GtkDataboxRuler widget
This function returns the scale type of the (linear or logarithmic).
Return value: The scale type (linear or logarithmic)
| PangoAlignment gtk_databox_ruler_get_text_alignment | ( | GtkDataboxRuler * | ruler | ) |
gtk_databox_ruler_get_text_alignment: : a GtkDataboxRuler
Gets the text alignment of the (vertical). Vertical rulers with vertical text do not use this flag
Return value: Text alignment of the .
| gint gtk_databox_ruler_get_text_hoffset | ( | GtkDataboxRuler * | ruler | ) |
gtk_databox_ruler_get_text_hoffset: : a GtkDataboxRuler
Gets the text x (horizontal) offset of the .
Return value: Text horizontal (x) offset of the .
| GtkOrientation gtk_databox_ruler_get_text_orientation | ( | GtkDataboxRuler * | ruler | ) |
gtk_databox_ruler_get_text_orientation: : a GtkDataboxRuler
Gets the text orientation of the (horizontal or vertical). Horizontal rulers always have horizontal text
Return value: Text orientation of the .
| GtkWidget* gtk_databox_ruler_new | ( | GtkOrientation | orientation | ) |
gtk_databox_ruler_new: : orientation of the ruler
Creates a new GtkDataboxRuler widget with the given (horizontal or vertical).
Return value: A new GtkDataboxRuler
| void gtk_databox_ruler_set_box_shadow | ( | GtkDataboxRuler * | ruler, |
| GtkShadowType | which_shadow | ||
| ) |
gtk_databox_ruler_set_box_shadow: : a GtkDataboxRuler : How to render the box shadow on the ruler edges.
Sets the shadow type when using gtk_paint_box. This will draw the desired edge shadow.
| void gtk_databox_ruler_set_draw_position | ( | GtkDataboxRuler * | ruler, |
| gboolean | draw | ||
| ) |
gtk_databox_ruler_set_draw_position: : a GtkDataboxRuler : whether to draw the position arrows on the ruler at all
Sets the option for drawing the position arrows. If false, don't draw any arrows, If true draw arrows.
| void gtk_databox_ruler_set_draw_subticks | ( | GtkDataboxRuler * | ruler, |
| gboolean | draw | ||
| ) |
gtk_databox_ruler_set_draw_subticks: : a GtkDataboxRuler : whether to draw the subticks on the ruler
Sets the option for drawing the subticks
| void gtk_databox_ruler_set_draw_ticks | ( | GtkDataboxRuler * | ruler, |
| gboolean | draw | ||
| ) |
gtk_databox_ruler_set_draw_ticks: : a GtkDataboxRuler : whether to draw the ticks on the ruler at all
Sets the option for drawing the ticks. If false, don't draw any ticks, If true draw major ticks and subticks if the draw_subticks boolean is set.
| void gtk_databox_ruler_set_invert_edge | ( | GtkDataboxRuler * | ruler, |
| gboolean | invert | ||
| ) |
gtk_databox_ruler_set_invert_edge: : a GtkDataboxRuler : whether to draw the ruler detail with the edge inverted
Sets the option for drawing the ruler detail on the opposite edge
| void gtk_databox_ruler_set_linear_label_format | ( | GtkDataboxRuler * | ruler, |
| gchar * | format | ||
| ) |
gtk_databox_ruler_set_linear_label_format: : a GtkDataboxRuler : How to format the labels for linear rulers
Sets the meta format string for the labels of linear rulers, for example "%%+-%dg" will become "%+-#g" where # is the int variable
| void gtk_databox_ruler_set_log_label_format | ( | GtkDataboxRuler * | ruler, |
| gchar * | format | ||
| ) |
gtk_databox_ruler_set_log_label_format: : a GtkDataboxRuler : How to format the labels for log scaled rulers
Sets the meta format string for the labels of log scaled rulers, for example "%%-%dg" will become "%-#g" where # is the int variable
| void gtk_databox_ruler_set_manual_tick_cnt | ( | GtkDataboxRuler * | ruler, |
| guint | manual_tick_cnt | ||
| ) |
gtk_databox_grid_set_manual_tick_cnt: : a GtkDataboxRuler : sets the number of manual ticks for the
Sets the number of manual ticks for the (horizontal or vertical).
| void gtk_databox_ruler_set_manual_tick_labels | ( | GtkDataboxRuler * | ruler, |
| gchar ** | manual_tick_labels | ||
| ) |
gtk_databox_grid_set_manual_tick_labels: : a GtkDataboxRuler : sets the pointer to the labels for the ticks on the
Note: This function should be preceeded by calls to gtk_databox_ruler_set_manual_ticks() and gtk_databox_ruler_set_manual_tick_cnt(). The number of tick labels should match gtk_databox_ruler_get_manual_tick_cnt().
Sets the tick labels of the (horizontal or vertical).
| void gtk_databox_ruler_set_manual_ticks | ( | GtkDataboxRuler * | ruler, |
| gfloat * | manual_ticks | ||
| ) |
gtk_databox_grid_set_manual_ticks: : a GtkDataboxRuler : sets the pointer to the hline values for the
Sets the ticks for the (horizontal or vertical).
| void gtk_databox_ruler_set_max_length | ( | GtkDataboxRuler * | ruler, |
| guint | max_length | ||
| ) |
gtk_databox_ruler_set_max_length: : A GtkDataboxRuler widget : Maximum length (digits) of tick labels
This function sets the maximum number of digits to be used for each tick label of the .
The cannot be smaller than 2 and not bigger than GTK_DATABOX_RULER_MAX_MAX_LENGTH.
| void gtk_databox_ruler_set_orientation | ( | GtkDataboxRuler * | ruler, |
| GtkOrientation | orientation | ||
| ) |
gtk_databox_ruler_set_orientation: : a GtkDataboxRuler : new orientation of the ruler
Sets the orientation of the (horizontal or vertical).
| void gtk_databox_ruler_set_range | ( | GtkDataboxRuler * | ruler, |
| gdouble | lower, | ||
| gdouble | upper, | ||
| gdouble | position | ||
| ) |
gtk_databox_ruler_set_range: : a GtkDataboxRuler : lower limit of the ruler : upper limit of the ruler : current position of the mark on the ruler
Sets values indicating the range and current position of a GtkDataboxRuler.

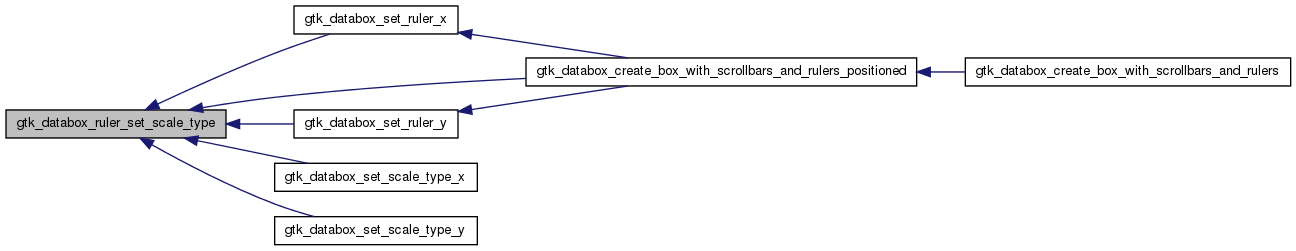

| void gtk_databox_ruler_set_scale_type | ( | GtkDataboxRuler * | ruler, |
| GtkDataboxScaleType | scale_type | ||
| ) |
gtk_databox_ruler_set_scale_type: : A GtkDataboxRuler widget : The new scale type for (linear or logarithmic)
This function sets the scale type of the .
| void gtk_databox_ruler_set_text_alignment | ( | GtkDataboxRuler * | ruler, |
| PangoAlignment | alignment | ||
| ) |
gtk_databox_ruler_set_text_alignment: : a GtkDataboxRuler : new alignment of the tick label in the vertical ruler when horizontal text is set
Sets the text alignment of the (vertical with horizontal text).
| void gtk_databox_ruler_set_text_hoffset | ( | GtkDataboxRuler * | ruler, |
| gint | offset | ||
| ) |
gtk_databox_ruler_set_text_hoffset: : a GtkDataboxRuler : new x offset of the tick label in the ruler
Sets the text x (horizontal) offset of the .
| void gtk_databox_ruler_set_text_orientation | ( | GtkDataboxRuler * | ruler, |
| GtkOrientation | orientation | ||
| ) |
gtk_databox_ruler_set_text_orientation: : a GtkDataboxRuler : new orientation of the tick marks in the vertical ruler
Sets the text orientation of the (vertical).
