openvrml::vrml97_node::switch_node Class Reference

Switch node instances. More...

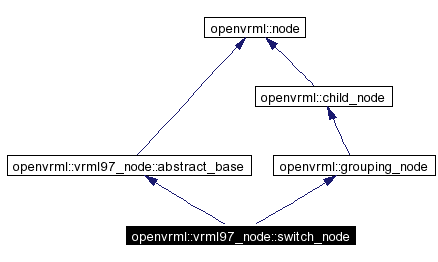

Inheritance diagram for openvrml::vrml97_node::switch_node:

[legend]Collaboration diagram for openvrml::vrml97_node::switch_node:

[legend]List of all members.

Public Member Functions
	switch_node (const node_type &type, const scope_ptr &scope)
	Construct.
virtual	~switch_node () throw ()
	Destroy.
virtual bool	modified () const
	Determine whether the node has been modified.
virtual void	render (openvrml::viewer &viewer, rendering_context context)
	Render the node.
virtual const openvrml::bounding_volume &	bounding_volume () const
	Get the bounding volume.
virtual const std::vector< node_ptr > &	children () const throw ()
	Get the children in the scene graph.
virtual void	activate (double timestamp, bool over, bool active, double *p)
Private Member Functions
void	process_set_choice (const field_value &value, double timestamp) throw (std::bad_cast, std::bad_alloc)
	set_choice eventIn handler.
void	process_set_whichChoice (const field_value &value, double timestamp) throw (std::bad_cast)
	set_whichChoice eventIn handler.
virtual void	recalcBSphere ()
	Recalculate the bounding volume.
Private Attributes
mfnode	choice
	choice exposedField.
sfint32	whichChoice
	whichChoice exposedField.
mfnode	children_
	The children currently in the scene graph.
bounding_sphere	bsphere
	Cached copy of the bsphere enclosing this node's children.
Friends
class	switch_class
	Class object for Switch instances.

---

Detailed Description

Switch node instances.

---

Constructor & Destructor Documentation

openvrml::vrml97_node::switch_node::switch_node (  const node_type &  type, const scope_ptr &  scope )

Construct. Parameters: type  the node_type associated with the node instance. scope  the scope to which the node belongs.

---

Member Function Documentation

void openvrml::vrml97_node::switch_node::activate (  double  time, bool  isOver, bool  isActive, double *  p )  [virtual]

Pass on to enabled touchsensor child. Implements openvrml::grouping_node.

const bounding_volume & openvrml::vrml97_node::switch_node::bounding_volume (   )  const [virtual]

Get the bounding volume. Returns: the bounding volume associated with the node. Reimplemented from openvrml::node.

const std::vector< node_ptr > & openvrml::vrml97_node::switch_node::children (   )  const throw () [virtual]

Get the children in the scene graph. Returns: the child nodes in the scene graph. Implements openvrml::grouping_node.

bool openvrml::vrml97_node::switch_node::modified (   )  const [virtual]

Determine whether the node has been modified. Returns: true if the node or one of its children has been modified, false otherwise. Reimplemented from openvrml::node.

void openvrml::vrml97_node::switch_node::process_set_choice (  const field_value &  value, double  timestamp )  throw (std::bad_cast, std::bad_alloc) [private]

set_choice eventIn handler. Parameters: value  an mfnode value. timestamp  the current time. Exceptions: std::bad_cast  if value is not an mfnode. std::bad_alloc  if memory allocation fails.

void openvrml::vrml97_node::switch_node::process_set_whichChoice (  const field_value &  value, double  timestamp )  throw (std::bad_cast) [private]

set_whichChoice eventIn handler. Parameters: value  an sfint32 value. timestamp  the current time. Exceptions: std::bad_cast  if value is not an sfint32.

void openvrml::vrml97_node::switch_node::render (  openvrml::viewer &  viewer, rendering_context  context )  [virtual]

Render the node. The child corresponding to whichChoice is rendered. Nothing is rendered if whichChoice is -1. Parameters: viewer  a Viewer. context  a rendering context. Reimplemented from openvrml::node.
