QStyleOptionToolBar Class Reference
[QtGui module]

The QStyleOptionToolBar class is used to describe the parameters for drawing a toolbar. More...

Inherits QStyleOption.

Types

Methods

Members

Static Members


Detailed Description

The QStyleOptionToolBar class is used to describe the parameters for drawing a toolbar.

The QStyleOptionToolBar class holds the lineWidth and the midLineWidth for drawing the widget. It also stores information about which area the toolbar should be located in, whether it is movable or not, which position the toolbar line should have (positionOfLine), and the toolbar's position within the line (positionWithinLine).

In addition, the class provides a couple of enums: The ToolBarFeature enum is used to describe whether a toolbar is movable or not, and the ToolBarPosition enum is used to describe the position of a toolbar line, as well as the toolbar's position within the line.

For an example demonstrating how style options can be used, see the Styles example.

See also QStyleOption.


Type Documentation

QStyleOptionToolBar.ToolBarFeature

This enum is used to describe whether a toolbar is movable or not.

Constant Value Description
QStyleOptionToolBar.None 0x0 The toolbar cannot be moved. The default value.
QStyleOptionToolBar.Movable 0x1 The toolbar is movable, and a handle will appear when holding the cursor over the toolbar's boundary.


The ToolBarFeatures type is a typedef for QFlags<ToolBarFeature>. It stores an OR combination of ToolBarFeature values.

See also features and QToolBar.isMovable().

QStyleOptionToolBar.ToolBarPosition

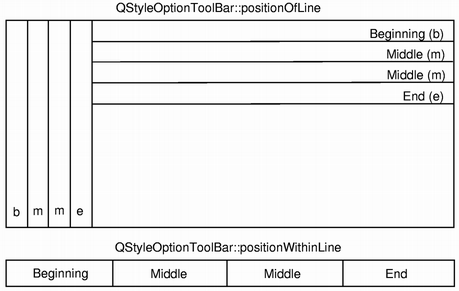

This enum is used to describe the position of a toolbar line, as well as the toolbar's position within the line.

The order of the positions within a line starts at the top of a vertical line, and from the left within a horizontal line. The order of the positions for the lines is always from the the parent widget's boundary edges.

Constant Value Description
QStyleOptionToolBar.Beginning 0 The toolbar is located at the beginning of the line, or the toolbar line is the first of several lines. There can only be one toolbar (and only one line) with this position.
QStyleOptionToolBar.Middle 1 The toolbar is located in the middle of the line, or the toolbar line is in the middle of several lines. There can several toolbars (and lines) with this position.
QStyleOptionToolBar.End 2 The toolbar is located at the end of the line, or the toolbar line is the last of several lines. There can only be one toolbar (and only one line) with this position.
QStyleOptionToolBar.OnlyOne 3 There is only one toolbar or line. This is the default value of the positionOfLine and positionWithinLine variables.


See also positionWithinLine and positionOfLine.


Method Documentation

QStyleOptionToolBar.__init__ (self)

Constructs a QStyleOptionToolBar. The members variables are initialized to default values.

QStyleOptionToolBar.__init__ (self, QStyleOptionToolBar other)

Constructs a copy of the other style option.


Member Documentation

ToolBarFeatures features

This variable holds whether the toolbar is movable or not.

The default value is None.

int lineWidth

This variable holds the line width for drawing the toolbar.

The default value is 0.

int midLineWidth

This variable holds the mid-line width for drawing the toolbar.

The default value is 0.

ToolBarPosition positionOfLine

This variable holds the position of the toolbar line.

The default value is QStyleOptionToolBar.OnlyOne.

ToolBarPosition positionWithinLine

This variable holds the position of the toolbar within a line.

The default value is QStyleOptionToolBar.OnlyOne.

Qt.ToolBarArea toolBarArea

This variable holds the location for drawing the toolbar.

The default value is Qt.TopToolBarArea.

See also Qt.ToolBarArea.

int Type

This member should be treated as a constant.

int Version

This member should be treated as a constant.
